I created an ams compatible version that includes various sizes of metric hardware ranging from M2 to M8, and includes:

Screws
Nuts
Washers
Threaded Inserts
Set Screws

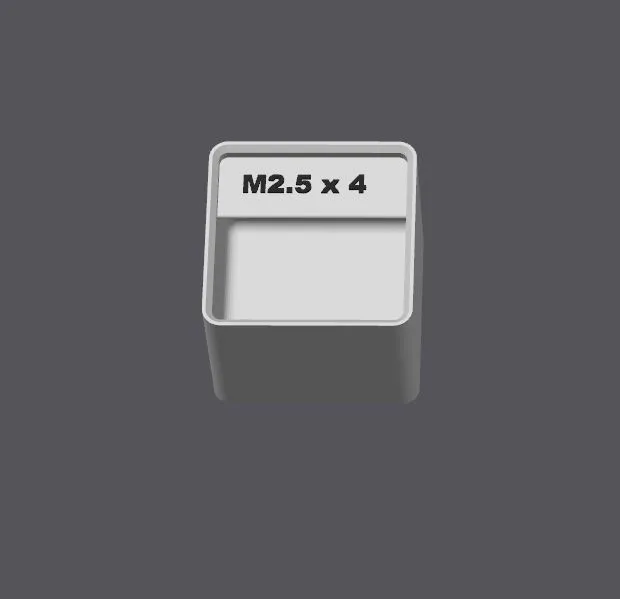

All bins are stackable, labeled and 5u tall. They are 1x1 in size, but if the screw length is greater than 30mm, I've added also a bigger bin (1x2). Also other lengths have a double bin, you have to check which one.

If you want to reduce the number of filament changes (currently is 4, so the bins have a nicer finish), you can just change the layer height for the print to 0.24 or 0.28.

These are the current available sizes:

Screws:

Length (mm)

Size

✅

M2.5

✅

M3 SS

✅

		Length (mm)
		30	35	40	45	50
Size	M2
	M2.5
	M3	✅	✅	✅	✅	✅
	M4	✅	✅		✅
	M5	✅	✅	✅		✅
	M6	✅	✅	✅
	M8	✅	✅	✅	✅	✅

Nuts & Washers:

		Nuts					Washers
		‘Nuts’	HEX	LN	JAM	NYLOC	FW	LW	SW	SSW	CW
Size	M2	✅	✅				✅	✅	✅	✅	✅
	M2.5	✅	✅				✅	✅	✅	✅	✅
	M3	✅	✅	✅	✅	✅	✅	✅	✅	✅	✅
	M4	✅	✅				✅	✅	✅	✅	✅
	M5	✅	✅				✅	✅	✅	✅	✅
	M6	✅	✅				✅	✅	✅	✅	✅
	M8	✅	✅				✅	✅	✅	✅	✅

Name specification of washers:

FW: Flat Washers
LW: Lock Washers
SW: Split Washers
SSW: Split Lock Washers
CW: Countersunk Washers

Threaded Inserts:

		Length (mm)
		3	4	5.7	5.8	6.35	6.8	8.1	9.5	12.7
Size	M2	✅	✅	✅
	M2.5		✅
	M3	✅	✅	✅
	M4		✅			✅		✅
	M5				✅				✅
	M6						✅			✅
	M8									✅

If some sizes that you need are missing, just let me know and I'll upload them as soon as possible!
