Why pay $25 bucks for an inferior product delivered by snail mail when you can print your one in less time, at a lower cost, and spend that money on extra filament? ADHD seldom derives benefits like this!

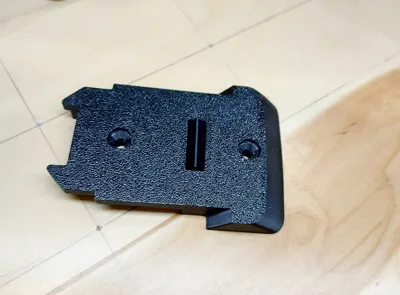

This DEWALT tool stealth mount has a low profile for a fast print time, and a latch with a satisfying “click” every time you replace and withdraw the tool.

Boost Me (for free)

Your Boost's encourages designers to share quality models. Please use them to support your favourite designed.

For easy - “click” in and secure latch, arrange the clip in the orientation shown below. (it works the other way too) If your 3DP DEWALT tool mount doesn't have a “clicky” latch like this, you’re missing out if you haven't printed this one!

For tools with the proprietary tab, you’ll need to print the baseplate to get the necessary tab clearance. (the baseplate is optional and unnecessary for most tools.)

Select the appropriate fasteners (I screwed into 1/2” plywood with equivalent fasteners suggested below.)

Suggested fasteners: #8 x 3/4-in Flat Head Wood Screw - or- Countersunk Flat Head Self-tapping/wood Screw M4 x 20 (You’ll need an extra 3mm longer screw with optional baseplate or just drill out 3mm from the countersink when using the baseplate and use the same 3/4” or 20mm screw to get a good screw bite.)

#6 screw will work well too.

Membership

If you'd like to support my design work or sell this model, please consider subscribing to my commercial licence.

Join

Print Notes: For some printers and filaments, it may be necessary to add a brim to the thin wedge of the clip. (the profile ratings suggest it's the exception, not the rule.
