Description

🎁 Join my Patreon for exclusive models, sneakpeeks, votes for my next design, and a commercial license to sell prints of my model kits! Kit Crafters' Patreon💎

The Spear Launcher is the first unit in my Action Mech series. The Spear Launcher has 2 spearguns that can launch spears up to 20 feet! It's easy to load and easy to launch and packs quite a punch.

The Spear Launcher features 19 parts that form 8 moving joints.

The non 3D-printed parts come from the Maker's Supply Beginner's Kit:

2x - 0.5x5x25 mm Helical- Compression Spring

As always, this model kit features snap-fit joints, no supports, no glue required, and works with PLA.

Below is a link to my Patreon where you can see sneak peeks, prototypes, and polls for upcoming designs! My design catalogue keeps growing and growing and I'm very thankful to all of you that support me here on MakerWorld and on Patreon. Thank you for your support, engagement, and kind words!

Vote On and Preview My Next Mechas on Patreon (Free)

Assembly Guide

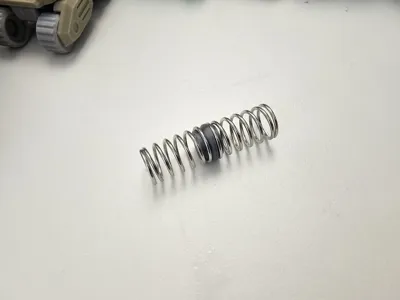

Insert Spring

Bill of Materials

Maker’s Supply Kits and Parts

Maker's Beginner Kit - ZC002

B-ZC002

10.99 USD

× 1

0.5x5x25mm Helical Compression Spring (5PCS) - BB004

B-BB004

1.09 USD

× 1

Bambu Filaments

Ash Gray

A01-D3-1.75-1000-SPLFREE

19.99 USD

× 1

Marine Blue

A01-B3-1.75-1000-SPLFREE

19.99 USD

× 1

Buy Now

Download BOM
