Bricks compatible marble run for marbles up to 12 mm diameter.

The marble run is compatible with all popular manufactures of bricks (for example the well known company from denmark).

I just put one piece of each part into the print profile. You have to multiply the needed parts by yourself.

The marble run contains the following parts:

Dimensions: 02x02 (Standard Print Profile)

Start Tower
Start and End
Straight
Straight with slope
Curve
Curve with slope to left
Curve with slope to right
Crossing
Tunnel (Turn model to the side and enable support)
Tunnel with a curve (Turn model to the side and enable support)

Dimensions: 02x03 (Standard Print Profile)

Straight
Straight with slope

Dimensions: 02x04 (Standard Print Profile)

Straight
Straight with slope

Dimensions: 02x06 (Standard Print Profile)

Straight
Straight with slope

Dimensions: 03x03 (Standard Print Profile)

Curve
Curve with slope to left
Curve with slope to right

Dimensions: 04x04 (Standard Print Profile)

Curve
Curve with slope to left
Curve with slope to right
Straight with curve to right
Straight with curve to left
X-Crossing
2 to 1

Dimensions: 04x06 (Standard Print Profile)

Curve to left an right
Straight and Curve to left an right

Dimensions: 06x06 (Standard Print Profile)

Catching Tray with opening in the middle
Catching Tray with opening on the left side
Catching Tray with opening on the right side

Dimensions: 08x08 (Standard Print Profile)

Wormwhole with opening on the left side
Wormwhole with opening on the right side

Flex Tracks (Standard Print Profile - Print with TPU)

02x12 - Flex Track
02x16 - Flex Track
02x20 - Flex Track

Speedup-Hammer (Strength Print Profile)
Give your marble new speed.

Hammer_Station - The base for the hammer
Hammer_Halter - The connector for the basement and hammer
Hammer_Hammer_EU - For EU 2 Cents coins
Hammer_Hammer_US - For US 1 Cent coins

Switch (Standard Print Profile)
Change the direction of the marbles. The marbles must not be too fast.

04x06_Switch_Bottom
04x06_Switch_Top

Multistart (Standard Print Profile)
Start at the same time with up to 4 marbles.

Multitsart_Bottom
Multistart_Top

Gauss Canon & Looping (Strength Print Profile)
Give your marble new speed.

02x06_GaussCanon_3mm (Part-List: 1x B-CA010)
02x06_GaussCanon_6mm (Part-List: 2x B-CA010) - Very Strong
Looping (Works only together with the Gauss Canon - 6mm)

Transfer (Standard Print Profile)
You can adjust the length of the connector yourself in your slicer (only change the X-axis)

Transfer_Bottom
Transfer_Middle
Transfer_Connection - You can adjust the length yourself in your slicer (only change the X-axis)
Transfer_Connection_2 - You can adjust the length yourself in your slicer (only change the X-axis)
Transfer_Top

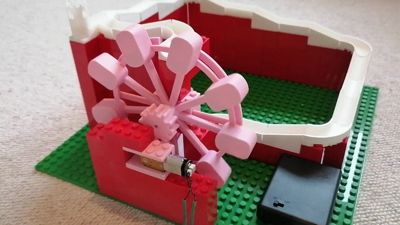

Ferris Wheel: Bring your marbles back to the top

Ferris Wheel & Parts (Standard Print Profile)
Ferris Wheel motor upgrade (Strength Print Profile)
Part-List: 1x B-LA008, 1x B-XC004, 1x B-IA004

Bill of Materials

Maker’s Supply Kits and Parts

10PCS 10mm Stainless Steel Balls - FA006

B-FA006

2.19 USD

× 1

N20 Single Shaft Worm Gear Motor 25rpm (1PCS) - LA008

B-LA008

7.99 USD

× 1

50mm PH2.0 to SH1.0 Conversion Wire (2PCS) - XC004

B-XC004

1.08 USD

× 1

AAA Battery Case with PH2.0 Connector (1PCS) - IA004

B-IA004

2.19 USD

× 1

D12x3mm Round Magnet (20PCS) - CA010

B-CA010

3.99 USD

× 1

Buy Now

Download BOM

Comment & Rating (28)

@user_4255189501

Boosted

Print Profile

Marble Run

Repeat issues making the tunnels where the roofs have issues or those pieces pop of the plate but other pieces look and work great, thanks!

The profile uploader has replied

@Knispel

I know the problem. >> Turn model to the side and enable support.

@mr.f

Boosted

Print Profile

Marble Run

really nice work, I printed many already. since our marble standard size is 16mm, I created my own version of this for a standard lego size of 3 dots. that supports now 16mm marbles. maybe I upload it here as well, we will see. the collection is quite small currently and still in development. In the picture, the white ones are for wider space.

@pbgran

Boosted

great print! all worked really well with the real bricks!

@sherzberg

This is awesome, my kids and I are printing pieces now! @Knispel have you uploaded the Flex Track pieces or did I miss them?

The designer has replied

@Knispel

Ooops, I didn't add the flex track as raw files, I just packed them into the print profile. I have now added them as raw files. Thanks for the info. Please note that the Flex Tracks are only cool, if you print them with TPU.

@sherzberg

Replying to @Knispel :

@Knispel perfect, thank you!

@Knispel

That is the next thing I will add to the marble run as soon as possible.

(Edited)

@user_1268995492

Boosted

Print Profile

Marble Run

Absolutely fantastic Thank you

The profile uploader has replied

Show original

@Knispel

Thank you for the boost ;-)

Show original

@mr.f

Boosted

it fits good to the unnamed stones, marbles run good

The designer has replied

@Knispel

;-)

@DumpsterKun

Boosted

for some reason the tunnel pieces start printing spaghetti at some point for me - most of them have failed. might be a bed adhesion issue. Love the tracks though!

The designer has replied

@Knispel

Try to lay the tunnels on their side and activate support. This could help and thank you for the boost .

(Edited)

@SimilarBark2244

Boosted

Print Profile

Marble Run

Very good, thank you.

@3dgodmah

Print Profile

Marble Run

good

@Aserion

Great idea! With my son finally being old enough for Legos and his fascination with marble runs, he will love this.
