Description

This is my newly designed multi-functional clip. Its quick-lock mechanism supports locking at any opening degree, allowing you to easily clamp thick objects. The optimized toothed structure provides a tight grip.
The V2 version use elastic clamping tooth, which support apply pre-tightening force and then be locked, offers strong clamping.
The internally hidden anti-slip teeth design offers stable and powerful locking.

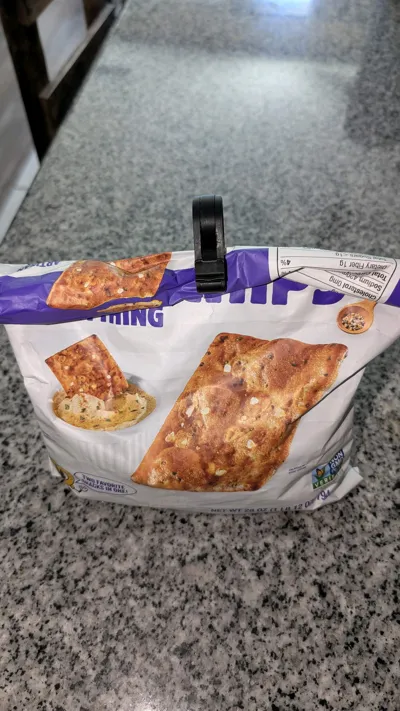

As a multi-functional clip, it can be used as a bag clip for sealing snacks, a clothes peg, a bed sheet fixing clip and so on. More uses are waiting for you to discover!

It is printed in one piece without supports. It is recommended to use PETG for printing to achieve better strength.

Four sizes are preset:

S: The original size is scaled to 70%.

M: The original size is scaled to 80%.

L: The original size is 100%.

XL: The original size is scaled to 120%.

=======================================================================================

Feel free to check out my another clip, it has extremely strong clamping force.

Vise-Style Ultra-Strong Clamp

Comment & Rating (282)

@Joywent

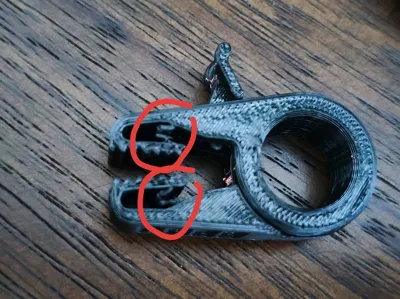

The elastic clamping teeth can better grip smooth and hard objects, and are applicable in a wider range of scenarios.

GIF

@bbrenner2217

Print Profile

XL size (locking lever redesign, easier to open)

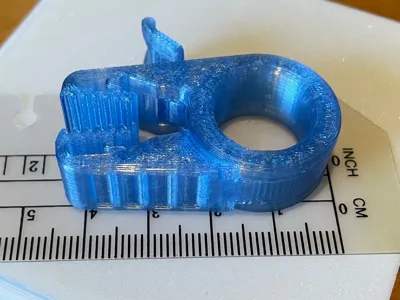

these are one of those prints that you take off the bed, start looking over and playing with, and think to yourself "wow this is really well designed, this should be a retail product or something!" I mean it's just a clip but it's awesome, and you could tell a good deal of thought and precision went into its design! Printed mine out of CoPE, so similar strength and flexibility to PETG like the designer p recommended, and it's working fantastic!

@Joywent

Thank you for the great review! If you check out my main page, you'll find another interesting clip. It not only provides locking but also offers a strong holding power.

@guy38

I wish the locking lever had a bit more of a lip on it. It's pretty much impossible to get a finger tip under it to release. I have to use a screwdriver tip. On the plus side, these have tremendous grip.

The designer has replied

@Joywent

Thanks for your suggestions. I'll make optimizations regarding the problems you mentioned later. I'll upload the printing configuration after I conduct the tests.

@PuzMaker2024

Boosted

Print Profile

4 sizes in one (locking lever redesign, easier to open)

Hard to open the XL version, but this is an excellent model. Thanks for sharing.

@chapapa

Print Profile

Medium size (locking lever redesign, easier to open)

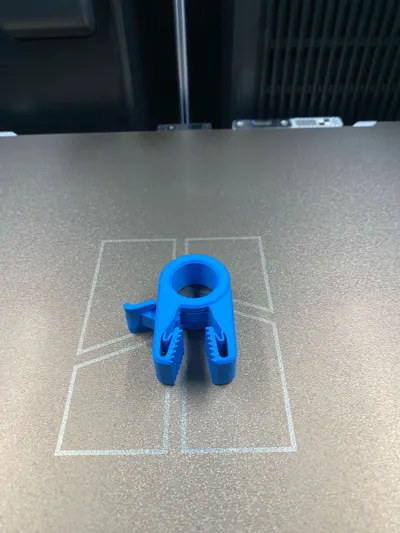

Easy to print and works right off the printing plate.

@Orionsf5

Print Profile

Medium size (locking lever redesign, easier to open)

printed nice but I can’t get a tight grip

@user_1535676850

Print Profile

4 sizes in one (locking lever redesign, easier to open)

Truly an excellent well engineered print

@chupz

Boosted

Print Profile

Medium size (locking lever redesign, easier to open)

Quite strong, excellent design Thank you 5 stars

Show original

@ilBigo

Print Profile

4 sizes in one (locking lever redesign, easier to open)

Well designed, congratulations

Show original

@user_3013541971

Print Profile

Medium size

P1S in PETG works well Thank you for sharing

Show original
