Pottery Trim Tower by Geoff

Geoff

Hobby & DIY>Other Hobby & DIY

IP Report

Print Profile(1)

All

X1 Carbon

P1S

P1P

X1E

0.2mm layer, 3 walls, 15% infill

Designer

32.1 h

9 plates

4.5(2)

Open in Bambu Studio

Boost

Released

Description

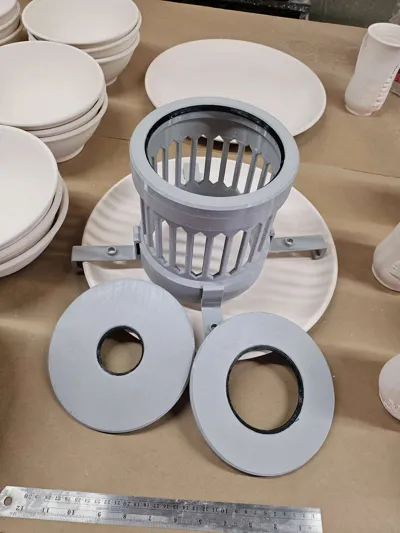

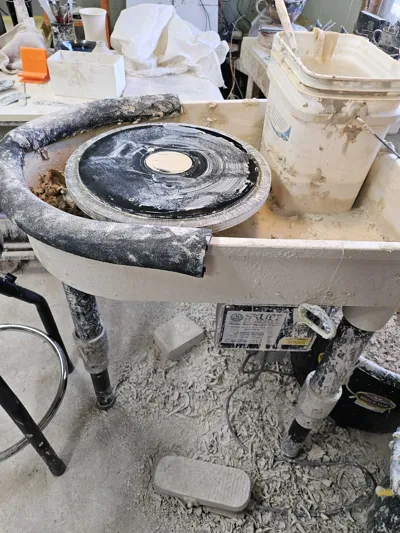

It's made for a 12" wheel that is 1.2" thick on the outer edge, with 3/8" diameter pegs that are 10" apart on center. Print the two different lids for two different sized openings. CAD file is included if you want to try to monkey with it to make other sizes. I sized the openings to fit two fat orings that I found on Amazon. I took photos of the labels so you can see their specs.

Note: Just added a third lid for bigger pieces. uses an oring that is 0.275" thick, 6.025" OD from Amazon.

pottery

ceramics

pottery tool

Comment & Rating (17)

@user_1091062114

how hard would it be to modify this for a 11” & 14.25” wheel?

The designer has replied

@geoff.deane

easy… I think it’s just different arm lengths and pin location. Tell me a bit more and I’ll rip it out for you. (A) diameter of your wheel; (B) thickness of the outside edge of your wheel; (C) center-to-center distance between the pegs on the surface; and (D) diameter of the pegs themselves.

@geoff.deane

I just uploaded modified arms for those wheel diameters. LMK if the pegs arent 0.375" diameter and 10" apart, or if your wheel isn't 1.2" thick. 5 minutes to modify.

@user_1091062114

Replying to @geoff.deane :

Thanks Geoff! I will give it a try and let you know. if the measurements are different I will post them here. Do you know how I access the other files? I see the main file but when I click on “print” it appears to only be the main tower and not the arms / tops. I am new to this so I am sure the mistake is on my part.

@user_2135250917

Hi Geoff, If it's not too much trouble, can you add a version for a 14" wheel. Pins are the standard 10" on center. Thanks so much.

The designer has replied

@geoff.deane

Added a new plate with the arms for 14" plate. Think I may make arms that are adjustable... didnt realize there were so many variants!

@user_2135250917

Replying to @geoff.deane :

Thanks very much! Adjustable arms is a great idea!

(Edited)

@geoff.deane

Replying to @user_2135250917 :

good luck with the print and with the pottery. Please lmk if you see ideas for how to improve it.

@xthursdayx

Boosted

Print Profile

0.2mm layer, 3 walls, 15% infill

@geoff.deane

thanks for the boost! Glad you enjoyed the model. Good luck with the pottery!

@user_4276418224

Boosted

Print Profile

0.2mm layer, 3 walls, 15% infill

@geoff.deane

Thanks for giving it a go... you see anything that needs improvement or upgrading? I made it for my wife - printed fine and she has used it a bunch, but the CAD model is really easy to modify if you have ideas.
