Herringbone Gear Phone Stand Pork3D by Pork3D.com by Pork3D

Pork3D

Household>Office

Print Profile(4)

All

X1E

P1S

P1P

X1 Carbon

A1 mini

0.2mm layer, 2 walls, 15% infill

Designer

5.2 h

1 plate

4.8(67)

Mod with Spring for the locking mechanism

8.3 h

3 plates

5.0(31)

0.2mm layer, 2 walls, 10% infill

5.7 h

1 plate

4.6(16)

Gear added structure, easier to pull out

7.2 h

3 plates

Open in Bambu Studio

Boost

660

1127

181

201

2.4 k

941

Released

Description

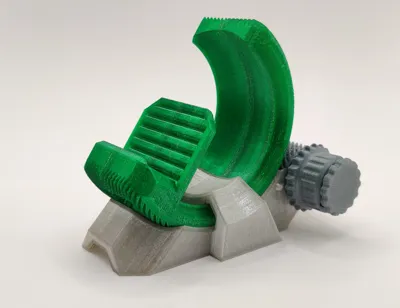

The Herringbone Gear Phone Stand is a 3D-printable, support-free design that combines functionality with creativity. Featuring a herringbone gear system and a turn-slide lock mechanism, this stand allows for precise angle adjustments while securely holding your smartphone. Perfect for hands-free use, it’s an innovative addition to any workspace or home.

Key Features:

Support-Free Design: Easy to 3D print without requiring support structures.
Herringbone Gears: Provides smooth, reliable, and precise angle adjustments.
Turn-Slide Lock Mechanism: Ensures a secure hold and effortless customisation of viewing angles.
Universal Compatibility: Fits most smartphones, making it versatile and practical.

Printing
No supports needed

PLA_E7_99_BD_E8_89_B2.webp [webp-to-jpg output image]

Big thank you to Chitu Systems for sponsoring the PLA+ for this print.

Comment & Rating (181)

@shay

Boosted

Great model. Using the Bambu slicer I was able to modify the pattern to add a spring. The spring I used was from a pen I had on hand. The spring size is 4,3 mm in diameter and 25 mm long. It turned out great. The periphery of the screw is larger to hold the spring better. I am uploading the profile for those who want to use this mod.

The designer has replied

@pork3D

Love it! Thankyou for sharing!

@xuchao

I printed using your file, perfect

Show original

@BONus

how to download file mod

@user_508734736

Print Profile

0.2mm layer, 2 walls, 15% infill

can wait to build it

@pork3D

Nice and bright filament choice!

@yaoyaun

Replying to @pork3D :

Hey! I truly appreciate your design aesthetic. Might I suggest a minor refinement? I believe incorporating a worm gear mechanism for the stand would lend it a self-locking unidirectional attribute, eliminating the need for added springs

Show original

@pork3D

Replying to @yaoyaun :

Translate is not working well on your comment. Can you send me a link to your idea? I do not follow sorry.

@SuniSt

Boosted

Superb creation, just like versions 1 and 2 However, I found the locking mechanism a little too loose and unreliable, so I added a 4mm diameter spring I had on hand I think a 2mm spring would be more suitable as it wouldn't protrude from the screw head PETG print

The designer has replied

Show original

@pork3D

Great mod! Now I have to work out how do to this as a 3D print.

@user_1851899712

Could you share your remixed work, please

Show original

@SuniSt

Boosted

Replying to @user_1851899712 :

Hello My apologies, but I am quite inept at 3D modeling I made this modification using a drill and a pen spring 😅

Show original

@momentvm

Boosted

Well done my friend! The gear works as smooth as butter!!

@reciclatec

Boosted

Excellent model, the spring option makes it very convenient for heavy phones with big armor or covers. Printed with recycled filaments from PET bottles (7up, Coca cola, and 911 energy drink)

The designer has replied

@pork3D

Impressive! Where can I find out more about the recycled filament?

@reciclatec

Boosted

Replying to @pork3D :

We make it with several machines and methods from PET bottles, there are several "pulltruders" as we call them like the PETmachine from @tylmandesign or the @recreator3D.

@Kady3DPrinting

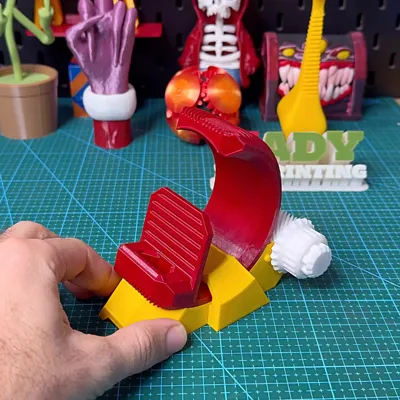

My make https://kady3dprinting.com/model/3d-printed-herringbone-gear-phone-stand

The designer has replied

@pork3D

Thank you for sharing to your big audience! My I ask, do you do this full time?

@Roboto88

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Thanks for This:)

@DIYWizard

Print Profile

0.2mm layer, 2 walls, 15% infill

Great design, thanks for uploading!

@pork3D

Thankyou! You have "Lock Slider 001.stl" facing the wrong way, it turns and locks with that little knob sticking out.

@Adaho0

Print Profile

0.2mm layer, 2 walls, 15% infill

Really nice print

@macRush

Great model. Printer Alfawise U30 , PLA

License

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
