Rotating drawers desk organizer with 4 drawers by SaVo3D

SaVo3D

Tools>Organizers

Print Profile(4)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

0.2mm layer, 3 walls, 15% infill

Designer

24.7 h

7 plates

5.0(2)

top with tree of life inlay

Designer

3.7 h

1 plate

5.0(1)

top without inlay

Designer

2.9 h

1 plate

5.0(1)

A1mini - 0.2mm layer - 3 walls - 15% infill

Designer

14 h

5 plates

5.0(1)

Open in Bambu Studio

Boost

167

227

179

Released

Description

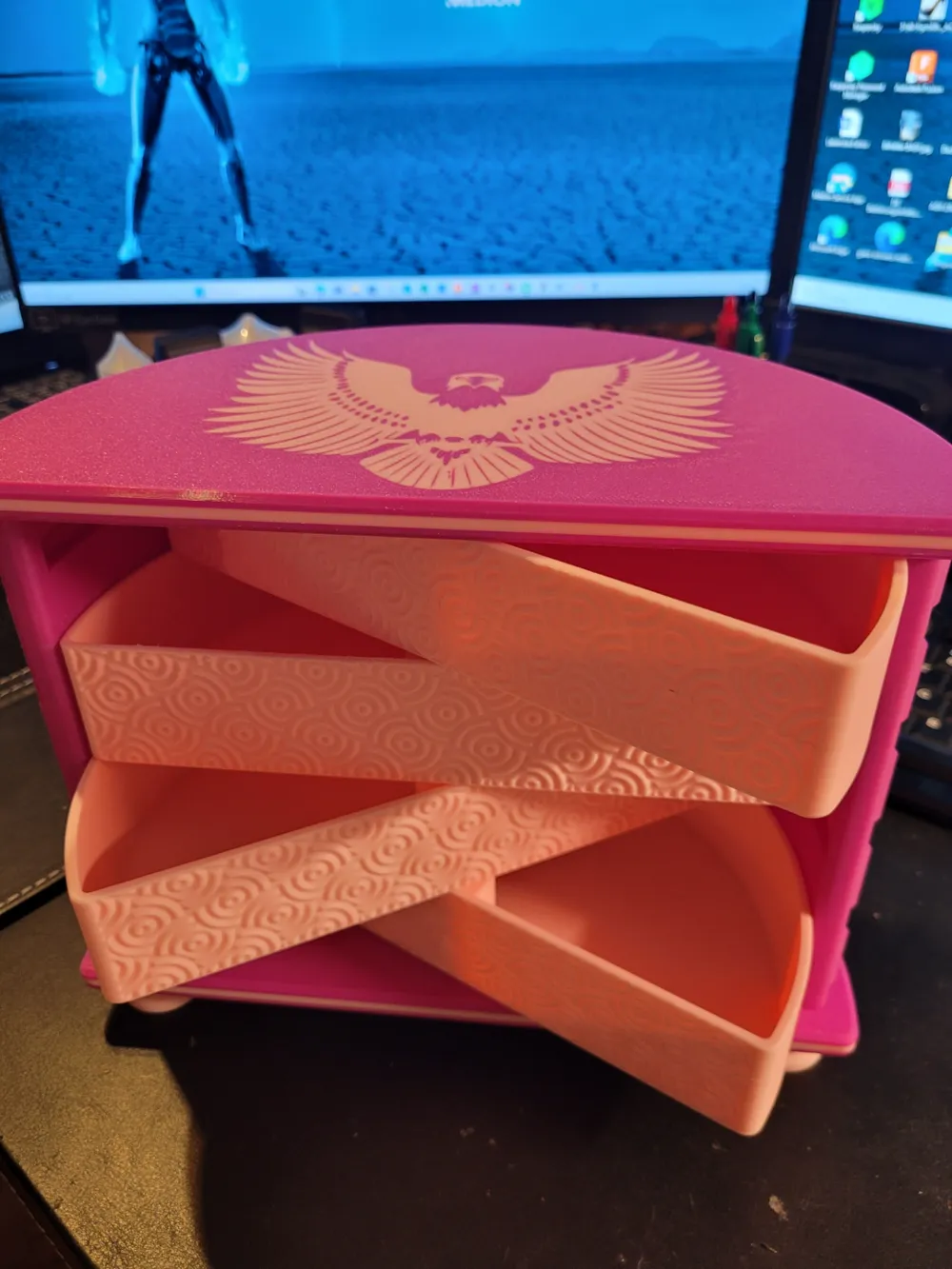

This is my rotating drawer desk organizer with 4 drawers!

This organizer is a nice piece to display the beauty of 3d printing!

The model is deliberately designed to achieve a certain weight to make it stable so that it does not slide around on the table.

The model consists of:

Feet (4pcs).
Bottom (1pc.)
Housing (1pc.)
Peg for Axis of drawer 1 (1pc.)
Axis for drawer 1 (1pc.)
Axis for drawer 2-3 (2pcs.)
Axis for drawer 4 (1pc.)
Drawer 1 and 3 (2pcs.)
Drawer 2 and 4 (2pcs.)

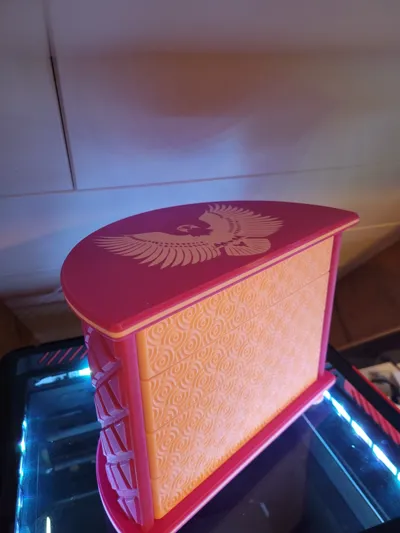

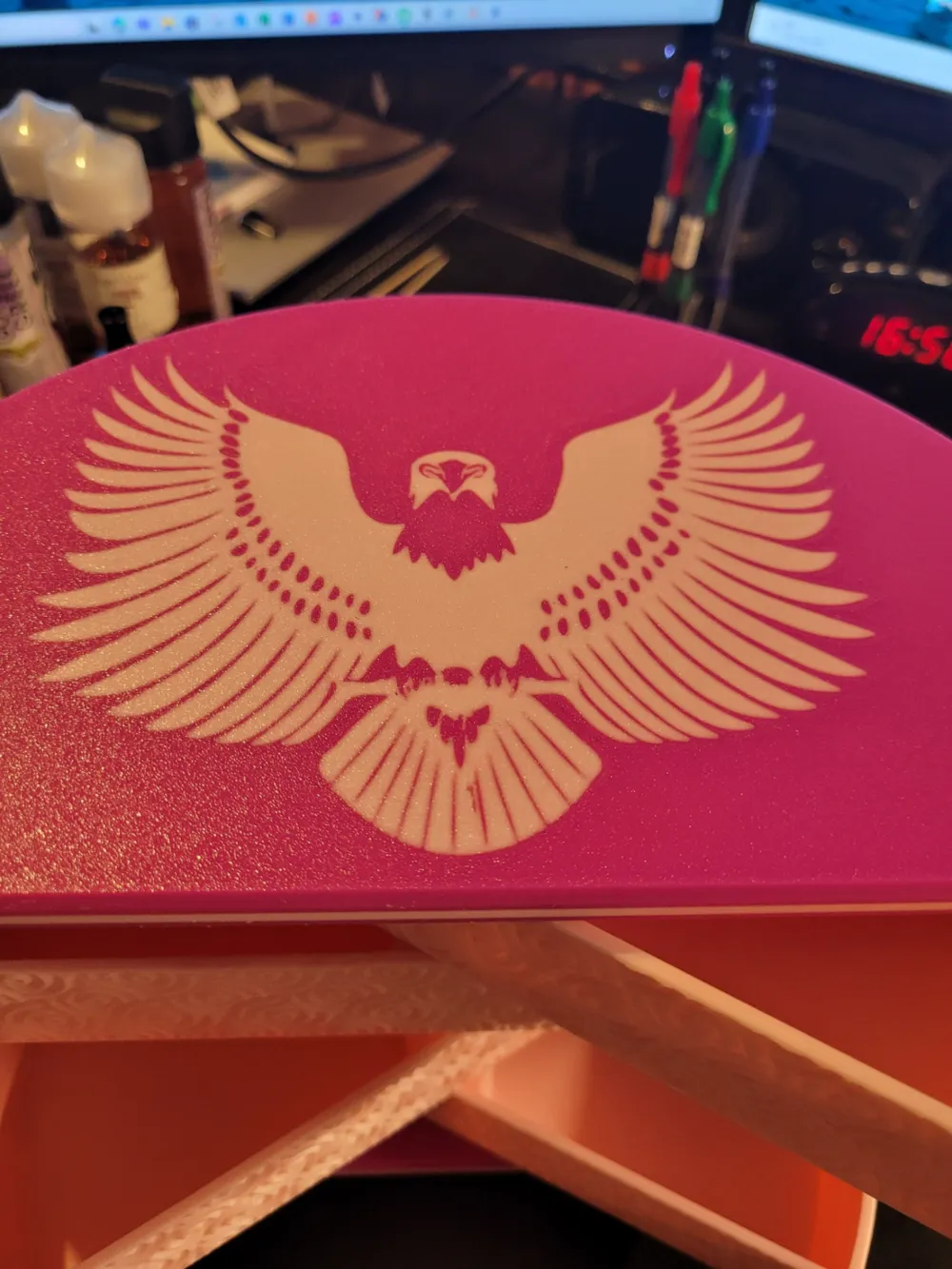

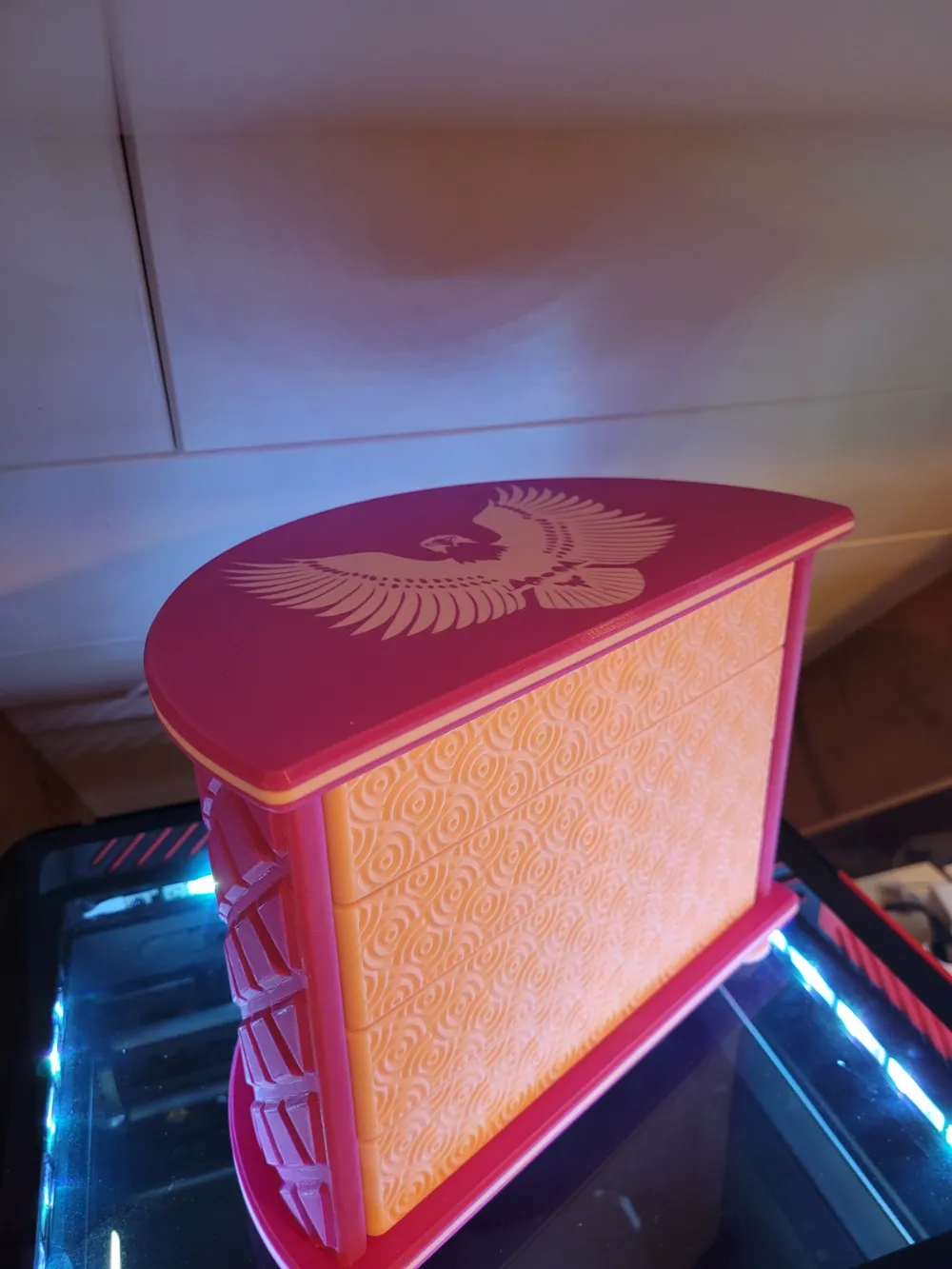

Top with eagle inlay or tree of life inlay or without inlay (1pc.)

Print Profile Information:

The print profile contains all possible parts plus top with eagle inlay. The two other top versions you can choose of, can be found in the additional print profiles.

You can be creative by colorizing the model as you like it the most! Show me your beautiful color combinations that you have printed!

Needed Tools:

screwdriver to install the axis
your preferred glue

Assembling:

Please read the assembly instructions!

Recommended filament:

PLA or PETG depending on what you have.

I printed the model with PLA.

Hotend: 0,40mm

Print instructions for PLA (my print profile is set up like this):

layer height 0,20mm
3 wall loops
top/bottom shells 4 layers
top/bottom shell thickness 0,80mm
infill 15%
sparse infill pattern “gyroid”
Enable support type “normal”, style “default” to support the guiding peg of the drawers

Before printing, make sure your build plate is clean and apply some adhesive. Wash the build plate with oil free soap and wipe it off with some paper towels. For build plate adhesion, apply a thin, even coat of your preferred adhesive. I repeat the process every 5-6 prints.

Bad build plate adhesion is not related to the model.

Take a look at my other models https://makerworld.com/en/u/1597610120

Please leave me a like and a decent rating if you were satisfied, thank you in advance!
