We have amassed a considerable collection of minifigures from various manufacturers.

We believed a grandstand would be a magnificent addition and have already discovered several appealing models.

However, our reasons for designing a new grandstand are as follows:

It should accommodate as many figures as possible.
Figures should be able to both stand and sit.
The seating rows should be curved, not simply straight.
A single seating row should be usable independently.
Minimally necessary individual components.
Minimal support structures for the side panels.
Robust construction for easy transportation and play.
Simple assembly and disassembly when needed.
No gluing or screwing required.

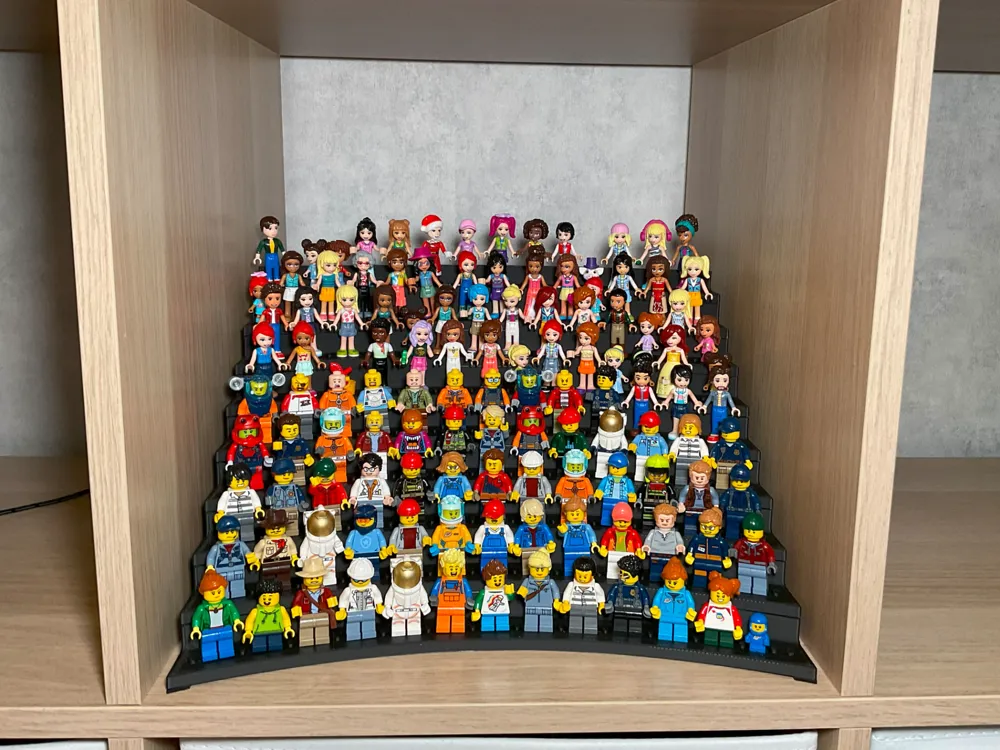

It should fit within an IKEA Kallax shelf compartment.

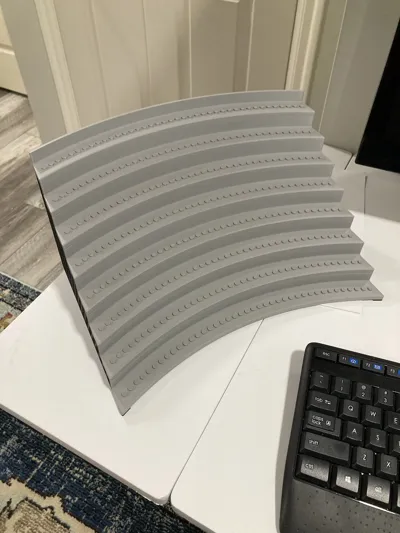

The result is this grandstand, capable of holding 90 (maximum 117, depending on spacing) figures.

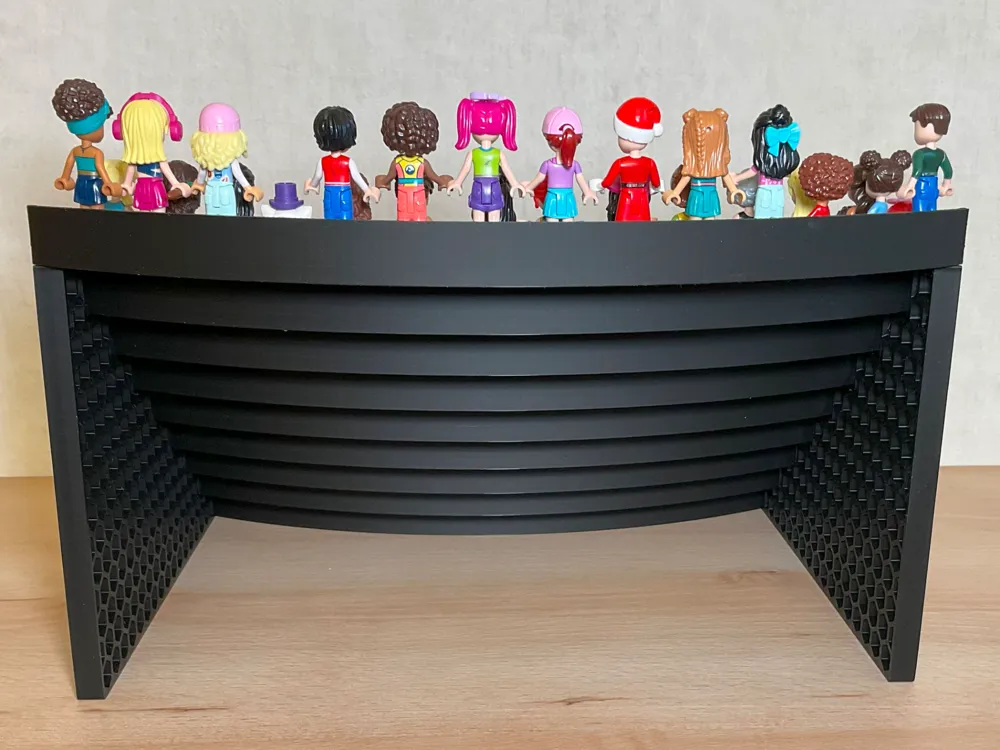

It comprises two side panels onto which 9 identical seating/standing rows can be attached.

Each seating row can accommodate up to 13 figures.

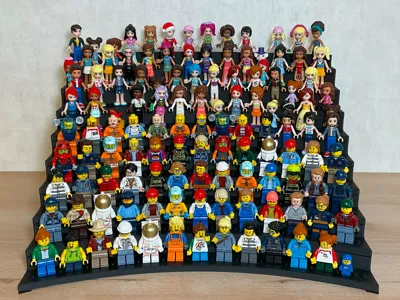

The assembled grandstand measures 320 mm wide, 182 mm high, and 275 mm deep.

Nine pieces are required from the first print plate.

Only one piece each is needed from the second and third print plates, containing the left and right side panels respectively.

The grandstand is exceptionally stable with its two outer side panels, eliminating the need for additional supports.

For enhanced stability, the individual seating rows slightly overlap. Begin assembly with the bottom row, then progressively add the subsequent rows above.

Edit 2024-12-21:

Additional print profiles are now available.

The second print profile includes all parts printable on the A1 mini.

The third print profile contains all variations of the side panels, accommodating 2 to 9 rows.

The fourth print profile features various seating rows with widths of 65, 95, 130, 160, 190, 220, 250, 280, and 320 mm, corresponding to 8, 12, 16, 20, 24, 28, 32, 36, and 40 studs respectively.

Depending on whether one or two studs are left free between figures, up to 10 or 13 figures can be accommodated side by side.

All different seating rows and all different side panels (including those from the various print profiles) are compatible.

I have tested all print profiles.

With the 9 different side panels combined with the 9 differently wide seating rows, 81 different grandstand sizes are now possible.

No further variations or adjustments are currently planned.

I welcome all comments (including critical ones) and hope that everyone who likes this model finds a suitable size.
