Side Spool Holder-V02 ( Not flush to the wall) Remixed by Prestige Prototype

Remixed by

Prestige Prototype

3D Printer>3D Printer Accessories

Print Profile(2)

All

P1P

P1S

X1 Carbon

X1E

0.2mm layer, 6 walls, 25% infill

Designer

3.5 h

1 plate

4.9(49)

0.2mm layer, 6 walls, 25% infill

Designer

2.5 h

1 plate

4.5(2)

Open in Bambu Studio

Boost

101

155

341

228

Released

Description

V02- Centered to stock PTFE filament Guide*

For those with a little more space behind their printer

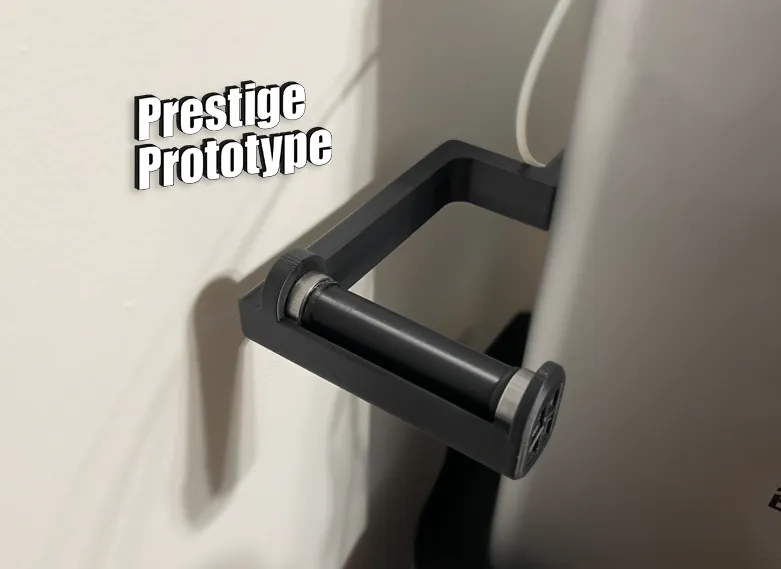

Introducing the Minimalist Side Spool Holder for Bambu Lab Printers (P1P, P1S, X1C):

Enhance your 3D printing setup with our sleek and functional Side Spool Holder, custom-designed for Bambu Lab P1P, P1S, and X1C printers. This minimalist accessory offers a clean and modern aesthetic, seamlessly integrating into your workspace. Utilizing the original PTFE guide ensures a smooth and reliable filament feed for uninterrupted printing.

Crafted for simplicity and efficiency, this side spool holder requires only 2x M3x30 screws and 2x 608 ZZ ball bearings (8mm x 22mm x 7mm) for assembly. The minimalist design maintains the sleek look of your Bambu Lab printer while providing a practical solution for spool management.

Upgrade your 3D printing experience with our thoughtfully engineered side spool holder. Embrace the ease of installation, the clean aesthetics, and the improved functionality it brings to your Bambu Lab printer.

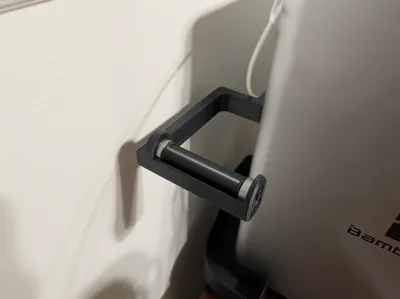

Photo credits to @scubapeks

Comment & Rating (73)

@Seismo

Main body printed in BL PC with 5 wall loops and Gyroid infill. Spool in BL PLA-CF. M3-20mm socket head bolts worked fine in the X1-Carbon with more thread inside the machine than the bolts that fasten the OEM external spool holder. My M3-20 bolts weren't fully threaded but anything longer that isn't fully threaded will possibly expose the unthreaded part when inserted (and that's a problem). I had some extra small outer diameter M3 washers which worked fine, but standard issue M3 washers won't fit in the bolt recess. It would be great if the recess could have a slightly larger diameter so commonly available M3 washers would work. The main reason I like this design over side mounted spools is the more direct filament path seems to be more reliable when feeding extra soft TPU (e.g. Fiberlogy FiberFlex 30D) which I've found challenging to feed if the path outside the printer isn't fairly direct. Overall this is a great design and I'm thankful it existed so I didn't have to design/prototype etc my own.

(Edited)

The designer has replied

@PrestigeProto

thanks for your comment! glad you liked it! could I use your photo for the model page? I'll credit you in the description!

@Seismo

Replying to @PrestigeProto :

Feel free to use it. No photo credit necessary.

@scubapeks

Printed very well and dimensions are accurate. Very well made for 1Kg spools and let you see your roll which I like much better than the roll being hidden behind the printer.

(Edited)

The designer has replied

@PrestigeProto

thanks for your comment! Could I use your photo for the model page? I'll credit you in the description!

@scubapeks

Replying to @PrestigeProto :

Sure go ahead ! Thank you !

@pstefanov89

Print Profile

0.2mm layer, 6 walls, 25% infill

@PrestigeProto

thanks for your pics and rating! hope you like the print!

@pstefanov89

I enjoy the print since its much easier to change filament in my case. I dont need to move the whole printer away from the wall anymore.

@PrestigeProto

Replying to @pstefanov89 :

thanks for your comment! Could I use your photo for the model page? I'll credit you in the description!

@Ptitlouis6012

Boosted

Print Profile

0.2mm layer, 6 walls, 25% infill

The model is perfectly compatible to a Bambulab P1P. I printed it in PETG and used 2x M3x20 screws for mounting to the P1P. Thanks to the designer of this very effective model

@PrestigeProto

thanks it's appreciated! glad you like it!

@OldFilipeeno

Print Profile

0.2mm layer, 6 walls, 25% infill

so far so good. rolls nice and smooth.

(Edited)

@dierk24

Print Profile

0.2mm layer, 6 walls, 25% infill

Mit den Lagern ein super geiler Filamenthalter

@PrestigeProto

froh, dass Sie es mögen!

@OSAMA.SZ

Print Profile

0.2mm layer, 6 walls, 25% infill

great

@dave_aust

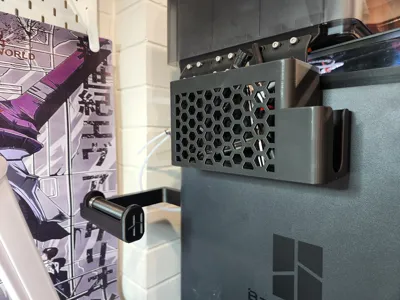

Looks and works great in CC3D PETG-CF. if you use an AMS riser with side storage for tools you may want to check clearance before printing

@Bustanut

Boosted

Print Profile

0.2mm layer, 6 walls, 25% infill

Unlike other side spool mounts, this one feeds directly into the PTFE tube. It's especially useful with flexible filaments. Thank you.

@MizTW

Print Profile

0.2mm layer, 6 walls, 25% infill

yes

This remix is based on

This source model was used for remixing/sharing before its license was restricted.

Side Spool Holder - for printer against the wall

Prestige Prototype

License

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
