🔴🔥 NEW VERSION AVAILABLE! 🔥🔴
👉 CLICK HERE FOR THE NEW MODEL + STAND! 🦋🔪



Butterfly Knife in Katana Style

I designed a butterfly knife featuring a subtle katana-style blade. To give the knife a modern appearance, I removed the traditional curve of the blade and replaced it with a minimalist taper. The result is a unique design that blends tradition with modernity.





Assembly

The knife's design has been intentionally kept simple to make assembly as easy as possible. You only need a bit of filament to attach the handles to the blade. Be sure to align the handles correctly during assembly!

The holes for the filament pins are designed to be tight enough to hold everything securely on their own. I strongly recommend avoiding the use of super glue, as the pins could break and become difficult to remove. Without glue, the pins can be easily replaced if necessary.











Assembly Tip:

Position the blade and handles, then simply insert some filament into the holes. Cut it to the correct length, and use a bit of heat and pressure to thicken the ends. This prevents the pins from slipping out, and if one breaks, it can be quickly replaced!











If you have any questions, please write to me 👍😄





Explore my tools:





knife
butterfly
butterfly knife
katana
fidget
folding
cosplay
funny
fun
fast
pla
petg
tommy3dlab
folding knife
toy
training

Bill of Materials

Bambu Filaments
A01-B6-1.75-1000-SPLFREE
19.99 USD
 × 1
A01-G7-1.75-1000-SPLFREE
19.99 USD
 × 1
A02-Y1-1.75-1000-SPL
24.99 USD
 × 1
Buy Now
Download BOM

Comment & Rating (285)

(0/5000)
@Nshark10
Fun to use and an easy print although there is an overhang that needs to be fixed on the blade.
The designer has replied
2
Reply
@Tommy3DLab
@Nshark10 Thank you for your feedback and the hint! Could you send me a picture showing exactly which part you mean?
0
Reply
@Nshark10
Replying to @Tommy3DLab :
It is this part circled at the end of the blade.
1
Reply
@Tommy3DLab
Replying to @Nshark10 :
@Nshark10 Actually, there should be a support tree at this spot. I'll quickly check the file. Thanks for your support! 👍😃
0
Reply
@RealMew
Print Profile
NoAMS - 0.16mm layer, 2 walls, 18% infill
It’s very nice, however I think probably not a good idea to print with PETG, the handle gets stuck on the blade on the left side, it might be my problem and I’ll sand it down a bit.
1
Reply
@Tommy3DLab
@RealMew Thank you for your great review! Is that translucent PETG? I just received it this week but haven’t printed anything with it yet, looks cool!👍👍
1
Reply
@RealMew
Replying to @Tommy3DLab :
Yeah it’s translucent PETG, takes longer to print compared to PLA but it does look good, for example.
1
Reply
@Tommy3DLab
Replying to @RealMew :
@RealMew Thank you for the insight, it helps in deciding what I will use it for.
0
Reply
@vargnaar
Boosted
Printed perfectly. Used a small metal filing rod to widen the holes a tiny bit to allow the filament pins a smoother fit. Hammered either end to secure it and it works a treat! Thank you for this awesome print.
The designer has replied
1
Reply
@Tommy3DLab
@vargnaar Securing the pins by slightly flattening the ends is really clever, and I can't stop thinking about it ^^. I just see a small potential issue: the hammering could compress the pins and make them more prone to breaking over time. However, your approach inspired me with this idea! Simply heating a piece of metal or something similar and pressing it onto the pins to slightly deform them could work just as well, ensuring they hold tightly. Thanks! Thank you for the inspiration! 👍👍👍👍🤩
2
Reply
@vargnaar
Boosted
Replying to @Tommy3DLab :
Hahaha thanks for making my day with that comment. I am overwhelmed by the creativity I see on this site and your work is no exception. A friend of mine who does machining for a living had mentioned it was basically riveting the hinge pins and seeing as this is just a bit of plastic, I am not too worried about having to replace the pins if I starve them of tenderness :P. I want to print another off, paint it properly when the primer arrives and try your heat press idea. Thank you again <3
1
Reply
@coryb
Boosted
Print Profile
NoAMS - 0.16mm layer, 2 walls, 18% infill
very fun to swing around but a bit annoying to assemble
0
Reply
@Tommy3DLab
@coryb Thanks for your feedback! Do you have any ideas on what would have made the assembly easier for you? I’m grateful for any tips! ^^
0
Reply
@coryb
Boosted
no I just had some trouble putting the filiment through the holes
0
Reply
@user_2172687610
one of the handles hangs off of the edge
The designer has replied
0
Reply
@Tommy3DLab
@user_2172687610 I've never seen anything like this before. I can't tell you what happened there, but all my parts are neatly arranged on the plate in the 3MF file, and the slicer should usually give you a warning. It definitely looks spectacular though ^^ I hope the printer is still okay!
0
Reply
@user_2172687610
it was lucky I caught it half way through! I reprinted it and it was fine I'm not really sure what happened, great model though!
0
Reply
@Iceflamerino
Print Profile
NoAMS - 0.16mm layer, 2 walls, 18% infill
Great looks, not my favorite to flip but excellent and simple design.
0
Reply
@Tommy3DLab
@Iceflamerino Thank you for your feedback! Do you have any ideas on what could be improved?
0
Reply
@Iceflamerino
Replying to @Tommy3DLab :
I think most improvements would end up complicating the model (eg: using bearings or adding balance weights) I really like the design though, so I am going to try and mess around with some different materials and ideas and see if i can come up with something worth your time
0
Reply
@SirMillzy
Print Profile
FAST - AMS - .16mm layer, 2 walls, 18% infill
Printed great and using the filament to hold it together is great! Thanks for the upload! :)
1
Reply
@Tommy3DLab
@SirMillzy Thank you for your feedback and the top rating! 👍😃
0
Reply
@Tarik77
Print Profile
FAST - AMS - .16mm layer, 2 walls, 18% infill
works great, tolerances are perfect and the design is just stunning. thanks for the amazing work! ✌🏻
1
Reply
@Tommy3DLab
Thank you for your feedback and the great review! The blue really does look amazing and is very cleanly printed. 😯👍
0
Reply
@oFerrari

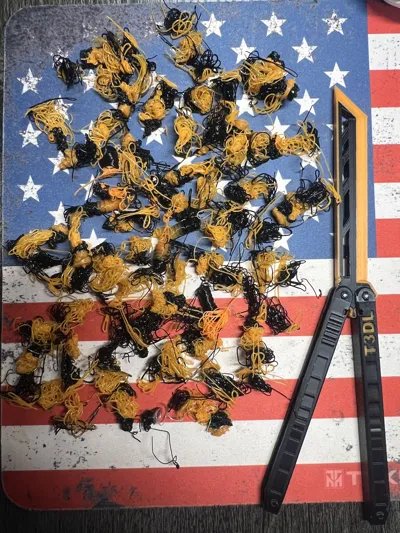

It turned out great but I’d highly recommend running it through your slicer and not the app. I sent it to my printer while at work and was amazed by the amount of poop when I got home. Perhaps I did something wrong tho (?) 🤷🏻‍♂️ I used a P1S with AMS through the app
The designer has replied
0
Reply
@Tommy3DLab
@oFerrari Thanks for sharing and for your feedback. The amount of poops should be correct since you printed the MultiColor Blade! It consists of 148 layers, and there's a color change at every layer, so that's 148 poops ^^ You’d have significantly fewer poops if you had used the 'AMS Fast' profile. 👍😄
2
Reply
@oFerrari
Replying to @Tommy3DLab :
good to know! I plan on printing a few more so I’ll definitely check out the fast setting.
1
Reply
@JustFakey
Well, it worked out pretty well. And its really just sticking your Filament threw the provided openings. Does look good, will print some more for friends^^
The designer has replied
1
Reply
@Tommy3DLab
@JustFakey I'm glad you like it . Thank you for your feedback and the great review! Have lots of fun with it, you and your friends! 👍😄
(Edited)
0
Reply
