Description

Boost Me (for free)

FOR MORE REMIXES AND PROJECTS!

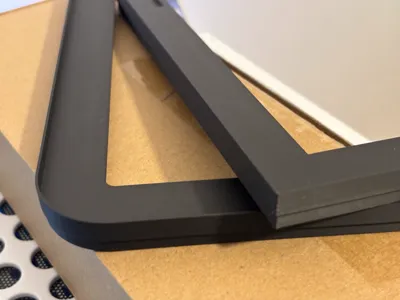

Introducing the Top Glass Riser for Bambu Labs X1C and P1S – a must-have upgrade for your 3D printing setup! This enhanced riser is designed to improve both functionality and your overall printing experience with the following key features:

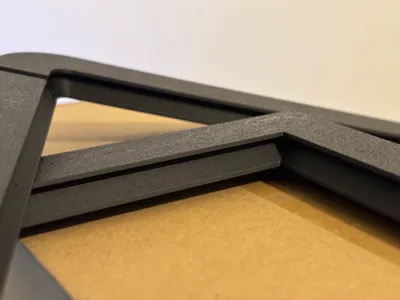

  1. Optimized LED Angle – The built-in LED light is angled at a precise 60° from vertical, ensuring it shines down directly toward the build plate. This provides better illumination for your prints, enhancing visibility and making sure every layer is perfectly lit without any shadows.
  2. TPU Bed Support – We've added a soft yet durable TPU "bed" for the Top Glass to rest on, providing extra protection for your printer’s components while reducing vibrations and noise during printing. This cushioning ensures your printer remains stable and that the glass stays securely in place.
  3. Light Shielding Lip – No more annoying light leaks! A specially designed lip around the TPU bed acts as a light shield, preventing unwanted light from spilling into the chamber when you’re observing prints from above. This feature helps maintain your focus and eliminates distractions during your printing process.
  4. Convenient Cable Slot – Say goodbye to struggling with narrow cable holes. We've made the cable slot cut all the way down, allowing you to easily slide the cable in and out without having to fiddle or thread it through a small hole. This simple design tweak saves you time and effort, ensuring you can quickly set up and get back to printing.

Upgrade your Bambu Labs X1, P1S, or P1P with this thoughtfully designed Top Glass Riser, and enjoy a smoother, more efficient, and visually pleasant printing experience!







Comment & Rating (114)

(0/5000)

Print Profile
0.2mm layer, 2 walls, 15% infill
Thanks to you, I now have a funfair bumper car! :D
3
Reply
RGB gave you +10 printing speed points :P
(Edited)
2
Reply
Replying to @tf88lk :
haha!! :D
0
Reply
The print profile is no longer public
I combined this riser with a ventilated one Truly excellent
Show original
0
Reply
Thanks for rating and photos!
0
Reply
How did you mount the led strip. was it cut into strips then solder/wire connected up. did you use the internal usb port?
0
Reply
Replying to @user_4091822067 :
Yes, I cut the LED strips and resoldered them with wires They are affixed with high-temperature tape I am powering the strips with an external power supply The X1 lacks a USB port
Show original
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
First time printing TPU. Bought the AMS compatible one. Used a smooth PEI plate with some glue stick. Very impressed how they turned out. one thing I noticed is that the square indents obviously go in the indents on the frame. But there are two small indents on the upper side. Not sure what these are for. Also do you glue the whole lot in place or just fit the prices together and let the weight is the AMS hold it inmplace? Other than that excellent model.
1
Reply
The screws for the lid handle go into the recess at the top I simply placed it there and let the weight of the disc and the AMS hold it in place
Show original
0
Reply
Boosted
Print Profile
0.2mm layer, 2 walls, 15% infill
as you can see allows for installation of any LED light you have. thanks for this design.
0
Reply
Thank you for rating! HAPPY PRINTING :D
0
Reply
Boosted
Print Profile
0.2mm layer, 2 walls, 15% infill
Excellent, perfect print! It's now perfectly visible!
Show original
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
My PLA print results are unsatisfactory I will likely need to reprint the front corners This is unrelated to the print profile or design The shape height and execution of the riser are optimal for me For my project I require a cable slot on the front side and a few cutouts for hanging an HSW I also squeezed the four parts onto a plate It fit perfectly
Show original
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
My previous design had a right angle, resulting in less illumination, but this revised version, angled downwards, provides significantly more light
Show original
0
Reply
Boosted
Print Profile
0.2mm layer, 2 walls, 15% infill
Very cool addition to my X1, thanks for sharing this profile
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
Perfekt
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
Looks good and subtle, not too high The ledge for the LEDs could be slightly wider Otherwise, top-notch work I only used 3 sides with LEDs, which is perfectly sufficient
