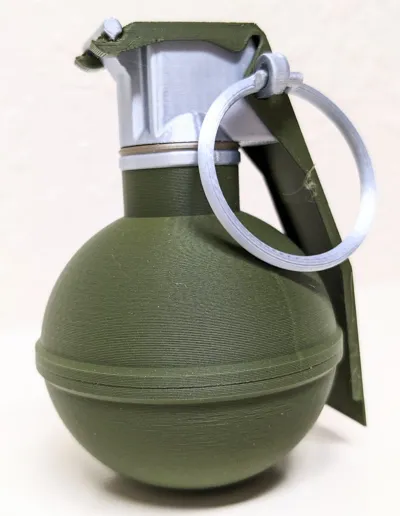

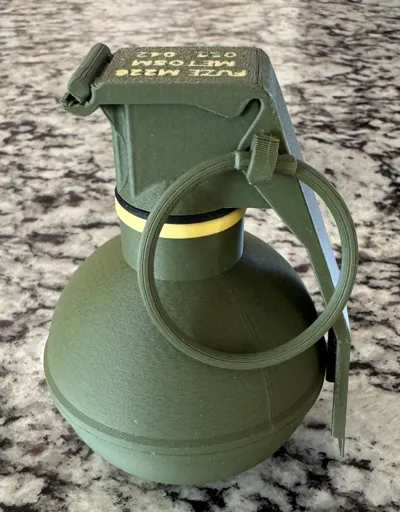

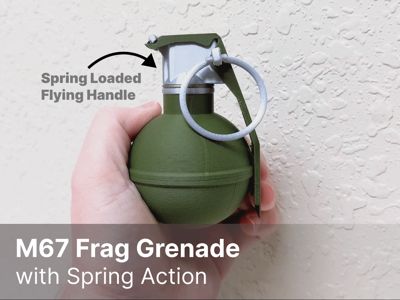

This is a 1:1 scale model of the M67 Frag Grenade used by many armies throughout the world. This grenade has articulated pin and handle – the handle can be optionally configured ot be spring loaded and fly off when released.

( ! ) Do not sell my prints — I have not authorized selling prints. If you sell my prints on Etsy, Amazon, eBay, etc, I will find out.

The model is easy to snap together, no glue is required.

Bambu filaments used were:

Matte Dark Green
Matte Yellow for the text on the top
Silk Silver
Metal Iridium Gold

Follow the diagram below for assembly and let me know in the comments if you need any help. Note that its easiest to attach the silver top upside down so the spring doesn't fall out.

This 3D print is intended for decorative purposes only and is not suitable for children. Small parts may present a choking hazard and edges may be sharp. By printing this 3D print, you assume all liability for any harm to yourself or others resulting from its use.

Bill of Materials

Maker’s Supply Kits and Parts

0.5x7x12mm Helical Compression Spring (10PCS) - BB005

B-BB005

1.64 USD

× 1

Bambu Filaments

Dark Green

A01-G7-1.75-1000-SPLFREE

19.99 USD

× 1

Copper Brown Metallic

A02-N3-1.75-1000-SPL

27.99 USD

× 1

Silver

A06-D1-1.75-1000-SPL

22.99 USD

× 1

Lemon Yellow

A01-Y2-1.75-1000-SPLFREE

19.99 USD

× 1

Buy Now

Download BOM

Comment & Rating (449)

@user_141471279

nerf that will turn you into nothing

@Yami_Industries

random person: it's nerf or nothing. you: *pulls pin* why not both?

@matty.lad

Print Profile

0.2mm layer, 2 walls, 15% infill

This is brilliant. Printed well on my P1S in various PLA, minimal supports (only the clip and ring/pin). I don't know why I wanted to print this but I'm glad I did. The spring from a ball point pen works just as well. As an addendum, the clip broke when showing it to friends, I wonder if it would be better to make it thicker?

@user_622861257

Thanks for tip on the pen the Spring!

@SugarFries

I think printing it sideways will make the handle stronger, it will take more support but it should make it stronger

@Mindgame16

thanks for the pen spring tip!

@user_1373769871

I think this is great, but the spoon needs a little fixing so I just modeled it so it is a little stronger. (This is on my print profile for anyone else who needs it)

(Edited)

@williammolinari

Boosted

Print Profile

A1 Mini Version

supports were so hard to get off

@rexilabs

Which supports did you have trouble getting off?

@williammolinari

Boosted

Replying to @rexilabs :

all of them mostly the top part where the spring goes

@rexilabs

Replying to @williammolinari :

If you are using the 3MF file provided then it should have removed the supports from the vertical holes like where the spring goes and where the peg goes (if it isn't let me know and I'll fix that). If you are setting up your own file I would recommend turning off supports by using support painting for those two holes because it is almost impossible to remove if you don't.

@SugarFries

looks and work really nice! Can you design a stun grenade and a smoke grenade that have the key thing that flings the top of when pulled? I would love to print those too, they would go well all together

The designer has replied

@rexilabs

Thanks! I'm not sure what you mean by the key thing that flings the top? Do you mean that it would do the same thing as this grenade where the spoon handle flies off? Or are you talking about something different?

(Edited)

@SugarFries

yeah sorry, the spoon handle flies off like the grenade

@Hydra006

Replying to @SugarFries :

use a spring from a ball point pen and stick it in the hole like so in the instructions

@___Thomas___

Boosted

Excellent... super quality... I just used a pen spring... it works perfectly 🙌 Thanks

The designer has replied

Show original

@rexilabs

Thank you! It is very clever to use a pen spring, I am glad that works!

Show original

@user_165123487

thank you saved me money

@duckguy

Boosted

Print Profile

A1 Version

it printed very well! the pegs were very tight so I had to use a small rubber mallet to get the top and bottom attached, but it’s looking good now

@rexilabs

Glad you got it to work, when I was doing tolerance testing in the design process for the grenade I had to make the peg just a little bit tighter because otherwise the spring would always cause the top to fly right off lol.

@duckguy

Boosted

Replying to @rexilabs :

ya I’d always rather have to do a bit of sanding than have it not right enough

@MWergeN

Boosted

Best Christmas tree ornament. Never used before, guaranteed .. Easy print, for a noob, and with a small spring from a ballpoint pen, the handle flew gently on release. The Christmas tree might even survive this one ..

The designer has replied

@rexilabs

That's a fun idea to use it as an ornament.

@MWergeN

Boosted

Replying to @rexilabs :

While in the service, yeah. Vet's with PTSD .. not so much.

@ddavis83864

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Very well done. Prints really great and extremely easy to assemble. Thank you.

@rexilabs

Thanks, glad you like it 🙂

@user_1387391999

I love this thing

The designer has replied

@rexilabs

Glad to hear it 🙂
