Description

Boost Me (for free)

if you like what you see and find this useful, consider a boost. Thanks.

Modular / Stacking / Reconfigurable Drawer System.

this is a nice set of drawers that can easily be assembled to fit many needs, there is a standard drawer and a shorter drawer. they can be configured as your needs change. Start with 1, expand to 4 if needed.

Check out the photo of the components to see what's there. Very easy assembly and no tools or Glue Required!!

if you have any questions, please feel free to ask or leave a comment below.

Don't forget to check out the other print profiles for the other drawer styles and knobs. information on them is below..

Note:

You can change the materials to whatever you like to use. I do suggest that you turn the bed temp to 60c for better adhesion and less change of the edges lifting. I would also recommend that you turn the auxiliary fan off during these prints. you'll have much better success with them not lifting. Liquid glue is recommend on a textured PEI plate as well. I didn't have any failures while printing these.

Size:

Cabinet Size

225mm wide x 183mm Deep.

Drawer interior size

93mm wide x 160mm Deep

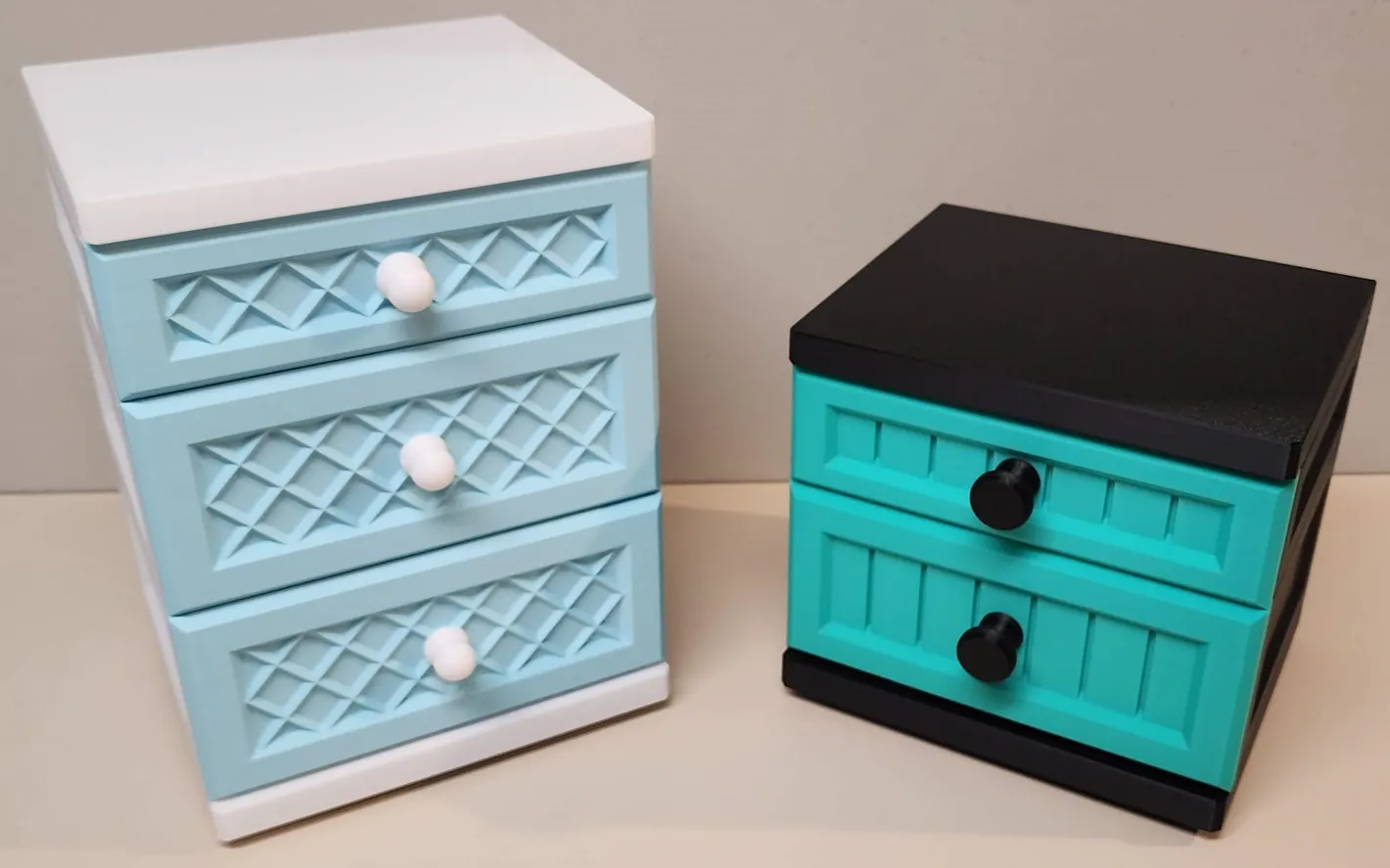

I have 2 different drawer styles that are currently available.

Style 1 Drawers. These Drawers can be stacked in any order. Currently only Knob V1 fits this drawer as it's beveled to go around the diamond pattern.

Style 2 Drawers (with V3 Knob) these drawers can be stacked in any order.

Style 3 Drawer (With V4 knob). Depending on how you want to stack Style 3, there are 2 different top drawers, and 2 different bottom standard drawers that line up with each other, then you can use the smaller top drawers to complete the look. See reference below.

Style 4 Drawer (with V2 Knob) depending on how you want to stack Style 4, there are 2 different top drawers, the bottom standard drawers line up with each other, then you can use the smaller top drawers See reference below.

Stack of Style 4 Drawers (2 standard drawers, 1 Small Bottom, 1 Small Top.

there are different knob styles to fit your needs as well, so you can choose the one you want.

makeup brush container

holder

desktop

countertop organization

kids

jewlery

jewlery box

Comment & Rating (24)

@Thaylon_Designs

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Perfect for my hair accessories. I added another component from another organizer to the top to give myself more product storage. It was a quick and easy print. Thank you!

@briankstan

thanks for the review and posting a photo. glad you enjoy it.

@schmantz6562

Print Profile

0.2mm layer, 2 walls, 15% infill

Turned out super cute. The only issue I have is the bottom drawer is a little to tight. My granddaughter is going to love it! Thank you for sharing!

@briankstan

thanks for the review and the note. I'll look into it.

@briankstan

is it possible that one of the cabinet pieces lifted off the bed and shrinking the gap? I have checked the files and there is space in there, should be 1mm gap between the drawers. I have also printed several of these with all the different drawer sets and tested the configuration you have . Love the name plate you added to the top as well. :)

@schmantz6562

Replying to @briankstan :

It didn't appear to have but you never know.

@Moler

Print Profile

0.2mm layer, 2 walls, 15% infill

great modular design. my daughter is in love!

@briankstan

thanks for the review. Glad she loves it. :)

@Bas7ard

Print Profile

0.2mm layer, 2 walls, 15% infill

love it thanks very much

@printndreams

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

just finished printing this and i absolutely love it! i printed it in sage green, honey yellow, and grey. perfect printed so smoothly and snaps together without needing glue

@mercygraz

Where can I find the enclosure itself? The drawers are fantastic, but without a casing, they're useless

The designer has replied

Show original

@briankstan

it's all in the main print profile.

@printndreams

Boosted

this is so detailed and beautiful thank you

The designer has replied

@briankstan

thanks for the review. glad you enjoy it.

@user_1982352400

Is it possible to make this with the A1 mini?

The designer has replied

@briankstan

they are a bit large for the A1 Mini. I haven't tested with scaling them down. if you give it a try, just make sure you scale them at the same percentage.

@bnlschick

Print Profile

0.2mm layer, 2 walls, 15% infill

made for daughter great print

@weewinkel

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

it’s bigger than expected! but it turned out great!
