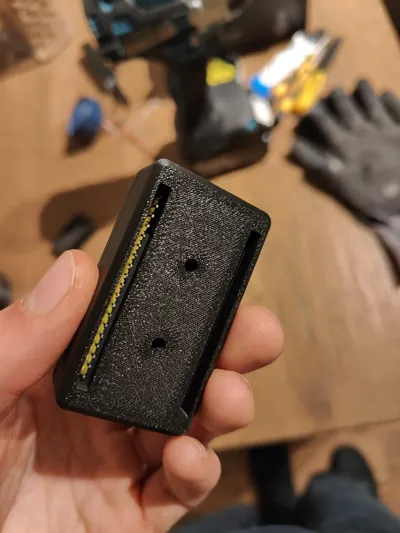

A compact enclosure for the slightly larger ESP32-S, suitable for utilizing it as an access point (AP), for instance. The cover is simply slid into place. The enclosure also features two screw points for secure attachment. Additionally, two openings can be broken out at the bottom if you wish to access the GPIO pins.

----------------------------------------

A small housing for the somewhat larger ESP32-S, for example to use it as an AP. The lid is simply pushed on. The housing also has 2 screw-on points for fixing. In addition, 2 openings can be broken out at the bottom if you want to use the GPIO pins.

Comment & Rating (22)

@user_3833972621

Print Profile

0.24mm layer, 3 walls, 15% infill

fits perfectly for my esp who is 55x28mm

@backtheweb

Print Profile

0.24mm layer, 3 walls, 15% infill

Great thnks!

@quintenmyth

Boosted

Print Profile

0.24mm layer, 3 walls, 15% infill

Perfect fit, I just added negative modifiers so I could access the pins.

@Dr.Big

Boosted

Nice! Thank's a lot!

@user_1941139226

Print Profile

0.24mm layer, 3 walls, 15% infill

Perfect fit, thank you very much!

Show original

@kosik86

Boosted

Really nice shape. I've made a little inset that makes the esp8266 fit really well too.

@hurreman

Boosted

Had to scale it up slightly (scaled it 2%, but 1% might've been enough) in order for my 38-pin ESP32 to fit. Not sure if it's slightly too big or due to filament shrinkage. Either way - good model! The lid slides on and stays on perfectly.
