Tesla Cup Holder with MagSafe Charger by Shiba

Shiba

Hobby & DIY>Vehicles

Print Profile(1)

All

X1 Carbon

P1S

P1P

X1E

0.2mm layer, 5 walls, 25% infill-No additional Support PETG

Designer

13.9 h

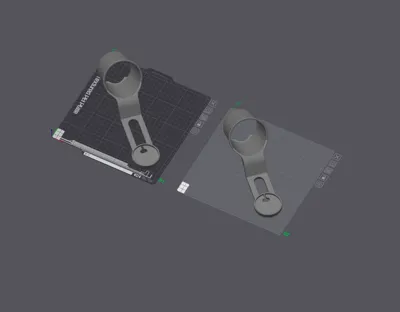

4 plates

4.7(7)

Open in Bambu Studio

Boost

140

141

Released

Description

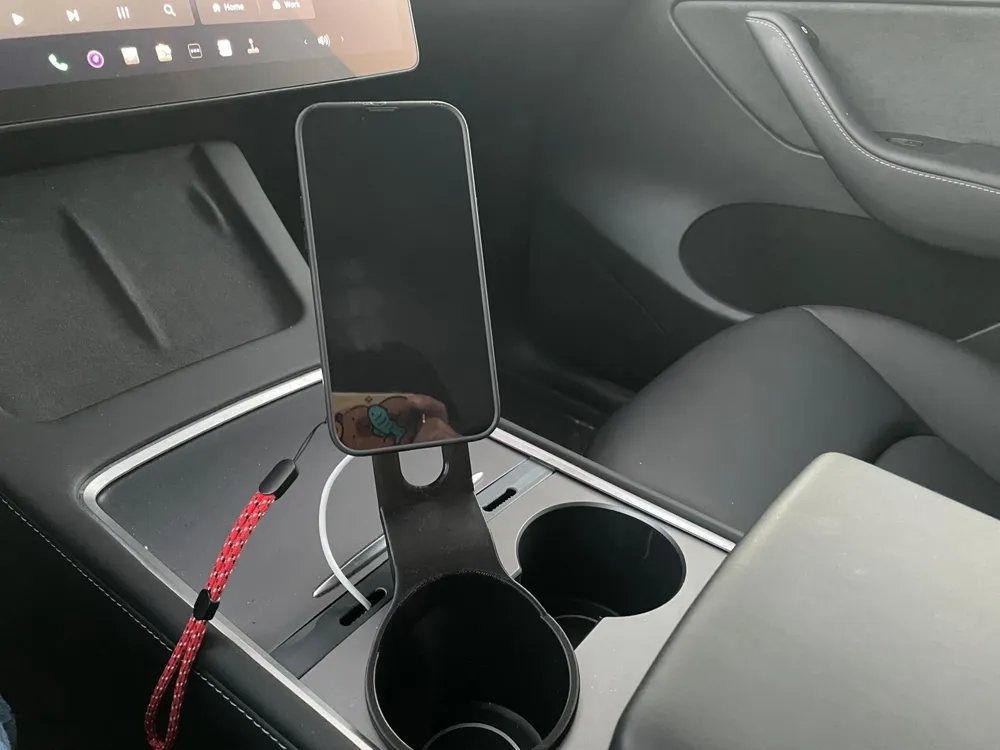

Tesla cupholder adapter / magsafe charger to hold Iphone. Didn't want phone on dashboard or near windshield. Works on my 2023 Model Y. I have designed 2 sizes, low and high - photo shows high version. They both work with Iphone Plus and Starbucks cups. Part has being designed with support, no need to slice it with support.

Note: not sure if there's a standard for magsafe pucks. One I have is 56mm diameter X 5.8mm thick. Added variation with full bottom in puck area for taping if press fit is too loose.

If anyone got it working on different years MY or Model 3, Model X… Please add to comments below.

Thanks

02/22/25 - Added JPEG drawing with height and diameter for those trying to make it work on other vehicles. Fit can be tweaked by adding electrical tape if too loose.

Comment & Rating (17)

@user_867228619

Boosted

This is almost to perfect to be free :) - very nice job! This first one is in PLA I will try the ASA CF tomorrow. I used this cheap MagSafe from Amazon and it fits perfect, really nice an snug. you can even choose different colours. https://www.amazon.de/dp/B0BBTFWCMB?ref_=pe_109184651_1103807401_fed_asin_title&;th=1

(Edited)

The designer has replied

@DaddyOhh

PETG has been working for me for the last 12 months. My original print was in PLA and angle kept drooping after a couple of days.

@user_867228619

Boosted

Thanks for update on PLA durability. I am still new to printing, so haven’t acquired so many filaments yet. So I work with what I have :)

(Edited)

@user_760053880

Print Profile

0.2mm layer, 5 walls, 25% infill-No additional Support PETG

Not a great result with PLA but much better with PLA-CF. Installed reasonably well except for slide lid not able to fully close - small design tweak would fix it. Poor finish detail on underside so OK, but not a saleable standard.

@DaddyOhh

First couple of test prints were in PLA. Once in the car it started drooping right away. After 2 weeks it was facing the cealing. :( I have no experience with PLA-CF. After a year, PETG has worked for me. Storage slide not closing? I will take a closer look maybe update file. Yes, underside looks crappy. I had prints with more support but is very difficult to remove PETG and still looked crappy. This is really a one off for personal use and not meant to be "saleable".

@user_931765959

Replying to @DaddyOhh :

Thanks for your good work. I'm new to 3D printing and on my learning curve. First CF print & did the tray that fits inside the front storage hatch also. Excellent result there.

@zahotha

Hi, Is it possible for you to give the smallest and biggest outer circle diameter of the cup support ? Thanks

The designer has replied

@DaddyOhh

Biggest diameter is 3.25". Smallest is 3.02" and depth is 2.75" I have uploaded a drawing for those trying to get it working on other makes and models.

@caryjmiller

Print Profile

0.2mm layer, 5 walls, 25% infill-No additional Support PETG

Perfectly fits my 2017 Ford Escape cupholders

@DaddyOhh

Thanks for feedback. Wonder what other makes and models it may work in.

@jtfuel

Boosted

Thanks for sharing. Nice easy print and perfect fit.

@user_862247577

Boosted

This is excellent. Thank you.

@Vinsator

Print Profile

0.2mm layer, 5 walls, 25% infill-No additional Support PETG

@user_2739728791

Boosted

Print Profile

0.2mm layer, 5 walls, 25% infill-No additional Support PETG

@user_867228619

Boosted

Print Profile

0.2mm layer, 5 walls, 25% infill-No additional Support PETG

@drsemihemre

Boosted

Print Profile

0.2mm layer, 5 walls, 25% infill-No additional Support PETG
