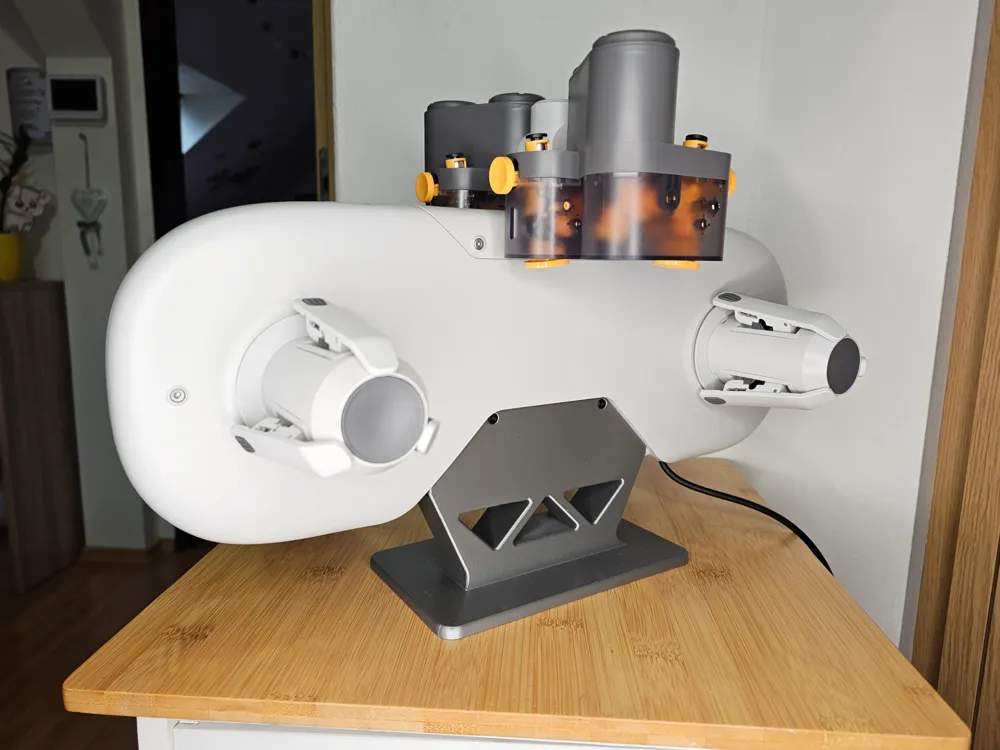

I created a low stand for AMS lite. I don't have enough space around the printer, so I couldn't use the original stand from the manufacturer. There are 2 attachment methods available for download.

Can also be printed on A1 mini.

V1 has a slip-on cover that holds the AMS and is easy to handle with the AMS lite.

V2 is for those who have enough space and just screw the stand on and don't need to handle the AMS.

Screwing the stand to the AMS use the screws supplied by the manufacturer for the AMS lite

It is necessary to screw the case or the stand, because otherwise there is a risk of the AMS tipping over under uneven load.

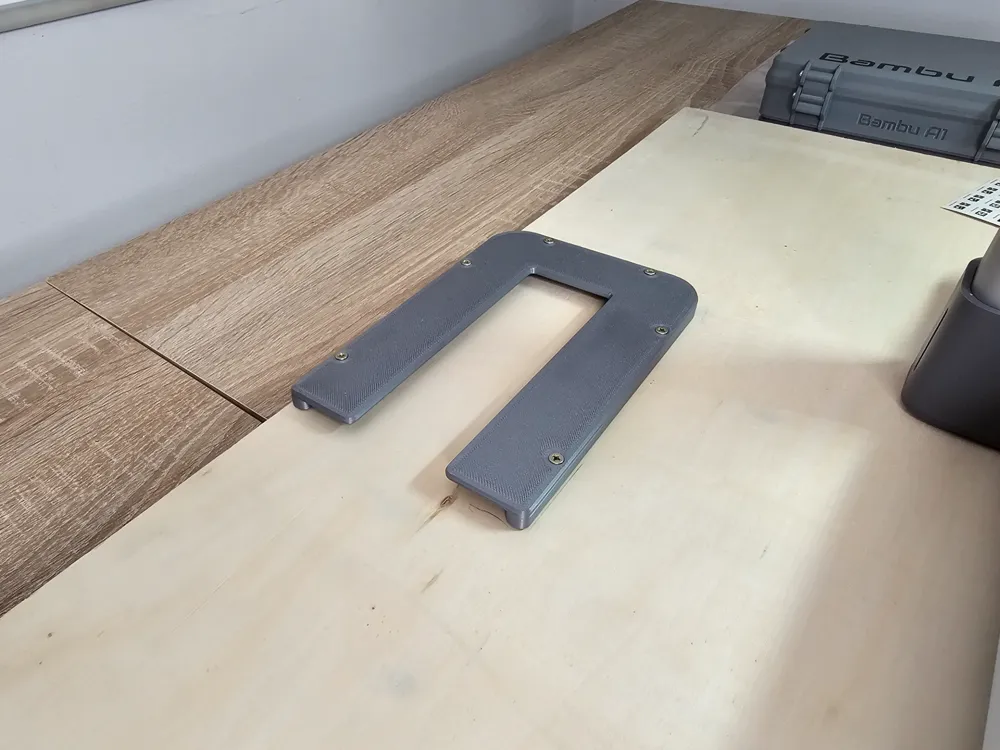

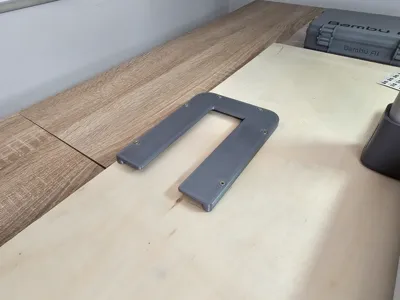

I screwed the stand or cover to the wooden board using screws.

Model optimized for printing without supports.

PLA material.

Degrease your bed for good adhesion.

Thank you for your feedback, ratings and Boosts.

AMS - Lite

AMSLite

AMS

Comment & Rating (83)

@user_2100671088

Boosted

Excellent design! This is exactly what I needed. I also used double-sided tape on the bottom to prevent any rotational movement.

(Edited)

The designer has replied

@LvcasCZ

Thank you

@PeppeVella

Boosted

Print Profile

A1-0.2mm layer, 4 walls, 15% infill

stupendo

@lunar_layers

Boosted

Print Profile

A1-0.2mm layer, 4 walls, 15% infill

printed awesome and works great

@iSwaGGersS

Boosted

Print Profile

A1-0.2mm layer, 4 walls, 15% infill

Printed relatively quickly and fits perfectly The design closely resembles the original, making it almost indistinguishable

Show original

@Matt12345678

Boosted

It printed really well and fits like a glove. I did widen the base to give it a wider footprint for added stability and love it.

(Edited)

@CTeipen

Boosted

Print Profile

A1-0.2mm layer, 4 walls, 15% infill

Excellent AMS riser

Show original

@denisjosifoski

What's the height of ams lite together with stand?

The designer has replied

@LvcasCZ

AMS + stand 28 cm With PTFE 35 cm

Show original

@denisjosifoski

Replying to @LvcasCZ :

This might be just the height I am limited to 😁. From photos I guess that sides are fully flat and should work fine with Ultimate filament spool enclosure? I printed one other but I figured after that it goes wider from top to bottom and blocks installation of enclosure 😅

@LvcasCZ

Replying to @denisjosifoski :

I have little space around the ams lite. The filaments it uses. will fit vertically.

@Kantonez

Print Profile

A1-0.2mm layer, 4 walls, 15% infill

Perfect height and size to be used with the "ultimate ams lite mod" enclosure. Bought some rubber pads from the Dollarstore for the bottom.

@LvcasCZ

Thank you

@Matt12345678

Boosted

@Kantonez Have you got a link to the enclosure you use with it?

@RWSimmons

Boosted

absolutely impressed. the bridging at layer 231 went perfectly. thought that support would’ve been needed but the speed and cooling settings were spot on. White pla from a 250 g spool in a semi running all night vibrating has given a great result. thanks

The designer has replied

@LvcasCZ

Thank you.

@user_4019985856

Print Profile

A1-0.2mm layer, 4 walls, 15% infill

came out perfect. the ams lite fits into a 10gallon tank with it then I made a lid with plexiglass and added desiccant in bags in the bottom of the tank.
