Filament Container Mount - Keep Your Filament Organized and Dry

Effortlessly store and organize your filament with this Filament Container Mount! Designed for standard 4-liter cereal storage containers available on Amazon, this mount is optimized to securely hold Bambu filament rolls, ensuring your filament stays dry and within reach.

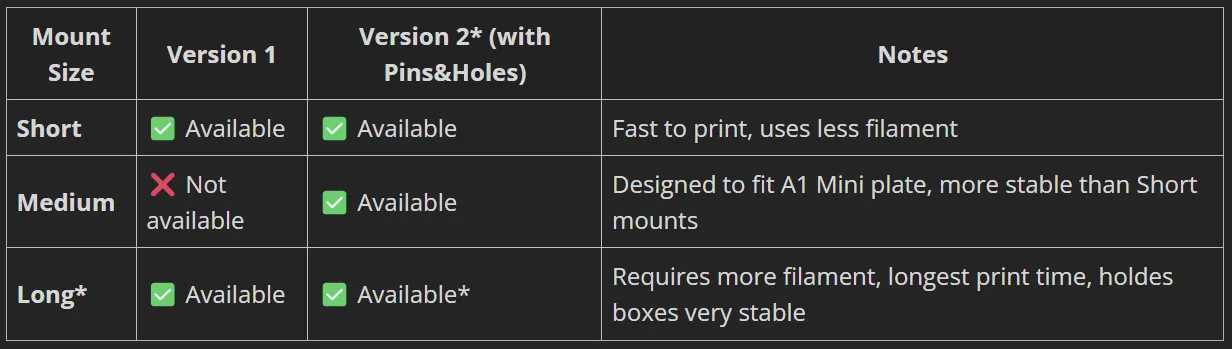

You will find two sizes - standard and extra long. The extra long version avoids falling of from shelf if loaded with more items like moisture meter. Thank you for feedback @MrHappy4Life.

Design & Compatibility:

Inspired by this model, the upgraded design supports up to 13 containers on a 1.60m wide standard shelf, making it easy to expand your storage. Each mount features rounded edges for added strength and durability, providing a sleek look and reliable performance for years to come.

Features:

Enhanced Screw Compatibility

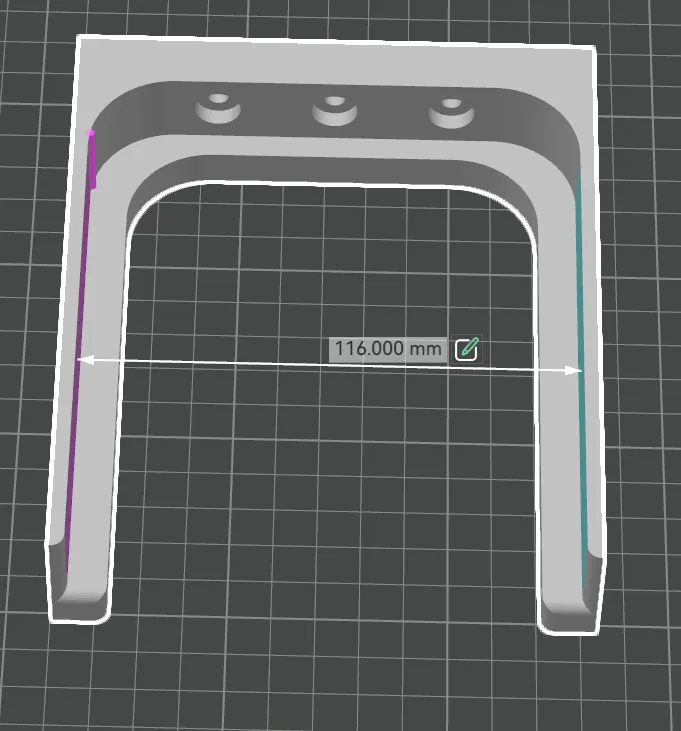

The mount accommodates 5mm diameter screws, with an inner hole depth of 9mm, perfect for securely mounting on wooden wall boards of up to 19mm thickness. Screws of 25mm length are recommended for optimal support, and we’ve adjusted the hole positions for easy installation with a drill driver. (See pictures for reference.)
Precision Hole Gauge
Included is a handy hole gauge to precisely mark where to drill. Use small nails (1.2mm diameter recommended) to align holes for a perfect fit.
Drill Bit Guide
A plate is included to support a 3mm drill bit, guiding your drill up to a maximum depth of 16mm – ideal for securely mounting to wooden walls.

Overview of Additional Items You May Arrange

⌀3mm drill, screwdriver and bits
4 x ⌀1.2mm nails & hammer - for Precision Hole Gauge
25mm x ⌀5mm screws - for mounting the model on wooden back board
Wooden back board 19mm thickniss and additional screws for mounting it on the wall

Let me know what you think! 💬

Let me know if you'd like any further adjustments!

How do you like my other models?

Boost Me (for free)

Thank you so much for your interest in supporting my 3D prints! I really appreciate your help in spreading the word. A boost can really help me reach more people who might be interested in my designs. If you have any specific prints you'd like to see, or if you want to know more about the process behind them, feel free to ask!

Comment & Rating (53)

@appleguru

Boosted

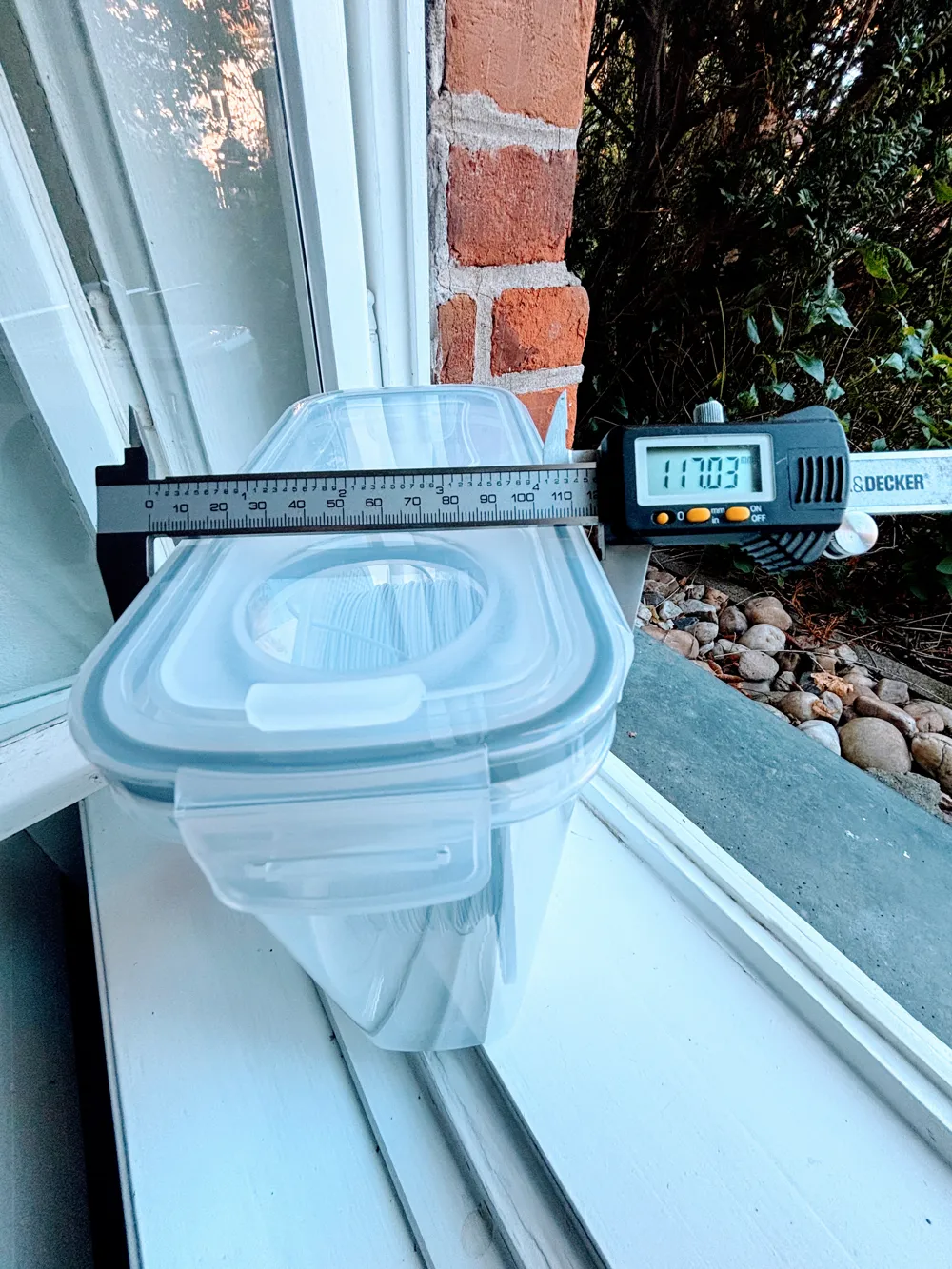

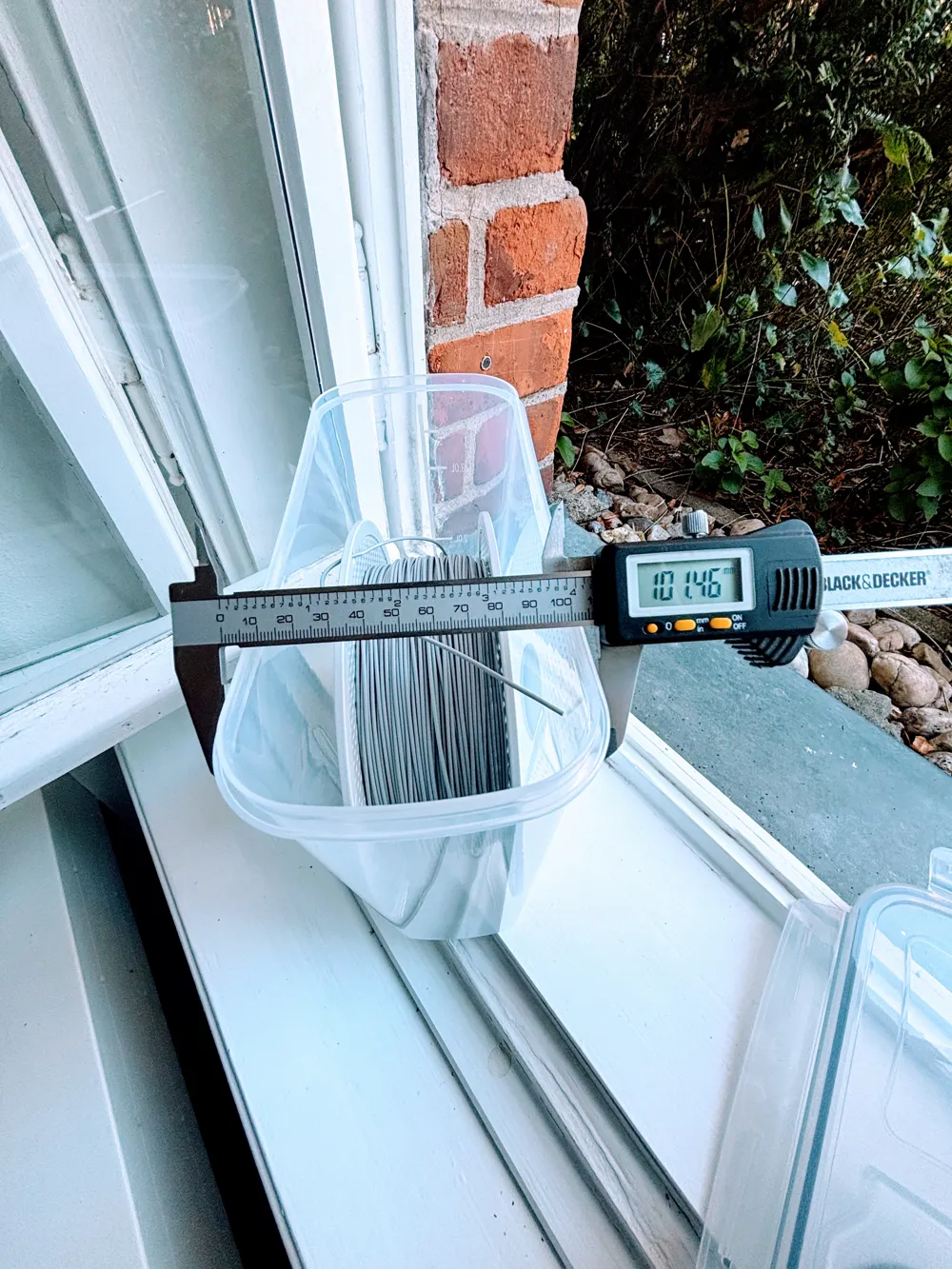

Print was great, but unfortunately it didn't fit my cereal boxes (was too wide, and didn't accommodate my lids' latching mechanisms. So I took some measurements and re-modeled it from the ground up to fit... After several enhancements (including a tab at the back to prevent the boxes from sliding off inadvertently, and 5 or 6 iterations, I decided to go full circle and make it multiboard compatible, as I wanted some space to hold other printer related tools with my filament. My multiboard compatible version has its mounting holes 25mm o.c. instead of OP's 28mm, and has 17mm countersinks (vs 11mm), and 7mm diameter holes (vs 5mm), at 5mm depth (vs 4mm), to accommodate multiboard's plastic hardware. These holes are slightly less convenient for traditional screws, but still compatible. Will share my models shortly once I make sure everything works!

The designer has replied

@robert1x2

Nice work! Thx the feedback. It seems you have different boxes. What boxes you bought? Would you share some link

@appleguru

Boosted

Replying to @robert1x2 :

They’re these ones: https://a.co/d/de2smVT Printing my multiboard compatible version now 😂 (and some multiboard next…)

@robert1x2

Replying to @appleguru :

Your boxes seem to be little different. Thx the boost!

@tgtjaden

Boosted

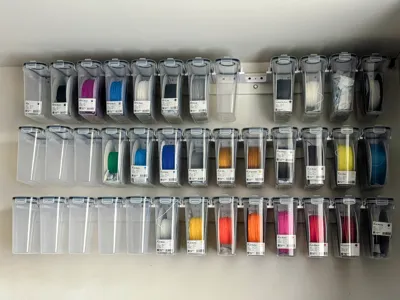

These work really well. I mounted them to the front of my desk which uses the space much better than before. I used replaceable vertical filament holders to make it easier to identify the colors. Thanks for a great design.

The designer has replied

@robert1x2

Extremely nice! Thx sharing. And thank you the boost. Merry Christmas 🎄

(Edited)

@_n8_

@tgtjaden Did you make those vertical labels or did you find them online here? They are perfect!

@user_3058389322

Boosted

Print Profile

3 Holder - Filamentbox

Perfect!

The designer has replied

@robert1x2

🙌🏻

@Lara_Hellmich

Boosted

Print Profile

3 Holder - Filamentbox

Printed 24 times with PETG Works perfectly

The designer has replied

Show original

@robert1x2

🙌🏻

@perkins_prints

Print Profile

1 Holder - Filamentbox

The designer has replied

@robert1x2

Thx. Happy 3D printing.

@user_3058389322

Boosted

Print Profile

3 Extra-Long Filament Box Holder

The designer has replied

@robert1x2

🙌🏻

@Virtality

A little over 15 starts on this print (all but one canceled before finishing). I have the X1C and am running PETG + from Inland. I had everything from over extrusion clumps to subpar temps with scraping and sticking, and stringing. If your running this setup, or this filament, and are getting these issues or similar, I'd recommend these as a better starting. If you find a way to further improve them please let me know. I think these work for now, but I'm not too optimistic how they will handle less flat and square pieces.

@Dennjo

Boosted

Print Profile

3 Holder - Filamentbox

Fits well, prints easily and is also suitable for the cans visible in the photograph. These are the Skroam Müüslidose 4L from Amazon

Show original

@Dennjo

Boosted

Print Profile

Precision Hole Gauge - Filamentbox

The holes are somewhat small but pose no problem

The designer has replied

Show original

@robert1x2

🙌🏻

@MrHappy4Life

Boosted

Thanks for all the help, and thanks for the print.

The designer has replied

@robert1x2

Thank you for the boost! Thx for improvments! Happy healthy and new year!
