Description

Boost Me (for free)

Hey, if you like this model, would you please consider boosting me!

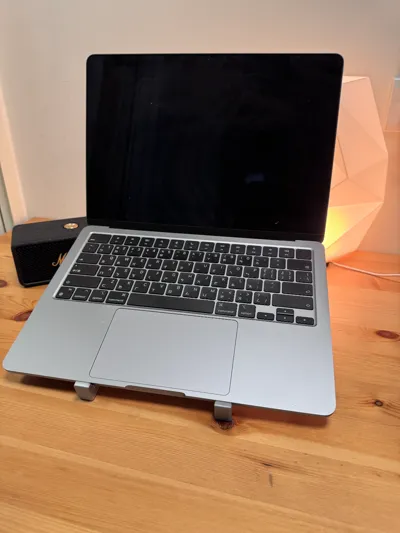

The size is suitable for my macbook air 13.6, and may be enlarged or reduced to fit other different sizes.

大小適用我的macbook air 13.6,或許可以放大或縮小適用其他不同尺寸。

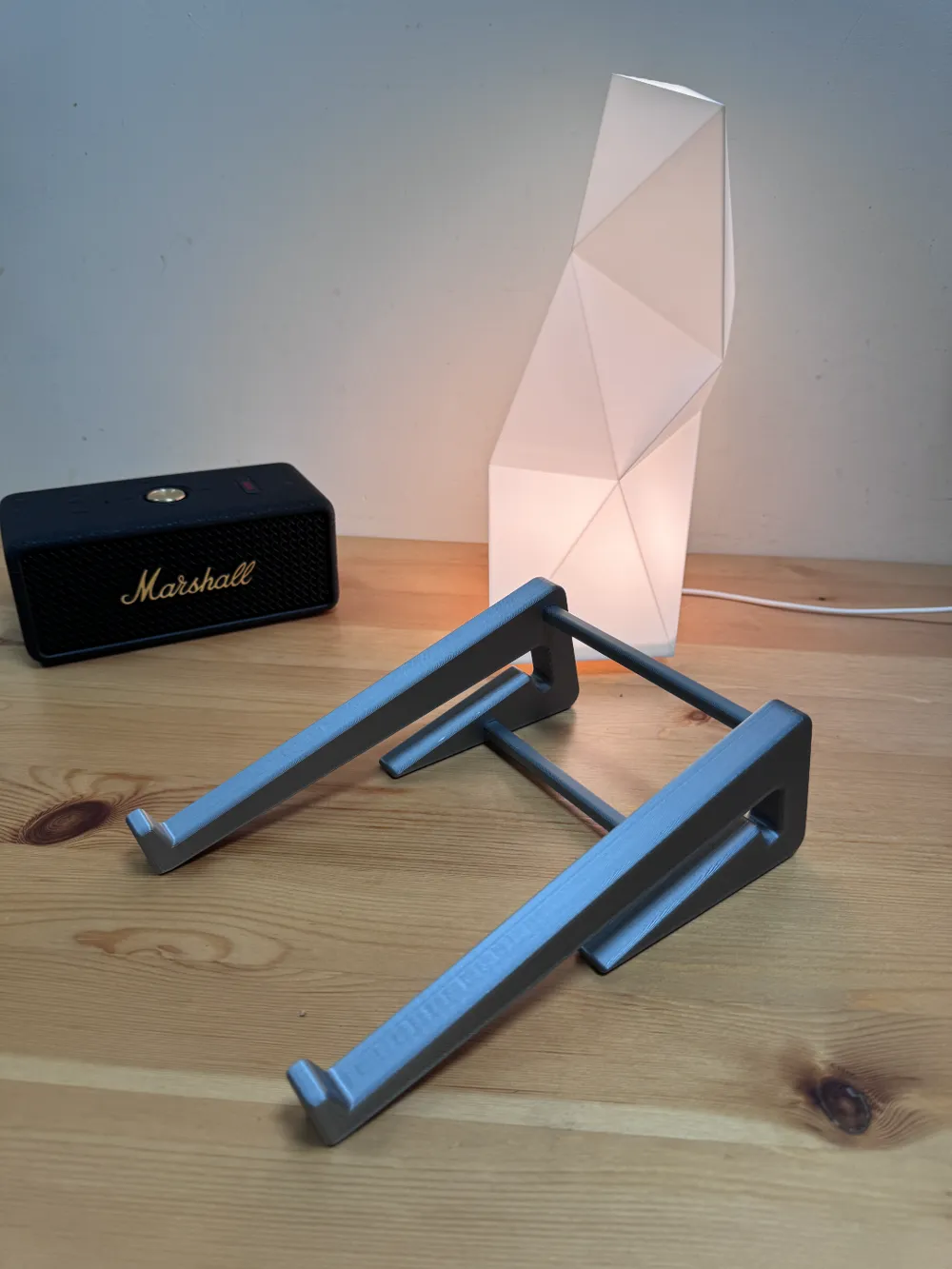

This "Portable Laptop Stand for Travel" is equipped with four sets of magnetic arrays inside, effectively holding all the components together to prevent scattering in your backpack. When needed, the user can simply take out the hidden horizontal bar inside, insert it into the designated slots, and quickly assemble the stand without any tools.



這款「旅行用便攜筆電支架」其內部配置4組磁鐵陣列,能有效地將各個零件組合,避免在背包中散落。當需要使用時,使用者只需輕鬆取出隱藏在內部的橫桿,插入孔,即可迅速組裝完成,無需任何工具。

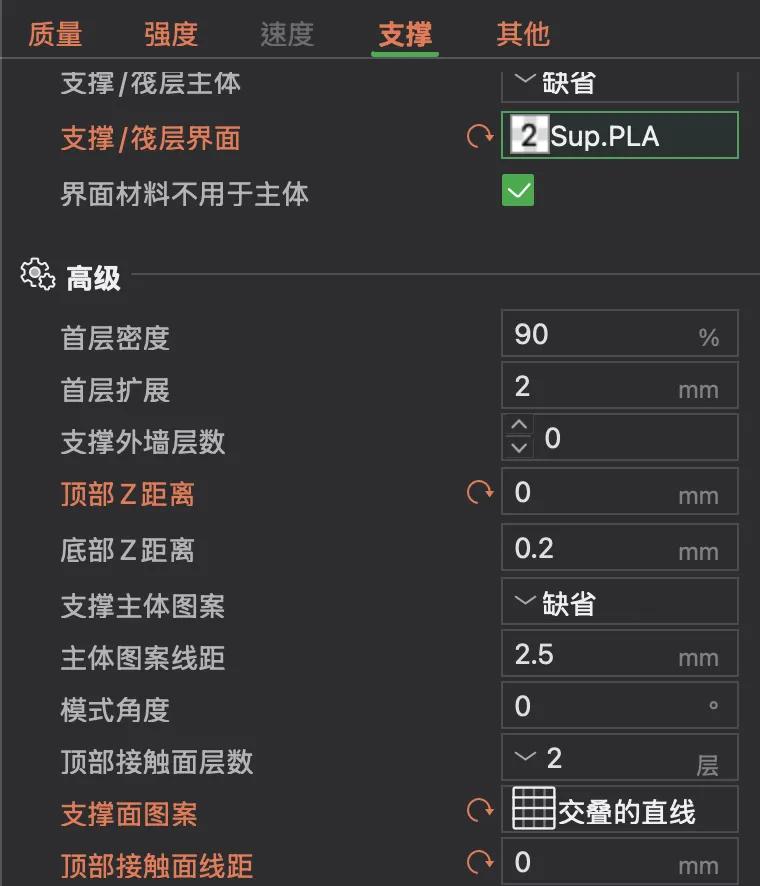

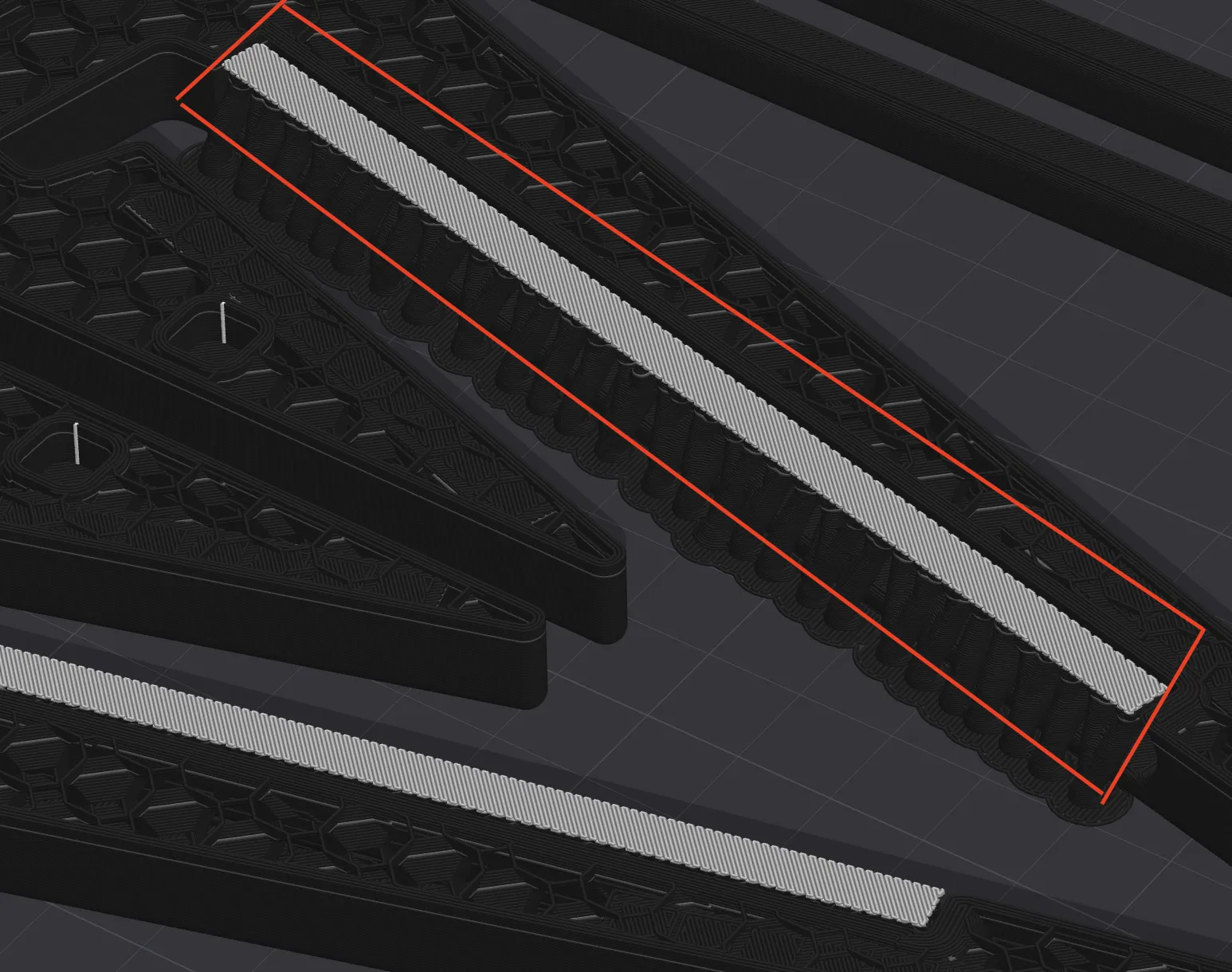

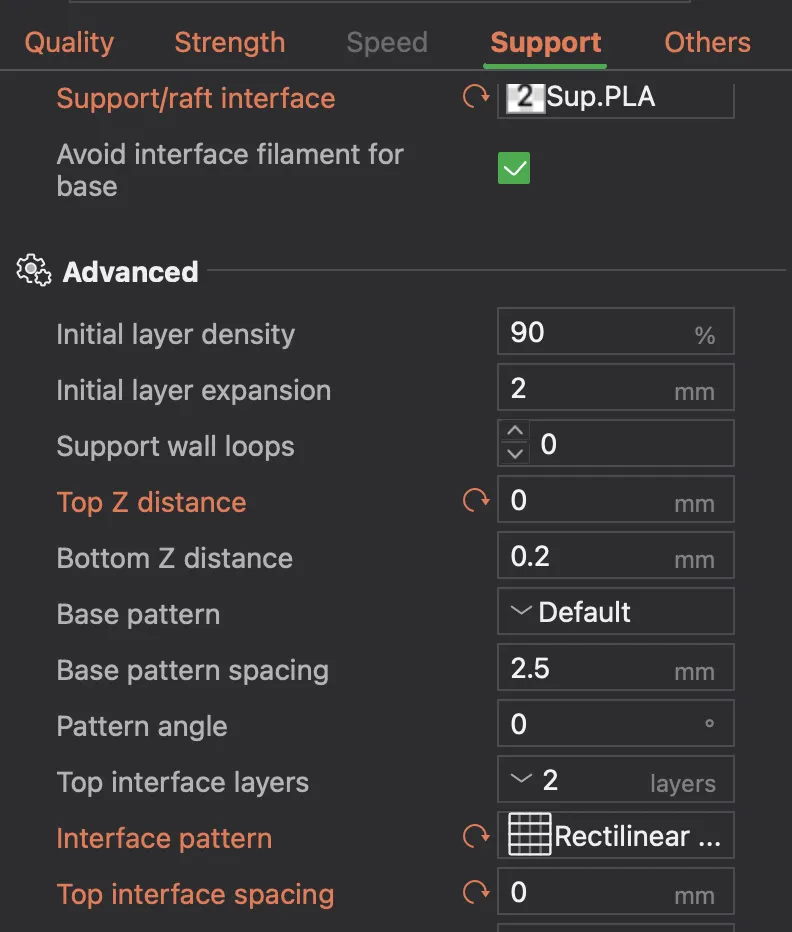

Printing Instructions: During the print, pause and place 5x5x5mm magnets (optional if you don’t have them; versions supporting other magnet sizes will be added in the future). Use support material for the horizontal bar slots, and print with PETG and PLA for multi-material support.



列印說明:使用暫停列印時放置5x5x5mm or 30x10x3mm磁鐵(如果你沒有可以不放,未來將加入其他尺寸的磁體版本),橫桿插槽的支撐使用支撐材料,PETG與PLA的異材質。



The size of 4.7x4.7x4.7mm is based on my existing magnet design.



Its specification is 5 cubic meters but it is actually 4.7 cubic meters.



I added the correct 5 cubic configuration file.



The size of 30x10x3mm is designed based on the materials in Maker's Supply, and the settings may need to be fine-tuned depending on the printer.



4.7x4.7x4.7mm的尺寸是依照我現有的磁鐵設計,他的規格是5立方實際卻是4.7立方。

我新增了正確的5立方的配置檔案。。

30x10x3mm的尺寸是依照Maker's Supply中的材料設計,依照列印機不同可能需要微調設定。



**The magnet hole is designed to be smaller so that the magnet can just get stuck and not be attracted by the nozzle and fall out.

**磁鐵孔設計的較小,使磁鐵可以剛好卡住,不被噴頭吸引而掉出

Bill of Materials

Maker’s Supply Kits and Parts
List other parts
  • 5x5x5 mm 矩形磁铁 x 40

Buy Now
Download BOM

Comment & Rating (12)

(0/5000)

Print Profile
support material-4.7x4.7x4.7mm magnet
super print!!
0
Reply
Works great
1
Reply
Print Profile
support material-5x5x5mm magnet
Support Filamant as interface above but not below support. By that removal of support very hard. did not see why it was not initially only set up "support only on plate". Depth of modell too short- by that leveraging a 14" laptop is not stable.
1
Reply
I printed it with x1c and couldn't fit 5x5x5mm cubic magnets in your model. I then measured the holes and they were 4.7x4.7mm. I will try to calibrate my printer for printing dimensions and retry.
The designer has replied
0
Reply
You were right—I measured and found that my magnet specifications didn’t match the actual size. I’ll update my configuration with the correct 5mm dimensions. Thanks for your feedback, and apologies for any confusion caused by my oversight.
1
Reply
Print Profile
support material-4.7x4.7x4.7mm magnet
Printed great! It's very nice how compact it can fold in on itself and be super sturdy while assembled and in use. Thank you for such a useful model!
0
Reply
Print Profile
support material-4.7x4.7x4.7mm magnet
Exceptional design! Functions very well in a thin laptop case even without the magnets The supports may need slight sanding, otherwise they are difficult to remove from the stand
Show original
0
Reply
Print Profile
support material-4.7x4.7x4.7mm magnet
gut
0
Reply
Print Profile
support material-4.7x4.7x4.7mm magnet
Support Issue:The way the supports have to hold up the spaces for the crossbars makes the model very difficult to clean. The cross bars themselves are such a tight fit that even with some sanding to try to get them in easier, one of them snapped when I was trying to install it. The front lip also isn’t tall enough for either of my laptops, so they just slide off the front. I will have to design my own, for this reason alone.
1
Reply
Print Profile
support material-4.7x4.7x4.7mm magnet
0
Reply
Print Profile
support material-4.7x4.7x4.7mm magnet
0
Reply
