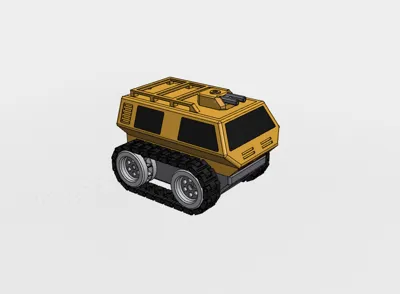

RC mini tracked armored vehicle by CCFDIYMakerWorld: Download Free 3D Models

CCFDIY

Hobby & DIY>Vehicles

IP Report

GIF

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

H2D

0.2mm layer, 5 walls, 20% infill

Designer

8.6 h

1 plate

5.0(4)

Open in Bambu Studio

Boost

131

Released

Description

Two TT motors are required (if both axes need to be cut off one side).

A set of any remote control motherboard is required (can be removed from old toys).

4 screws of M3*30, 2 screws of M2*10 (or use your own existing screws as long as it can be used).

Comment & Rating (11)

@user_1203450794

21700 with terminals, Type-C charging and protection board

Show original

@user_1203450794

Thanks @ccf for sharing, here's a picture in return

Show original

@user_1203450794

Remote Control

Show original

@Wolfie451

Print Profile

0.2mm layer, 5 walls, 20% infill

added images, shows the esc I used purchased from Aliexpress, I'm using fs i6s and 6ch receiver currently, but have a micro receiver coming and then I will tidy the wiring and add an on/off switch.

@user_2520239835

Boosted

Good design, but the original settings make the top half too heavy so it rolls over a lot.

@user_1203450794

FPV+LED Strip

Show original

@user_1203450794

A universal fixed base for 21700+ batteries, with just enough room for two batteries, plus a protective plate and a charging board.

Show original

@user_3488882206

That is great! Thanks for sharing.

@user_1645644091

Print Profile

0.2mm layer, 5 walls, 20% infill

@StrangeLilBots

Print Profile

0.2mm layer, 5 walls, 20% infill

@guinguin

Print Profile

0.2mm layer, 5 walls, 20% infill
