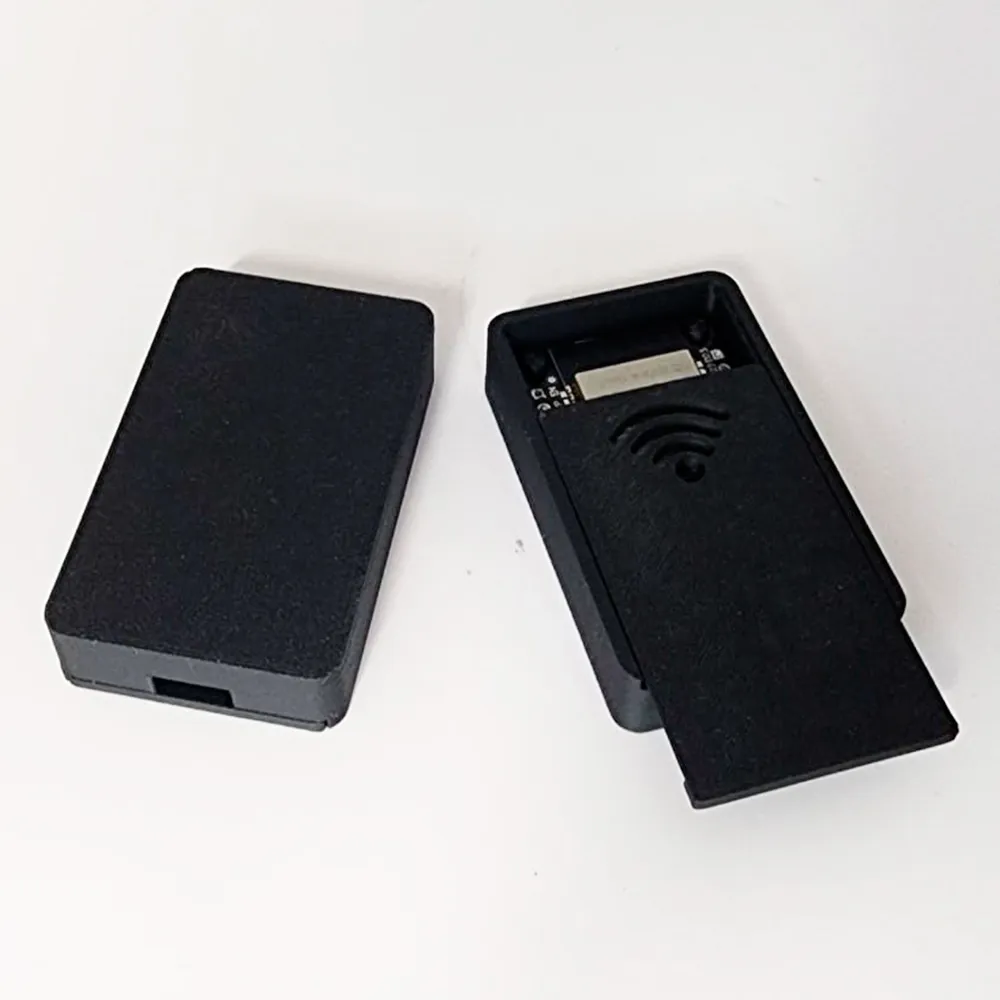

A small case/box designed to house and protect ESP32-Wroom-32D boards without pins, enabling direct soldering to the board and routing necessary wires out the back (opposite the USB Type-C port).
I find these incredibly useful for my WLED and other projects, and I hope you will too.
A sliding lid ensures ease of use.
Numerous manufacturers produce these chips, so the board's holes may be slightly misaligned. If necessary, trim the upper centering guides.
