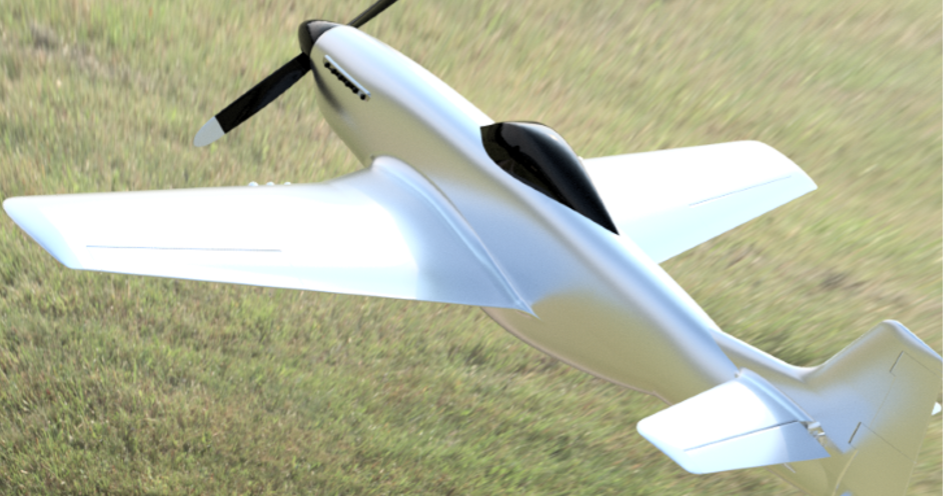

P-51 Mustang From WWII!

Remixed by
IP Report

P-51 Mustang From WWII!

Remixed by
Boost
89
151
51
GIF

Print Profile(0)


Add the first print profile to earn points

Boost
89
151
51
7
190
0
Released

Description

All information can be found here: (Parts, details, etc.) Free Plans 3-D Printed P51D RC Airplane!!! (youtube.com)

Link for Cura Profile: https://www.dropbox.com/scl/fi/r5n8h21xh9chg2lkvq9n5/profile-for-mdot.curaprofile?rlkey=jj8u7m408t6ga6fpui96m39ya&st=rbuph7n3&dl=0

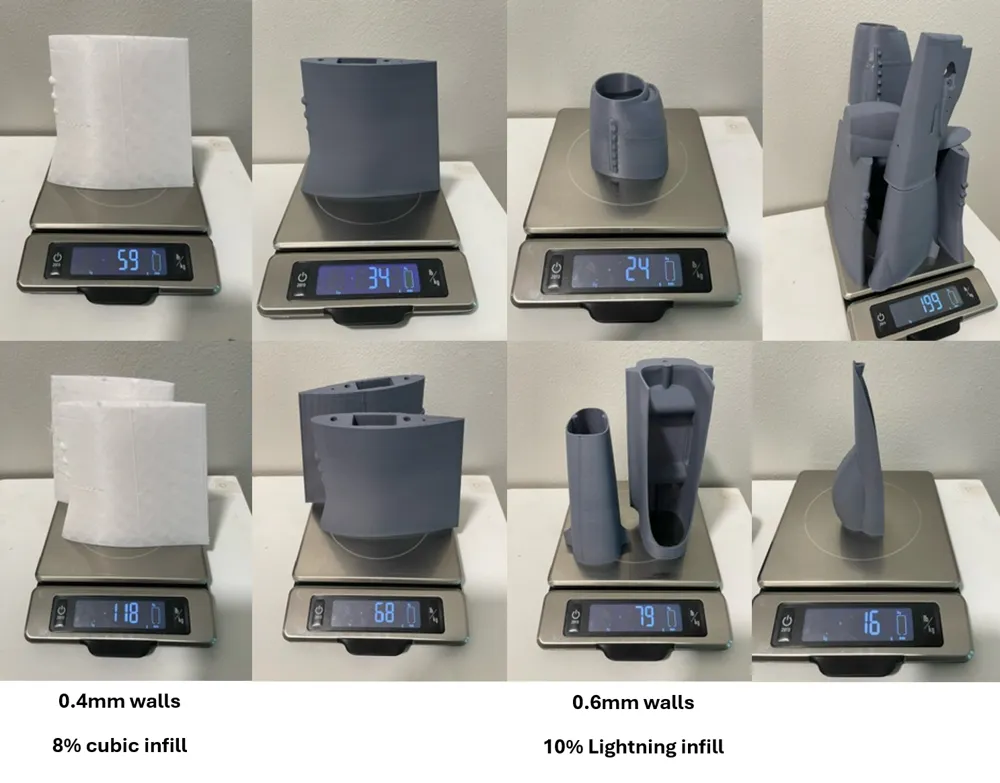

https://www.youtube.com/watch?v=sm94YOQ8hvg . As seen in the photo, I was able to print almost all the pieces at once on my Ender 3 V3 SE! G-code for ender 3 are attached! I do recommend using G-code, but if you are not, side walls 0.8 for more strength, 0.6 for better performance, 10% lightning infill. I have printed 3 models so far and I think either thickness is ok. Helpful photo:

Interesting finding, will research this more:





Remix info: Everyone in the comments on this plane said it didn't fly, so I wanted to figure out why, if you print the g-codes which are 0% infill and 0.6 walls, it should turn out, the one thing I did alter was the spinner base, it does not fit so I modified it to. I also made landing gear and pins to connect the parts!



Comment & Rating (51)

(0/5000)

so when i downloaded the files the most i can get the center bodies down to was 170 grams can you post a print profile
The designer has replied
1
Reply
I think that is good, just do the lightning infill and 0.4 walls for top and bottom. The whole thing should weigh a total of about 260g.
0
Reply
Replying to @RobertGRitz :
oh and one more question is the battery included in all of the parts link or should i buy a seperate battery
0
Reply
Yes, that is good! the wings are small.
0
Reply
whats the nose cone called in the file
The designer has replied
0
Reply
It’s a 3mf, it’s called spinner nose I think
0
Reply
Replying to @RobertGRitz :
thank u i got it
0
Reply
Replying to @Phoenix9378 :
Welcome, all good! Happy new year!
0
Reply
Is it okay If I use less infill? Because I can't get it lesa than 310 g with lightning infill. Also,how many walls is 0.6?
The designer has replied
0
Reply
Sorry, 0.4mm walls, 0% infill works too!
0
Reply
Replying to @RobertGRitz :
Thanks!
0
Reply
Replying to @user_1213140476 :
Thanks for the boosts!! How many do you need to get stuff? I am kinda new to makerworld.
0
Reply
very nice plane p51 mustang I'm starting to print the model and I was wondering as I'm a bit confused for the settings is it 04 falls and 10 percent infill lighting thank u for the free model I'm using orca slicer
(Edited)
The designer has replied
0
Reply
Yes, its 0.4 walls and 10% lightning infill! Thanks! I think I will be designing a airbus a220 with 3d printed edfs that use a2212 motors!
1
Reply
Replying to @RobertGRitz :
brilliant thank u Robert for ur reply . the airbus a220 sounds awsome to build im very intrested in that as well thnk u
0
Reply
Replying to @user_3823856475 :
Thanks!
1
Reply
Does it matter what electronics I use? Also I can see that the servos are 90g right?
(Edited)
The designer has replied
0
Reply
sg90 are the servos, as long as it fits, you can use any motor, and you can use the remote of your choice. Lots of info can be found here: https://www.printables.com/model/1017348-p-51-mustang-from-wwii
0
Reply
Replying to @RobertGRitz :
Sorry to bother you again but what diameter do the steel rods need to have?
0
Reply
Replying to @user_1213140476 :
0.8-1.2mm
0
Reply
FYI the way this was uploaded only allows you to use the A1 mini and if you try to change printer or filament it erases all the parts from the bed.
The designer has replied
0
Reply
Oh, use the stl files and they will work!
0
Reply
Thats what I used to get those 3mf's anyway.
0
Reply
Replying to @RobertGRitz :
that’s what I ended up doing. I was just trying to use the premade plates.
0
Reply
Do you know where the CG is?
The designer has replied
0
Reply
About 30% of the wing
0
Reply
about 1/4 front leading edge
0
Reply
1/4 of the wing
0
Reply
After printing all the pieces the total weight was 438 grams, does that sound good
The designer has replied
0
Reply
Um, what did you do wrong? 0.4 walls and 10% lightning infill. I sliced up the files and came out as 262g. Not sure what you did. it's pretty simple.
0
Reply
Replying to @RobertGRitz :
i did what you listed and commeted cuh so maybe dont remix a model and leave out info and then tell me the exact settings that give me the weight over 400 grams
0
Reply
Replying to @ThatGuyPrints :
Sorry sir but the part of my remix was instructions to print this 0.4 walls and 10%LIGHTNING infill. You did not follow instructions.
0
Reply
Does it need supports?
The designer has replied
0
Reply
no
0
Reply
no, no supports are needed
0
Reply
Could you please post a link for the receiver and remote that are compatible with the complete kit?
The designer has replied
0
Reply
You can use any transmitter, if you don’t want to spend much, just buy the cheapest one you find
0
Reply
