Description

[Introduction]

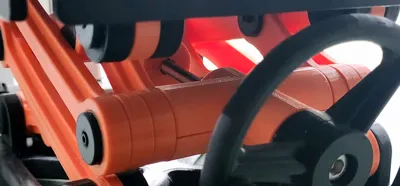

A Lift Table! I've always wanted to go full bent and do a lift table model that utilizes bearings. I'm not even entirely sure it needs it, other than that I wanted it. This is one in a series of lift tables, with slightly different configurations. This version utilizes 608 bearings throughout for the main linkages.

This version has a base height of 125mm with an extended height of 265mm.

[Printing Info]

The central lift assembly utilizes supports you'll want to clean up before you get started with the feet.

There's TPU feet! You can print them in PLA if you don't have any TPU, or leave them off altogether, if you wish.

[Hardware & Filament]

(Full disclosure, I am part of the Bambu Affiliate Program. All Bambu store links are affiliate links. I earn a small commission from these links without any added cost to you. These links help to support me so I can bring more content for free!)

Featured Filaments:

Bambu PETG HF Orange
Bambu PETG HF Black
Bambu TPU 95A HF

Hardware:

(Full disclosure, I am part of the Amazon Affiliate Program. All amazon links are affiliate links. I earn a small commission from these links without any added cost to you. These links help to support me so I can bring more content for free!

I use screws from Bambu's Makersupply, and mainly design around those. However, you can purchase self tapping screws from amazon if that's easier for you. I'd recommend an assortment like this Amazon US.)

Important!: This build uses a more diverse selection of hardware, so be aware. The majority of the hardware can be purchased through the MakerSupply. Except for the M8 Bolt and Nuts. Likewise, Most of the hardware can be easily purchased on Amazon, except for the F8-14M Thrust bearing.

30x BT3x8mm Self Tapping Screws (If you don't get the Bambu ones, grab the assortment kit listed above, or something like it, if you don't already have the needed screws)
4x BT3x14mm Self Tapping Screws
25x 608ZZ Bearings (You can get 608ZZ Bearings off of Amazon, such as These.)
2x MR128ZZ Bearings (Like this from Amazon)
1x F8-14M Thrust Bearing (You can find these on Amazon and other sources, but Amazon doesn't sell them directly. Would recommend purchasing from Bambu)
1x M8x150mm Hex Cap Machine Screw (Like this one from Amazon)
2x M8 Nuts (Like this one from Amazon)

[Assembly]

Insert the bearings in the other links too

For the handle, we'll use 2 MR128ZZ Bearings, inserted on other side of the wheel. The axle pushes through and is secured with a M3x8mm Self Tapping Screw.

We'll attach the back side of the wheel using 3 M3x8mm self tapping screws. We'll also insert the M8 screw through the wheel, and insert a nut onto the other end. The nut fits into the base of the wheel. Tighten down the M8 screw to keep it secure.

Now for the main lift mechanism. There's a couple of things we need to do here. Firstly, we'll insert the M8 nut into the one side. On the side with the wheel, we'll put the F8-14M Thrust bearing and then the regular bearing onto the M8 Screw. We'll then insert the whole assembly into the casing. The wheel is ridged to help secure it in place. Under load it should press up against the thrust bearing and rotate smoothly.

From there, we'll use 4 M3x14mm Self Tapping Screws to secure the axles. We'll use 6 M3x8mm screws to clamp the rest of the assembly together. Once assembled, screw the two halves together.

Now for the tricky part. We need to assemble the links onto the main lift mechanism. Pay close attention to the way everything is orientated in the illustration.

Let's get the base and top ready by inserting the axles partly into the holes.

Align the main lift assembly with either the base or top. Push the axles in to secure it in place, and then use M3x8mm self tapping screws to secure everything.

Last, but not least, secure the feet in place with M3x8mm screws.

That's it for the assembly.
-------

If you like my work, consider showing your love by Buying me a coffee. Additionally, if you're looking to sell prints of my design, please check out my Patreon page for more information. on.
