PUMP-2000: Customizable, Shell-Ejecting Toy Blaster (Plinker V3.5 Series)

This is a toy that fires a projectile! Never fire at pets or unwilling participants. This can damage drywall, use caution and protective eyewear. Never brandish this as a real weapon or bring it out in public. Just because you know it's a toy, doesn't mean other people will. Enjoy, be safe, and be smart!

DISCLAIMER: I am an amateur self-taught designer who creates these toy for free in there spare time. If you are looking for an easy 100% reliable toy blaster, I would recommend buying a nerf/airsoft gun or checking out some of the other incredibly talented designers with beta-tested models, readily available parts-kits and much better documentation (i.e. Spyr & Sillybutts on printables). If you're still here, Thank you and I hope you enjoy! Please feel free to reach out with any questions, concerns or constructive criticism

Introducing the PUMP-2000:

My best blaster yet, in terms of power, ease of use & assembly. This blaster boasts decent power and range, plus lots of different customization options, including a bolt-action conversion!

Features & Options:

Realistic Shell Ejection with printed, re-usable ammo.
Pump Action or Bolt-Action with minimal part changes.
3 - different Magazine options.
Sawed-off pistol grip or Full-stock with integrated grip.
Printable optic.
Compatible with KDS-MAC & BUMP45 Ammo.

A1 MINI BOLT-ACTION PISTOL NOW AVAILABLE

WHAT TO PRINT?

For the bare minimum required for a functional pump-action unit, using the least time and filament, please see the below list:

USAGE: 500g Filament - <20 Hours

Upper Frame
Lower Frame
Front Cover
Rear (Stockless)
Pistol Grip
Trigger
Striker
Striker Latch
Pump
Linkage Arm
Linkage Bar
Muzzle
Magazine Catch
Magazine
Magazine Follower
Magazine Base
Magazine Base Backing

FUNCTION VIDEO:

BUILD VIDEO:

PRINTED PARTS:

PART:	WALLS/TOP/BOTTOM:	INFILL %:	SUPPORT REQUIRED:	RECCOMENDED MATERIAL:
Lower Frame	3+	15%	Organic - Hybrid	Any
Upper Frame	3+	15%	Organic - Hybrid	Any
Front Cover	3+	15%	None	Any
Rear (Stockless)	3+	15%	None	Any
Grip-Stock	3+	15%	Organic - Hybrid	Any
Bolt	5+	25%	Organic - Hybrid	PLA, PLA+, PETG, Strongest Material you can Print (No Matte or Silk)
Striker	5+	25%	Regular - Normal	PLA, PLA+, PETG, Strongest Material you can Print (No Matte or Silk)
Trigger	3+	15%	None	PLA, PLA+, PETG (No Matte or Silk)
Muzzle	3+	15%	None	Any
Magazine Catch	3+	15%	None	PLA, PLA+, PETG (No Matte or Silk)
Pump Linkage Arm	5+	25%	None	PLA, PLA+, PETG (No Matte or Silk)
Pump Linkage Bar	5+	25%	None	PLA, PLA+, PETG (No Matte or Silk)
Charging Handle Linkage Bar	5+	25%	None	PLA, PLA+, PETG (No Matte or Silk)
Charging Handle	3+	15%	None	Any
Pump	3+	15%	None	Any
Pump w/ Foregrip	3+	15%	None	Any
Foregrip	5+	25%	None	PLA, PLA+, PETG (No Matte or Silk)
Handguard	3+	15%	None	Any
Pistol Grip	3+	15%	None	Any
Magazine	3+	15%	None	Any
Long Magazine	3+	15%	None	Any
Magazine Follower	3+	15%	None	Any
Magazine Base	3+	15%	None	Any
Magazine Base Backing	3+	15%	None	Any
Drum Magazine	3+	15%	None	Any
Drum Magazine Follower	3+	15%	None	Any
Drum Magazine Cover	3+	15%	None	Any
Drum Magazine Linkage Bar x 8	3+	15%	None	Any
Drum Magazine Linkage Connector x 10	3+	15%	None	Any
Drum Magazine Spring Cover	3+	15%	None	Any
Grip Panel x2 Mirrored	3+	15%	None	Any
Cheek Rest	3+	15%	None	Any
Stock Butt	3+	15%	None	Any
Stock Butt Connector Pin	3+	15%	None	Any
Dot Sight	3+	15%	None	Any
Dot Sight Reticle	3+	15%	None	Any
Bullet	3+	15%	Brim	Any
Casing	3+	15%	None	Any

POST PROCESSING: I tried my best to ensure that no post-processing would need to be done, besides support removal, but due to the overhang in the magazine catch slot there will be some cleanup required.

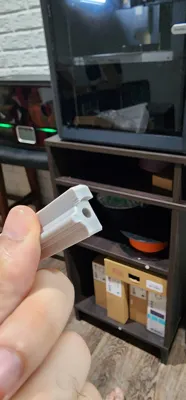

MAGAZINE CATCH - Use a metal file to clean up and remove any sagging filament or remaining support material in the magazine catch slot (lower frame). Sand the sides of the magazine catch down so that it slides easily into the slot and moves backwards and forwards with minimal resistance.

PLEASE READ!!! IMPORTANT NOTES ON STRIKER, BOLT AND AMMO.

Striker: If printing in PLA the tip of the striker WILL flatten overtime, reducing power and accuracy. I recommend printing it with the strongest material you can print, to avoid having to change it out with frequent use.

Bolt: The extractor on the face of the bolt is another item that I recommend printing with stronger materials if possible. If shells fail to eject or are falling through the barrel, make sure the extractor is still protruding enough to catch the notch in the bullet casings.

Ammo: Ideally, the bullet and casing should snap/friction-fit together tight enough that they wont separate when dropped, but not so tight that they cant be pulled apart by hand with a little effort. The bullets/projectiles require a fair bit of precision for a proper fit so if your machine & settings aren't well tuned you may run into fitment issues. If the bullets are to tight or loose, try printing another batch with a different filament and mix-and-match the casings and projectiles. A metal file can be used to gently shave a little material of the bottom of the bullet if fitment is consistently too tight.

HARDWARE: M3 FASTENERS

Length (mm)	Number Needed	Usage:
M3 x 8	2	Foregrip - Pump
M3 x 12	6	Front Cover - Lower Frame - Upper Frame
M3 x 18	1	Magazine Catch
M3 x 20	8	Trigger, Striker Latch, Grip.
M3 x 25	2	Rear, Stock
M3 Hex Nut	19

HARDWARE: COMPRESSION SPRINGS

Wire Diameter: (mm)	Outer Diameter: (mm)	Length: (mm)	Usage:	Source:
0.8 -1.0 mm	10 mm	90 mm	Striker	AliExpress or Hardware Store*
0.3 - 0.5 mm	<5 mm	15 mm	Striker Latch	BIC Mechanical Pencil/Pen
0.3 - 0.5 mm	<5 mm	20 mm	Magazine Catch	BIC Mechanical Pencil/Pen
0.8 mm	10 mm	75 mm	Short Magazine	AliExpress or Hardware Store*
0.8 mm	10 mm	150 mm	Long Magazine	AliExpress or Hardware Store*
0.8 mm	10 mm	195 mm	Drum Magazine	AliExpress or Hardware Store*

*SOURCING SPRINGS: Compression springs in the exact lengths needed will be almost impossible to find, I purchased 300 mm long springs from AliExpress and cut them down the required sizes. I have used springs from both Seiko Hardware Store and Chong-su Spring Store on AliExpress but there are many other vendors available. Use the wire diameter and outer diameter to help guide your purchase.
