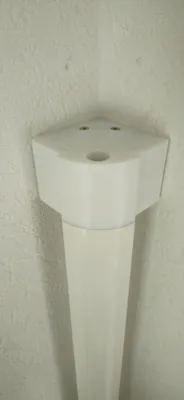

This is a aluminium extrusion wall light.

This is an aluminum extrusion wall light. For indirect lighting by inserting common LED strips. My model was built with the following components.

Some corner extrusion. In German it is called aluminum corner profile 4040 nut 8 i type.

Here a link where i bought it: 4040 Nut 8 I Type

What is important here is that the profiles are type i.

Then you need some led strips. I included holder for 12, 10, 8mm strips.

I used the relative new 2814 24V COB+W Strip.

Also needed a controller.

To assemble the printed parts we need 8mm screws with a length of at least 45mm. Allen screws are best suited. You also have to cut a thread into the profile. The holder so that you cannot pull the light upwards is screwed into the plastic with 2 wood or sheet metal screws. For wall mounting at least 6x40.
