A1 MINI X-AXIS CABLE PROTECTOR DEADPOOL DRAG CHAIN by Tarzan

Tarzan

3D Printer>3D Printer Parts

IP Report

GIF

Print Profile(2)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill

Designer

2.9 h

1 plate

4.3(4)

0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill

Designer

20.2 h

3 plates

3.7(6)

Open in Bambu Studio

Boost

216

Released

Description

I RECOMMEND USING NOZZLE 0.2 AT LEAST FOR THE LID OTHERWISE THE CHARACTERS ARE NOT DISPLAYED BY THE SLICE. FOR THE OTHER DISHES 0.4 IS ALSO FINE, IT PRINTS WELL AND FAST WITH 0.4. I PRINTED THE COVER WITHOUT AMS, YOU HAVE TO SELECT ONE COLOR AT A TIME AND THEN CHANGE THE FILAMENT (WITH MORE CONVENIENT AMS).
HAPPY PRINTING.

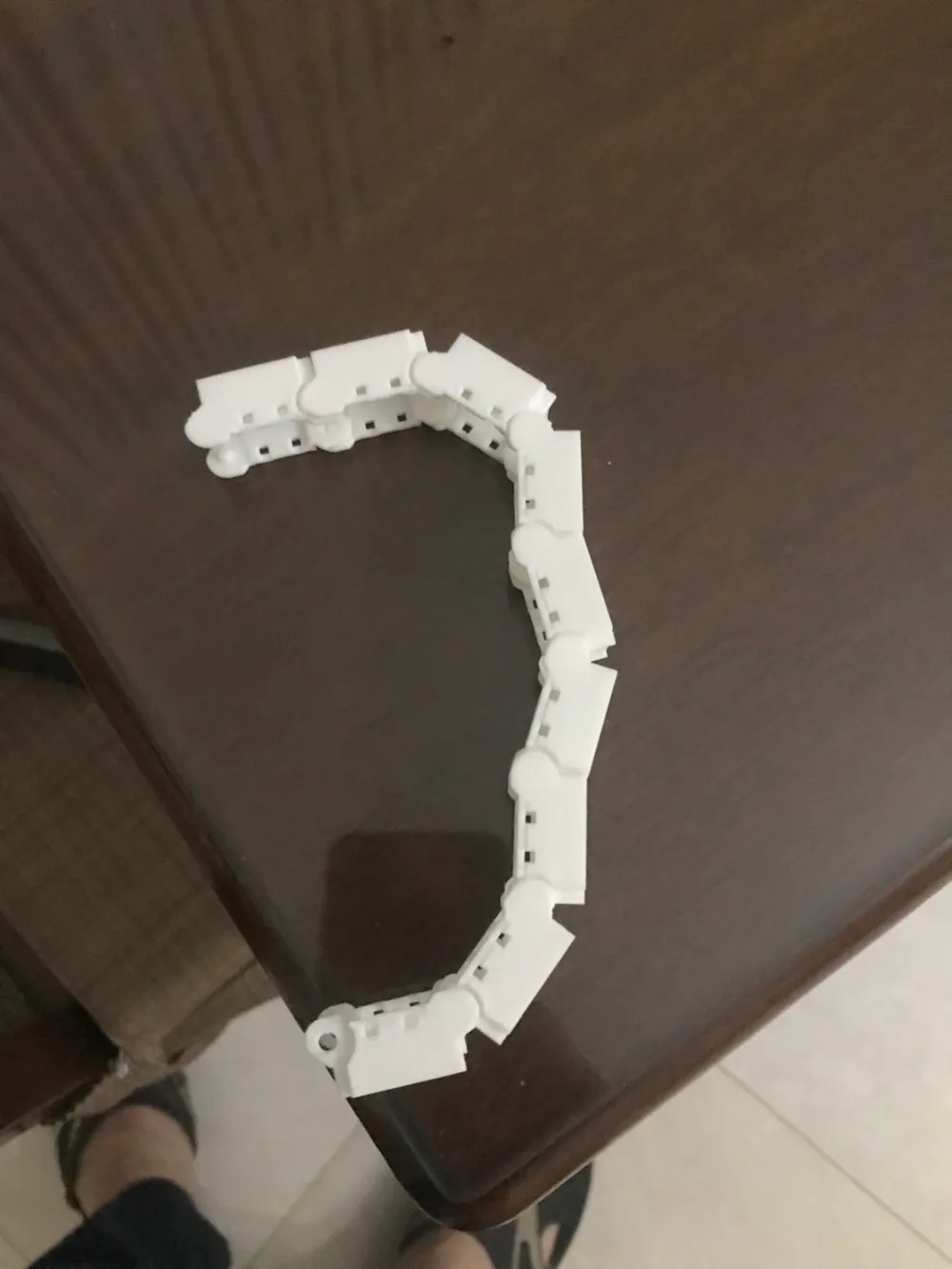

This is important, there are three types of chains. The largest must be hooked to the base (it can also be recognized by the double lock of the cable), the other which has a different configuration from all must be applied to the upper part leaving the empty part to accommodate the wire downwards, the others are all the same, paying attention to the joints.
Let me know if you need any help, please feel free to contact me.

Boost Me (for free)

HEY GUYS BOOST ME FOR MY WORK. THANKS

Comment & Rating (25)

@Surius

Boosted

Hello Tarzan Thank you for this wonderful design After a bit of post-processing I am very pleased with the result One weak point—as already mentioned by armyvet97—are the tabs on the cover They broke very quickly for me as well One must be very careful during post-processing and assembly The cover also seems to be under considerable tension so that a small gap always forms in the lower area The clips for the chain initially did not fit for me either but with a little sanding it worked What is the large bracket (see arrow) on the Z base for Is there also a version without this bracket

The designer has replied

Show original

@Tarzan

One must proceed cautiously, securing one side before attending to the other

Show original

@ShayneTroxler

Print Profile

0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill

perfect.

@Tarzan

THANKS

@user_630324849

Print Profile

0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill

Okay, the clips weren't a perfect fit But they serve their purpose

Show original

@Tarzan

Thank you, with a little care and applying the right amount of force, position one side first and then firmly push the opposite side, I used a small tolerance, but I assure you that once it locks, it's for good Regards

Show original

@armyvet97

Print Profile

0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill

Strength Issue:the tab on the white plate broke as I was attempting to clip it on, the black backing tabs pop off as soon as you clip them on causing the chain to drop as pictured.

@Tarzan

Thanks for the photo there are three types of chains. The largest must be attached to the base, the other that has a different configuration must be applied to the upper part (the one that broke in the photo) being careful to mount it like the photo I enclose. You are not the first to print the model I don't understand how it is possible. let me know if you solve,

@PaperCreations

Boosted

Awesome design, thanks for the quick response and updated face plate!

The designer has replied

@Tarzan

you are welcome

@Tarzan

Thank you for the question. if you can, upload some photos. Thank you

@PaperCreations

Boosted

Any way you could share the cover without Deadpool on it?

The designer has replied

@Tarzan

now I add a new profile

@Tarzan

it's ready to download. thanks for your boost

@user_4078437506

How do I remove the top cover

The designer has replied

Show original

@Tarzan

Hello, the lid is stuck To remove it, I pulled firmly, don't worry, you won't break anything Let me know if you find a solution Thank you

Show original

@Erz3ngelG4briel

Print Profile

0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill

Very well designed cablechain, fits perfect

@Tarzan

thank you

Show original

@user_1779067187

Boosted

Cool design

@Rahvin3

Print Profile

0.2mm nozzle, 0.1mm layer, 4 walls, 15% infill

Great addition, some clips broke first time I used them, but found the way to make them work in the end
