Description

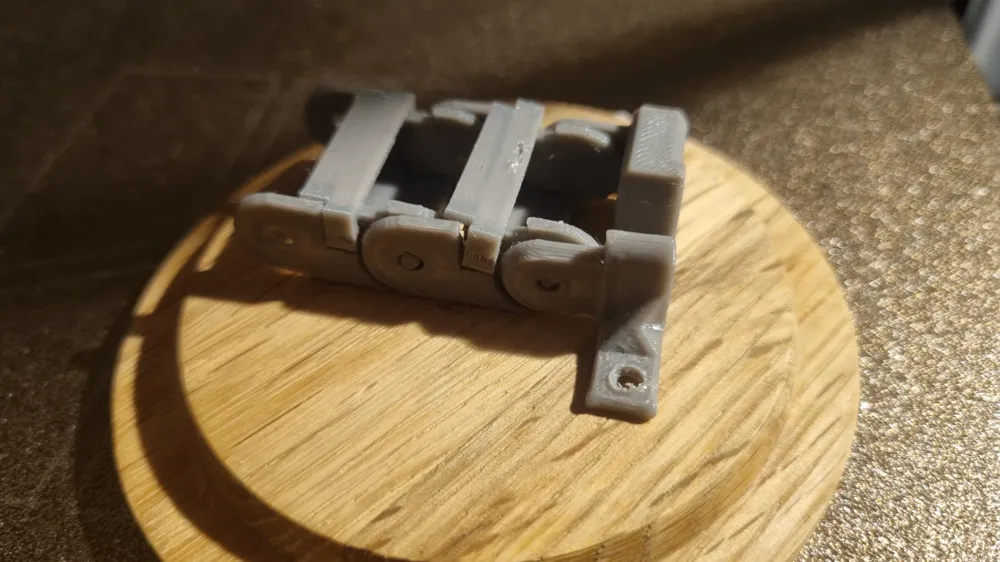

This updated heatbed cable chain bracket is designed specifically for the newer heatbeds on the Bambu Lab A1. It securely attaches to the heatbed using the existing 2.5mm screw, ensuring a stable and reliable connection. The bracket is compatible with the cable chain links from Dalelovelace's A1 cable chain for the old heatbed.

I recommend printing the bracket in PETG or ASA for improved durability and heat resistance.

The installation process is straightforward: simply remove the 2.5mm screw located under the heatbed (use photo above as a guide), position the bracket, and reattach using the same screw.

This solution maintains the same level of protection and flexibility for the heatbed cable as the original design, with the added benefit of compatibility with the updated heatbed model.

Link to Dalelovelace's A1 cable chain for the old heatbed:

https://makerworld.com/en/models/172115?from=search#profileId-204759

Hope you like my models, if you do please leave a rating and check my profile here

Maybe buy me a coffee, It really helps me as a aspiring design student, thanks!

Boost Me (for free)

Boost this model to support the growing community on Maker World and get tokens back!

Thanks!

Comment & Rating (57)

@Dave401

I feel like I just wasted a couple hours of my life between this piece and the recommended link u provided!! Just to find out that we still have one end just dangling? there's really no piece updated for this end only the other end this kinda sux

The designer has replied

@KT_0

Y̶e̶a̶h̶ I̶ t̶h̶i̶n̶k̶ I̶'m̶ g̶o̶i̶n̶g̶ t̶o̶ d̶e̶s̶i̶g̶n̶ t̶h̶i̶s̶ p̶i̶e̶c̶e̶ a̶s̶ w̶e̶l̶l̶ f̶o̶r̶ t̶h̶e̶ n̶e̶w̶e̶r̶ c̶a̶b̶l̶e̶, I̶l̶ u̶p̶d̶a̶t̶e̶ w̶h̶e̶n̶ i̶t̶s̶ d̶o̶n̶e̶ :̶-̶!̶

(Edited)

@BobbleheadKou

looks nice but I was almost going to print this but I don't like the look at that end you have shown in the picture. I'll hold off on that print myself

@Hazard0u5

Replying to @KT_0 :

hello, did you even make this piece?

@a69430a

Print Profile

0.2mm layer, 2 walls, 15% infill

An excellent design.

The profile uploader has replied

Show original

@KT_0

Great stuff man! Btw what is that camera you are using??

@a69430a

Replying to @KT_0 :

Xiaomi 2.5k wifi camera.

Show original

@bathorygod

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

good job

The profile uploader has replied

@KT_0

Looks great! Thanks for the feedback!

@Jordayne02

Can you upload a picture of the whole thing on the printer

The designer has replied

@KT_0

The cover picture shows it on the Printer, if you mean the chain links then I haven't gotten around to printing all of them but enough to show that the bracket works

(Edited)

@KT_0

@Jordayne02

Replying to @KT_0 :

thank you I will be giving it a try later

@JustinB83

does this keep the cable lower so the part cooling fan doesn't hit the cable when tool head cleaning?

The designer has replied

@KT_0

this version does not unfortunately, I will hopefully be releasing a version that solves that problem within a few days do be on the look out for that 🙌

@JustinB83

Replying to @KT_0 :

oh cool!!!!

@ArsinAtDawn

Since you scrapped the idea you should pull the model

The designer has replied

@KT_0

It works as it should and is useful even for remixes

@heffmeister

Wow do I feel like a prat - I spent an hour trying to figure out how two of these pieces make a link ..... I even went as far as asking the wife if she could work it out!! I must start reading the headings more closely :D Thanks for the bracket KTO. As a bonus, I have plenty of spares now

The designer has replied

@KT_0

Happens to the best of us 😂, I hope you enjoy it now!

@KT_0

The bracket is still a work in progress so any feedback would be greatly appreciated!

The designer has replied

@KT_0

If you find the bracket helpful please boost and like the model to help others too!

@NewMoney

Print Profile

0.2mm layer, 2 walls, 15% infill

Kept getting hung up and causing print problems. Took it off.

@JugglerNate

Print Profile

0.2mm layer, 2 walls, 15% infill

The print profile could have had some supports. Mostly my fault though as my PETG is not as dry as it should be. Still looks great!
