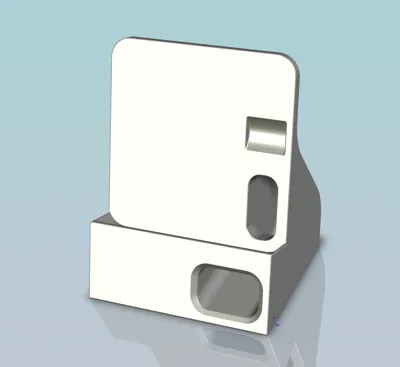

This model is a desk or bedside stand for the Rabbit r1. But it has a sound redirection tube in it to take the sound from the back of the Rabbit r1 and direct out the front. This improves the sound volume as instead of sending the sound away from you it redirects to you, but in the case of this design also boosts the sound up a little.

The design was a little tricky to get the areas that need support looking spot on but is pretty good except deep in the sound tube.

Printed in PLA

Layer Height - 0.15mm

Fill - 15%

Tree Support - Tree and on build plate only

Filament used - just under 65 grams

Time - just under 2hrs

Enjoy and please share any improved settings
