Gridfinity Wire Spool Holder/Dispenser by Longracks Labs

Longracks Labs

Tools>Organizers

IP Report

Print Profile(1)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

H2D

0.2mm layer, 2 walls, 15% infill

Designer

4 h

1 plate

5.0(43)

Open in Bambu Studio

Boost

223

724

553

263

Released

Description

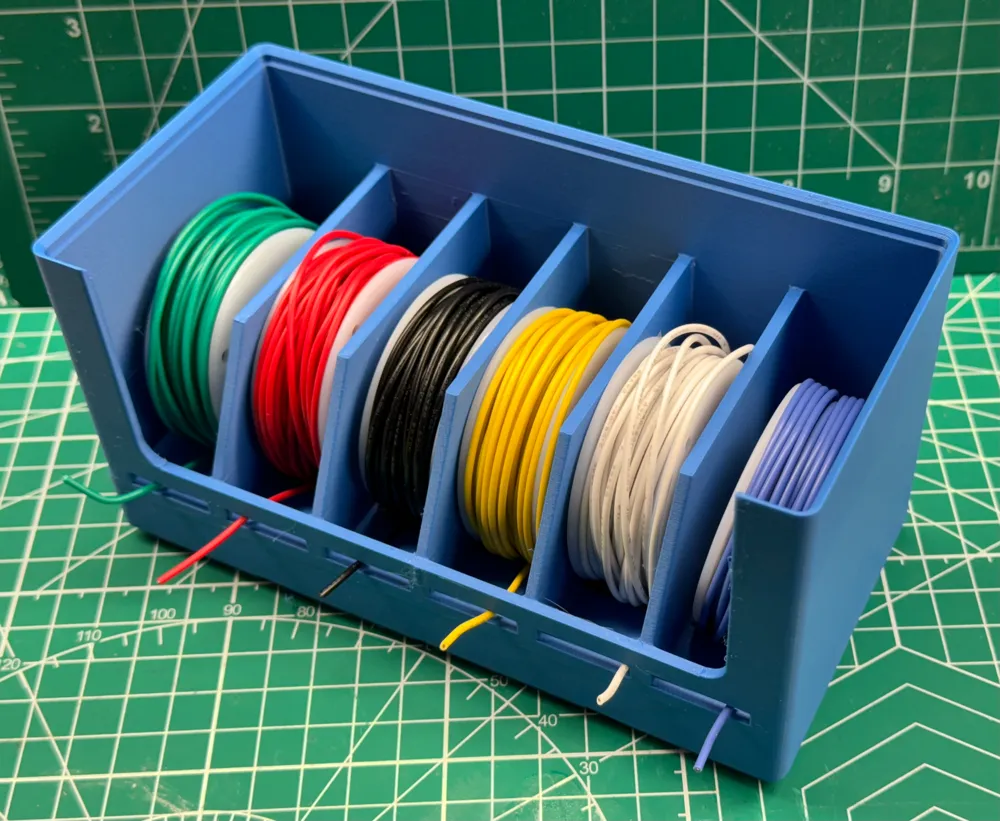

Keep your workspace organized and efficient with this custom-designed Gridfinity wire spool holder/dispenser. This 3D-printed holder features multiple compartments, each designed to hold different wire spools, keeping them neatly separated and easy to access. The front slots allow wires to be fed through smoothly, preventing tangles and ensuring you can quickly pull out the length of wire you need. The compact and modular design makes it a perfect fit for any maker's workshop, helping you stay organized and focused on your projects

Designed to fit 54mm diameter, 21mm thick spools such as these on Amazon: 22 AWG Solid Core Hookup Wires

gridfinity

wire

storage

Comment & Rating (60)

@SakuraGlitch

Super solid design, I adapted one a little bit and reduced the height by one unit and added magnet holes. It's enough space to remove one Height unit without problems.

(Edited)

The designer has replied

@LongracksLabs

very nice!

@LongracksLabs

did you make it a gridfinity "standard" height? if so let me know how high and I can change the model.

@SakuraGlitch

Replying to @LongracksLabs :

Yes i did. It's 10 units high now (so 74,4mm) . I also think it could be possible to reduce it even further to a height of 9.

@hotcupandco

Print Profile

0.2mm layer, 2 walls, 15% infill

seems a bit excessively tall, but perhaps I'm just using spools too small for its intent. works great and is just what I needed. thanks!

@LongracksLabs

Thanks for the feedback. I didn't think too much about the height - i think i just made it basically square.

@hotcupandco

Replying to @LongracksLabs :

nah, I'm just being overly picky haha it's a great design! With the added height, I'm actually curious if they could be stacked. it'd be pretty cool to have a stack of these - each a different wire size

@LongracksLabs

Replying to @hotcupandco :

yes I designed them to be stackable. I have stranded on one and solid wire in the other

@Synth80s

Print Profile

0.2mm layer, 2 walls, 15% infill

These were a great way to clean up my spools, always falling over and coming undone. Awesome model!

@xxNotorious

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Fits absolutely perfectly in my gridfinity drawer. Very sturdy too. So nice I printed two sets

@alexander.lakey

a really nice model, perfect for my needs. Printed perfectly, thanks! 😊

@Vivi_t3ch

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

printed out just fine for me, I look forward to tidying up my workflow even more for various projects

@Damiantos

Print Profile

0.2mm layer, 2 walls, 15% infill

works great thank you for uploading. I will be printing a second one.

@pnwnerd

Boosted

Great stackable spool holder for ~22 AWG wires

@pnwnerd

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

Fits the spools perfectly. Only addition might be a small insert or PTFE tube to keep the wire from rolling back into the spool when cut too short (just an idea). I used my 22 gauge wire here, now to find a scaled version for my 16 gauge set

@user_646941323

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

had to make this for my wires to sit very handy print ty
