Description

I noticed that Ikea's Skadis pegboards are perfectly sized to fit within their Billy bookshelf, so I made a part to help hang them. I used the 30" x 22" pegboard for the wider bookshelf and the free-standing 22" x 14 ½" pegboard for the narrower shelf. The 22" x 22" board would also work.

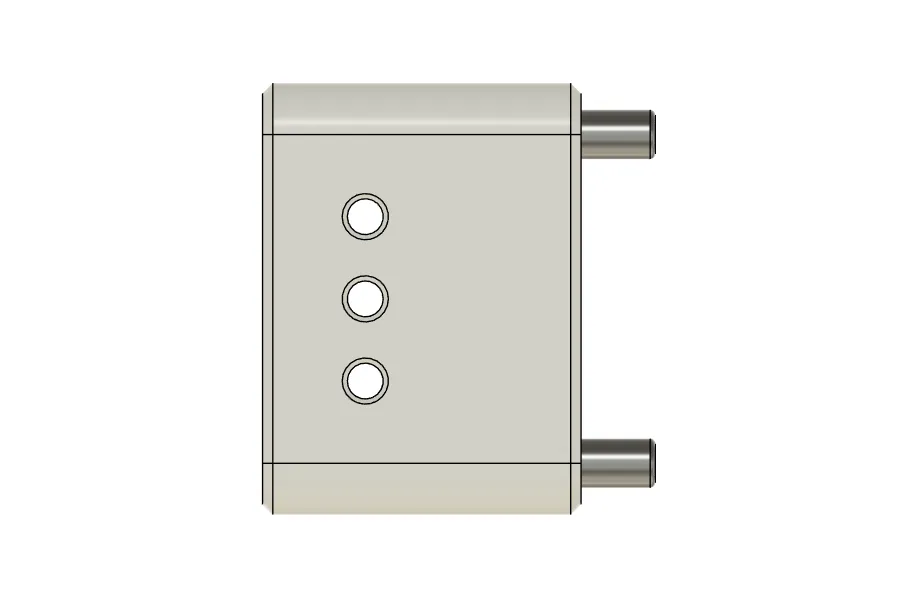

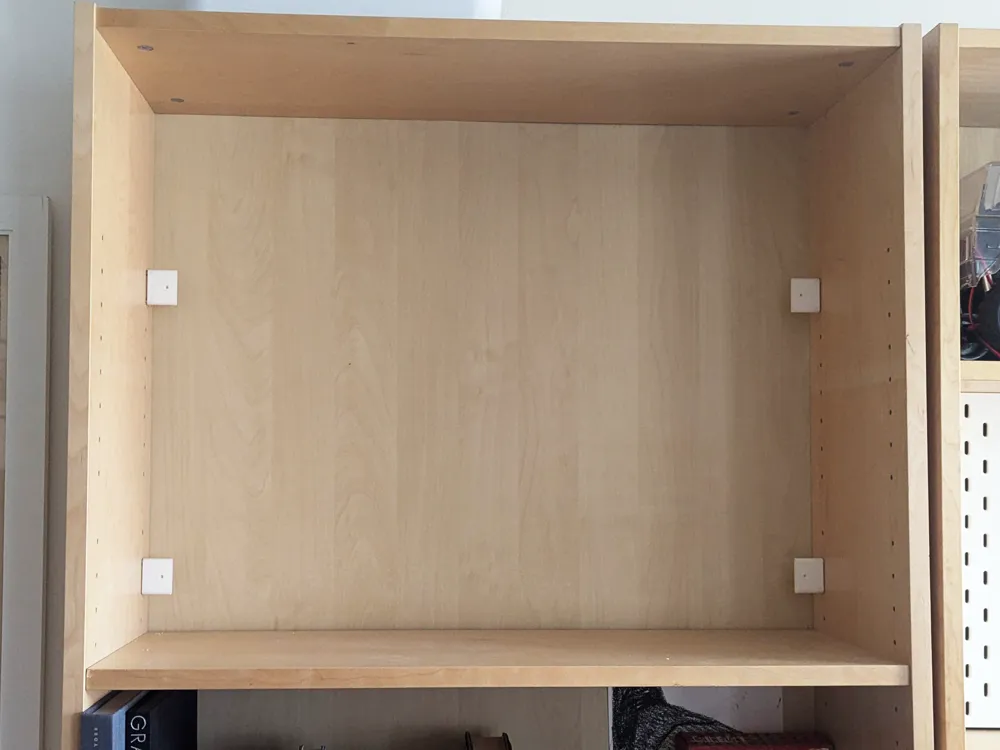

This solution repurposes the existing holes and metal pegs used for mounting shelves, so no drilling or extra hardware is required. To install, press the metal pegs from the bookshelf into the two holes on the printed part, then press that into the holes at a height that aligns with the pegboard slots.



This solution allows two possible depths for hanging the pegboard, using either the front or back row of holes. The mounting hole is sized so that Ikea's mounting screws are self-tapping - I haven't had an issue with this so far, but you could also use an M4 nut on the back for extra strength. You may have to dial in the fit of the pegs with a drill or employ some hammering depending on your printer settings.


Documentation (1)

Assembly Guide (1)

Comment & Rating (7)

(0/5000)

Print Profile
0.2mm layer, 3 walls, 10% infill
Great idea and clean print! Thanks!
The profile uploader has replied
profile
1
Reply
Thanks for sharing!
0
Reply
Do you have a model of the pegs? The current Billy bookcases use a different peg design.
The designer has replied
0
Reply

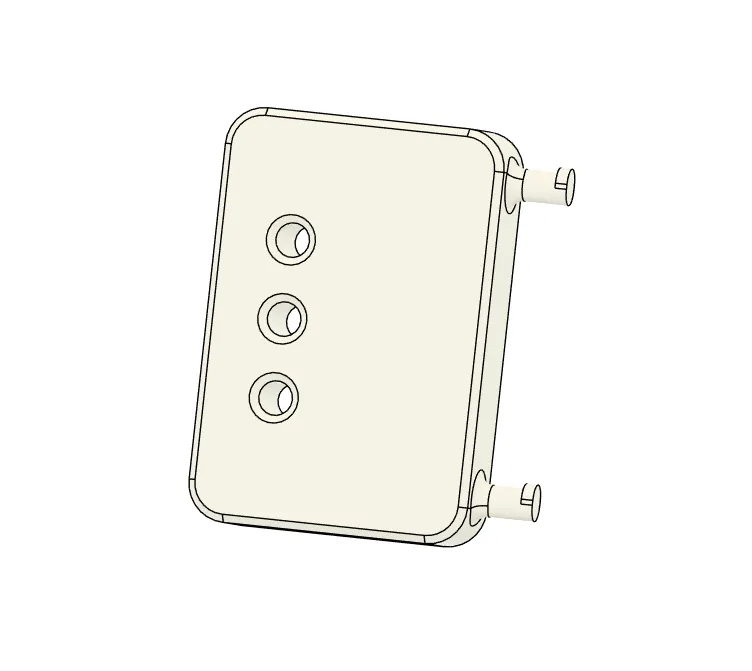

You're right, I didn't realize pre-2013 bookcases use a different style of peg. I'll try to make a version of the design that has the pegs integrated of (maybe) works with the new style. In the meantime, you could try printing this model, it looks like a match for the metal pins I have: https://makerworld.com/en/models/654166
0
Reply
Replying to @user_943339498 :
It would be really nice if you could make it to use the new style of pegs. I tried printing off those pegs, and the new Billy's peg holes are very small. I would have to drill out my billy to use those pegs. There's two boosts in it for you :P
(Edited)
0
Reply
I noticed they fit in there today at IKEA, ordering my Billy bookcases and will be doing the same. Thank you for your effort, looking forward to printing mine
1
Reply
