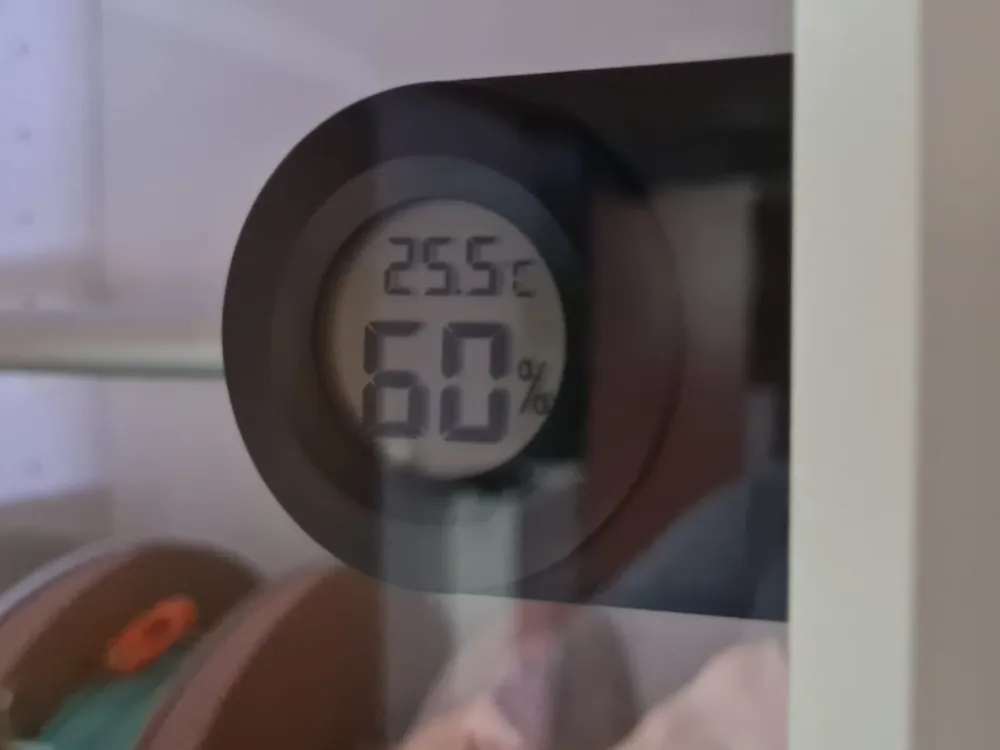

Hygrometer bracket for Ikea Billy Oxberg door:

I fell in love with the Filabilly Filament storage system from @Greenhat_30308 as well as the 16mm tube remix from @G3ML1NGZ_215889  over on printables. cudos to you guys! But I needed a solution to hang one of those round mini Hygrostats right on the glassdoor of my IKEA BILLY shelf, It has showcase doors called “OXBERG”. I wanted good visability of the hygrometer so i had to find a Solution.

The Hygrometer bracked is designed for the IKEA BILLY shelf combined with the showcase doors called OXBERG, but can be used on any other showcase door with similar frame dimensions.

Features:

• Tight fit
• Remoovable
• designed to be usable for left and right door
• Battery can be changed without dissasembly or unscrewing from the doorframe
• Small footprint
• Quick print (~30min print time)
• Supportless printing
• No/minimal mirroring of the glass, for good visability
• Mounting options:
  • Screws (recommended)
    • 3.5mm x 20mm woodscrew with countersink head or other 3.5mm screws
  • Double sided sticky tape (increases distance to glass)
    • Tesa power strips or other double sided tapes with good adhiesion

Material list for Project:

• 1x JEDEW 2-pack Mini Hygrometer (or comparable)

  https://www.amazon.de/dp/B07YWR9S66?psc=1&ref=ppx_yo2ov_dt_b_product_details



• 2x Ø3,5 x 20 mm wood countersunk screw



• 12g PLA in the color of your choice (tested!)

UPDDATES:

28.08.2024

@dellena75 noted that using the bambu original Hygrostat was not an option due to its latch orientation.

I updated the model so you can now also use the bambulab hygrometer, which i linked below.

further u increased the outer diameter by 1mm to beef up the frame slightly.
