Medical/Teaching Bone Pressure Props

Medical/Teaching Bone Pressure Props

Boost
1219
1778
137
GIF

Print Profile(2)

All
A1 mini
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D

[new] 0.2mm layer, 2 walls, 10% infill
[new] 0.2mm layer, 2 walls, 10% infill
Designer
2.8 h
1 plate
4.6(96)

0.2mm layer, 2 walls, 10% infill
0.2mm layer, 2 walls, 10% infill
2.9 h
1 plate
5.0(8)

Open in Bambu Studio
Boost
1219
1778
137
101
2.1 k
1.1 k
Released

Description

Content has been automatically translated.
Show original

tips: I have created a base that is suitable for this model. If you need to print the base, you can go to download it>> Bone pressure prop base

Tips: I have created a base suitable for this model. If you need to print the base, you can go to download it

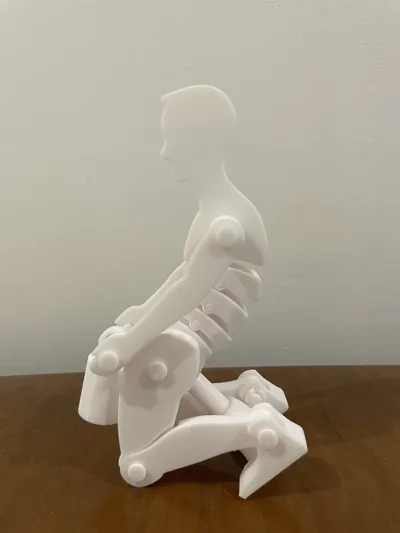

This is a model worth printing, as far as I know, purchasing medical/rehabilitation teaching props is very expensive. But now you only need 63 grams of material to make it! It can effectively demonstrate changes in bone pressure. Whether you need it for learning or not, you can adjust it, create a fun pose, and make it a decoration! This is really cool, isn't it?

这是一个值得打印的模型,据我所知购买医疗/康复教学道具非常昂贵。但现在你只需要63克材料就能制作出来!他能有效地展示骨压力的变化。无论你是否需要用它来学习,你都可以调整它,创造一个有趣的姿势,成为装饰品!这真的很酷,不是吗?

Boost Me (for free)

If you like it, please support me

You can modify the size specifications of the four magnets used for the legs in Bambu Studio

你可以在bambustudio修改腿部使用的四颗磁铁尺寸规格

Only 4 magnets are needed to secure the legs, but you can also use other methods.

只需要4颗磁铁,用于固定腿部,当然你也可以采用其他方式。


Documentation (1)

Assembly Guide (1)
Assembly Example.png

Bill of Materials

Maker’s Supply Kits and Parts
Buy Now
Download BOM

Comment & Rating (137)

(0/5000)

Print Profile
[new] 0.2mm layer, 2 walls, 10% infill
The model is very nice and effective. no printing problems. Only the pin screwed in the back is not the best…
The profile uploader has replied
profile
6
Reply
What's the problem? I will try to solve and improve it
1
Reply
Replying to @supernice :
Just a matter of aesthetics: it looks like the pin is stuck in the anus. It would be better if it was high on the back.
6
Reply
Replying to @Andracass :
🤣ok,This may be a problem, and I will revise him later. In addition, I think it will be more convenient to use it by adding a base, so there is no need to use other accessories to fix the feet.
2
Reply
Hello friend!! I love the model. Due to my lack of skill, I can't make an improvement, but can I give you a recommendation? Could you move this part of the arms to the legs? I think it would look a bit better and more natural, since the arms would be inside the legs. I hope I'm not bothering you. Greetings, brother!!
Show original
2
Reply
Print Profile
[new] 0.2mm layer, 2 walls, 10% infill
Easy to put together. Fun model.
1
Reply
Unfortunately one of the pins broke for me as I was attaching the legs. any ideas how I could rescue this instead of printing it out again. Using matte PLA by Bambu. still I like this a lot and will print it again if needed.
(Edited)
0
Reply
Improvements suggestions: The bottom pin in the spine seems to get additional pressure and so making that one a bit stronger and possibly larger would be great. Also, consider putting a magnet whole in the base of the object for lifting with different size block. lastly consider putting arrows showing vertical force. and possibly add a way to lock the back in the correct posture for picking up objects without causing back damage. Awesome, model I'm going to gift it to my physio friend.
0
Reply
Print Profile
[new] 0.2mm layer, 2 walls, 10% infill

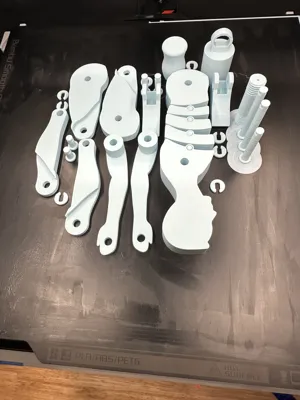

printed very well, I can't wait to try it!
0
Reply
I also printed this model, i used exactly youre options for the print, and i love how it turns out! It's a great idea and i love it! (used X-Y Hole compensation 0,2 so the pins fit alot better with my printer)
(Edited)
0
Reply
Print Profile
[new] 0.2mm layer, 2 walls, 10% infill
Nice
0
Reply
Boosted
Print Profile
[new] 0.2mm layer, 2 walls, 10% infill
Came out perfectly! Will assemble and add more pics. Going to print base next and will take more pics. I modified base model to have magnet holes that line up with the magnets in feet on this model. Hopefully it will work!
0
Reply
Print Profile
[new] 0.2mm layer, 2 walls, 10% infill
This product is very accurate
0
Reply
Print Profile
0.2mm layer, 2 walls, 10% infill
everything ok
0
Reply
