We can increase the Carbon filter size in our printer and we didn't know it!

Here is how to increment your carbon filter up to 161% of the original package filter, or up to 123% by adding a Hepa filter!!!

I opened the original Bambulab Carbon Filter and weighed the carbon: it was 63g. I read online that there's supposed to be more, but this is what I had, and on the official website it only shows the Package Weight.

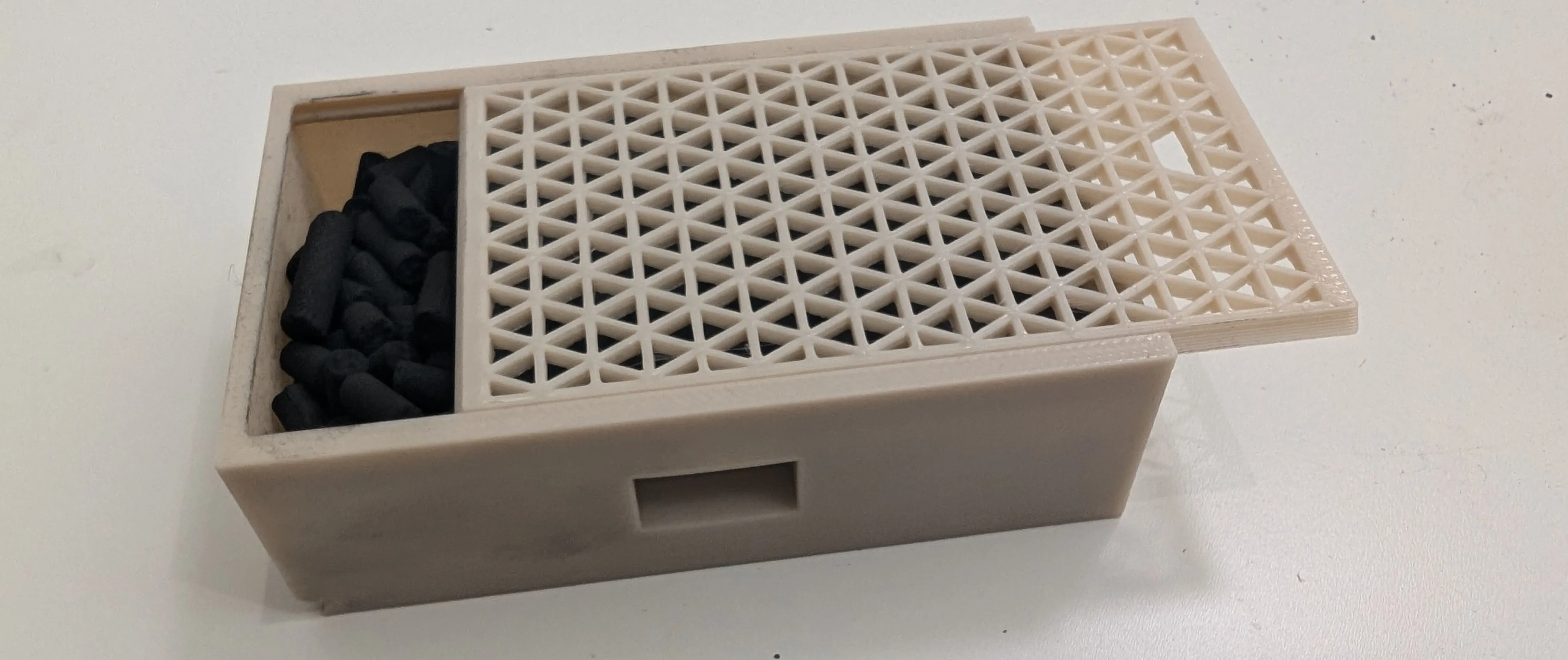

Bottom box: Carbon filter

I managed to fit a maximum of 45g of carbon, even if I suggest using around 42g to avoid carbons obstructing the sliders, it might be a problem when the box is inside the chamber slot, and you insert the top box.

You can try to keep shaking the box to fit more carbon.

Watch the video below.

Top box Option 1: Hepa filter

I managed to fit a maximum of 32g of carbon, I suggest using around 28g.

Cut the side excess of the Hepa filter, with scissors or a cutter, and push it inside.

Same rule here, keep shaking the box to fit even more carbon, but make sure the filter doesn't rise above the edges, or it could get stuck when you need to get it out.

Easy access to the filter so you can take it out easily.

Total Carbon filter of 77g!!!

Print the first plate Carbon & Hepa

Top box Option 2: even more Carbon filter

I managed to fit a maximum of 56g of carbon.

Again: shake the box to try fitting even more carbon!

Total Carbon filter of 101g!!!

Print the second plate Carbon

Bill of Materials:

Original Bambu Activated Carbon Air Filter (or get any activated carbon filter you like)
Hepa Filter (Hepa filter for robot iLife, V3, V3S, V3S Pro, V5, V5S, V5S Pro)

I printed it using PETG material and so far I haven't had any issues with it, but I'm a newbie and use only PLA and PETG filaments for my prints, so feel free to use ASA or ABS if you think it's the best, and adjust the shrinkage according to your ASA/ABS filament if needed.

Extra Handle:

I've designed a simple handle that you can use to pull out the top box from the printer' slot,

but it's not necessary as you can easily use the original cover as shown in the video below.

Additional Profile: Customizable Grid

I've added a second profile that allows you to customize the grid size directly in the slicer. Feel free to adjust the grid size to suit your needs, but be cautious not to make it too thick, as this could obstruct the printer's airflow.

Printing instructions:

I've uploaded two profiles, choose the one that best suits your needs:

Carbon & Hepa Filters
This is the original version, designed for use with the standard Bambu Lab Carbon Filter.
Carbon & Hepa Filters - Customisable Grid
Select this profile if you want to customise the box grid.

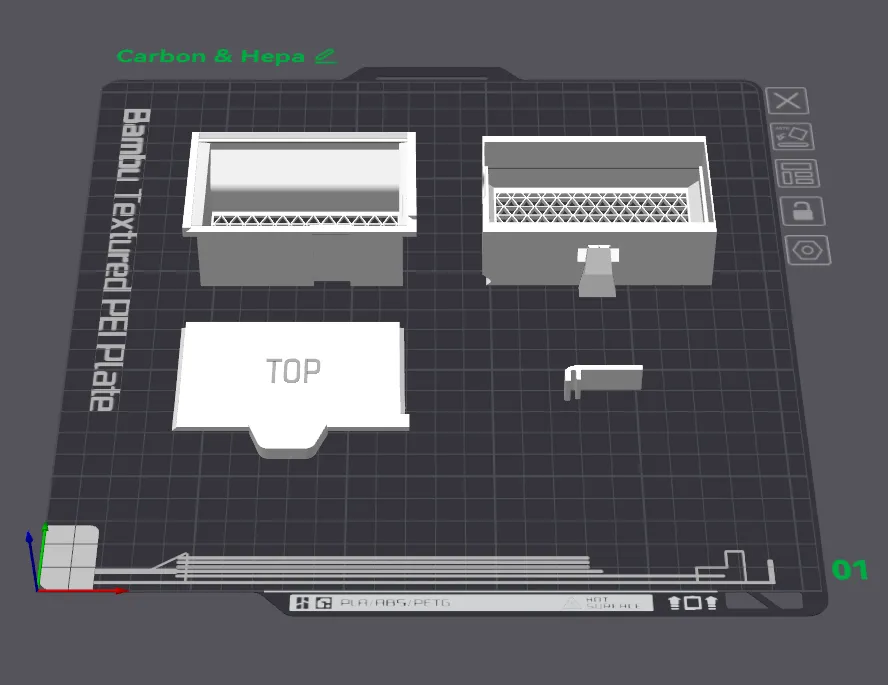

Each profile has four plates, but you only need to print one:

Carbon & Hepa (Option 1)
Original size for Carbon and Hepa boxes.
Carbon (Option 2)
Original size for double Carbon boxes.
Carbon & Hepa - 0.5mm less deep (Option 1 - Adjusted)
Same as Option 1, but 0.5mm shallower to help with slot door clearance. If you've had trouble closing the slot door, or want to prevent this issue, choose this version.
Carbon - 0.5mm less deep (Option 2 - Adjusted)
Same as Option 2, but 0.5mm shallower.

Boost Me (for free)

If you love my models and want to support the creation of new, exciting pieces, or if you simply have a Boost to spare, I would greatly appreciate it! Thank you so much for checking out my model!
