Description

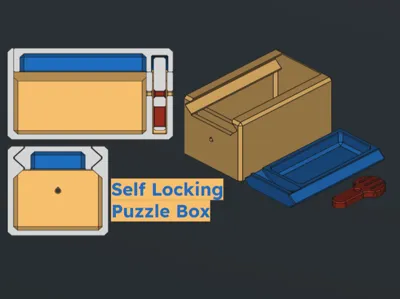

A simple puzzle box that only opens when on its side
Assembly:
- Print all the pieces out in their given orientations.
- Assemble the main piece and the spring piece by inserting a small length of 1,75mm filament through both parts.
- The box can now be rotated on its side so the spring piece moves out of the way while the lid is slotted on.
- If the spring piece is having a hard time springing due to a lack of mass the alternate fill can be printed and a m4 nut can be inserted.
- No support is needed
- No extra hardware needed
- Designed to counter elephants's foot
