Description

(A1 VERSION IN MY OTHER MODELS)

During this upgrade, some parts of your printer may be damaged, I am not responsible for any damage caused by incorrect installation or other damage. If your cables appears too short for this mod you should not install it.

This model allows A1 MINI users to adjust camera angle! I remixed well prepared @henlor A1 Mini faceplate model (by adding a mounting hole) with my A1 camera holder

INSTRUCTION (It's prepared for A1 version but will work the same with Mini version):

Print all 3 models as they are in print profile, camera holder should be printed with supports

DURING NEXT OPERATIONS THE PRINTER SHOULD BE TURNED OFF!

Remove original faceplace and camera according to BambuLab instruction

Push camera into it's new holder, it's supposed to be pretty tight so vibrations won't make any noise

Put new faceplate on the X-axis with the cable going through a hole and carefully bend the connector 90 degrees, it'll be easier to connect it.

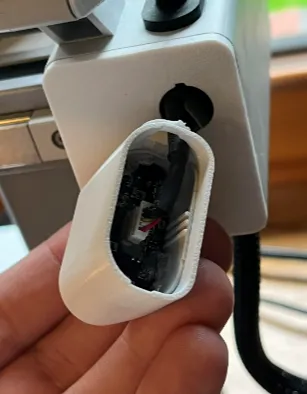

Push the cable through camera holder hole and connect it.

Push in the camera facing down and rotate it so it locks

Put the back cover and adjust the angle

Comment & Rating (490)

@laser_mike

Print Profile

A1 Mini print profile

love it perfect addition to the A1 mini they chose a poor location for the camera now if they would only upgrade the processor so it would live stream rather than the horrible 1 frame per second stream. everyone has to add a real web cam just to get a live view

(Edited)

@xjbjack

May I ask the third picture, the column on the left side of the A1mini is printed? Is there a link to the model? Thank you

@laser_mike

I will look for that model for you. I’m trying to remember how I came across it but it was a few months ago and I liked how it gave me a top mounted AMS without putting all the force on the z axis.. the model has like 10 pieces and took many hours to print but I like the result and makes for a great way to light it all up

@laser_mike

search for “A1 mini AMS lite”

@Cain_Design

ATTENTION: In my case, the camera cable was MUCH shorter than shown in the pictures here. Plugging the cable into the camera did not work even after several attempts + tools. Turning the cable 90° degrees failed. If you try any further (e.g. plugging the cable in diagonally or pulling out more cable), in the worst case you could bend the pins and possibly break the camera and/or cable. If the cable even appears not to be long enough, stop the attempt immediately. Beside this - nice Idea, nice Design :)
