Description

Working on such designs takes a lot of time and if you like my work and want to support me - please print my “Designer” printprofiles! It will help me to design more! Thank you in advance!🙏

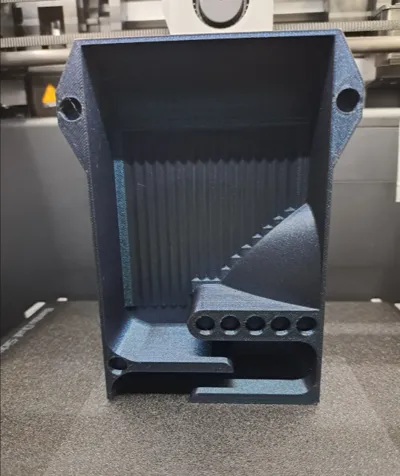

Powerfull magnetic Bambu Lab X1 / P1S (full AMS Hub compatible!) Exhaust Fan Muffler / Fan Silencer without Supports/Bridges! (Eds Version)

Looks really nice and if you don't use/need screw possibility - this is your version :-) The silencer holds securely with magnets only! (6x3mm)

⚠️ If you have other magnet sizes:

My remix of really cool original silencer of OurAngryBadger! THANK YOU for the step files!!! :-)

Main changes - really nice (with big bambu lab logo) and easy print version without supports / bridges! You can't screw it on, but it will hold only with magnets wonderfully! This version is suitable for everyone with and without AMS HUB! :-)

I changed the acoustic properties, rounded off the ventilation curve and I tested about ~5-6db average reduction of noise! Insulated with the carpet fleece ~6-7db! Cutting Templates for self-adhesive carpet fleece you can get HERE!

For magnets mounting, you will need up to 16x of 6x3mm magnets (two stacked magnets for each hole). Just glue them in the holes! (The holes are a little bit bigger - as clerance for most of magnets ;-))

If you wont to use additionally the screw option (with one SHCS m3x10mm screw), take a look on these designs Eds Exhaust Muffler with screw option and 6x3mm magnets, or Eds Exhaust Muffler with screw option and 8x3mm magnets

Print / Install Instructions:

I recommend printing with 4 walls, 6 top and bottom layers, and 0.16mm layer height on Bambu X1. You want a very solid shell so that air/noise doesn't escape as easily. PLA material is fine.
After printing, you can glue in magnets into the holes (you can use up to 16x magnets, but you don't need to fill all holes with magnets, 10 will be enough ;-)

I've been using this setup for several months and this simple mod definitely makes my X1 quieter!

I don't have any precise measuring equipment for this, but the fan noise has definitely become even more muffled for my ears - see video about on my Instagram Channel: https://www.instagram.com/reel/CmlUerEMyGf/?igshid=YmMyMTA2M2Y=

INFO from Wikipedia: “Increasing the sound pressure level by +6 dB corresponds to a doubling of the sound pressure”

Testet with “Dezibel X App” (iOS) on old iPhone

— ! —

Thanks for downloading, rating in advance and please don't forget to like this model! ;-)

Take a look at my another very helpful designs for X1/P1P/P1S/A1/A1mini:

🔗**Eds_3D_Shop designs on MakerWorld** 🔗

If you like my work and want to support me - please follow me and if you want - you can buy me a coffee! https://linktr.ee/eds_3d_shop

Thank you for your support and.. happy printing!

Ed ;-)
