ARK MK1 REACTOR by Tony StarkThis is the Iron Man heart for LED Lamp kit - HK001.

Simple to print, no supports. (to be printed at 0.2mm layers and in Pla material)

Data: GG/MM/AAAA

-V2 REVIEW COMPLETED: data 10/05/2024

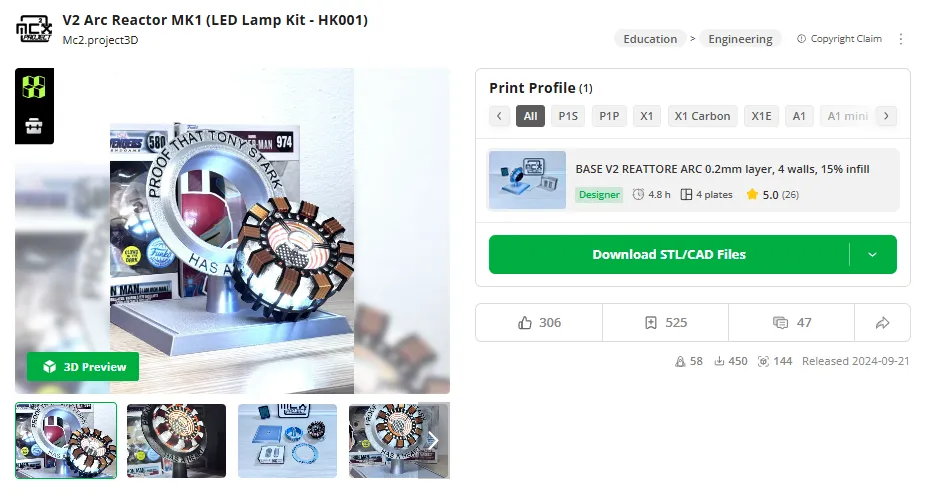

-V2 BASE REATTORE: 21/09/2024

LINK V2 BASE REATTORE:

https://makerworld.com/en/models/654500#profileId-581456

EXLOSED FUSION 360:

LINK assembly: (follow the Gifs at the bottom of the page)

https://www.instagram.com/reel/C7HQLcwtCva/?igsh=aWJxbnk3aHpocnJ4

COLORS USED:

-Black

-White

-Silver (grey)

-Gold

-Copper

-Transparent

Different colors can also be used.

COLORAND QUANTITY

Components to print with Black color:

-BASE

-ASTA CORTA (x 10 pezzi)

-ASTA LUNGA (x 10 pezzi)

-ANELLO ASTE

-CLIP (20 pezzi)

-ANELLO BUCATO

-CORONA SUPERIORE

-PONTE ANELLO SUP

Components to print with White color:

-ANELLO CENTRALE

-PIASTRA DISCHI

-SCALE ANELLI (x 3 pezzi)

Components to print with Grey color:

-ANELLO SUPERIORE

-VITE (x 3 pezzi)

Components to print with Copper color or Gold color:

-ANELLETTO 1

-ANELLETTO 2

-ANELLETTO 3

-ANELLETTO 4

-BOBINA (x 10 pezzi)

Components to print with Transparent or White color:

-CORDONE (x 10 pezzi)

ASSEMBLY STEP TO STEP:

STEP 1

-BASE

-ASTA CORTA (x 10 pezzi)

-ASTA LUNGA (x 10 pezzi)

STEP 2

-LED LAMP KIT-001

STEP 3

-ANELLO CENTRALE

-PIASTRA DISCHI

-SCALE ANELLI (x 3 pezzi)

-ANELLO BUCATO

STEP 4

-ANELLETTO 1

-ANELLETTO 2

-ANELLETTO 3

-ANELLETTO 4

STEP 5

-ASSIEMAGGIO STEP 1 E STEP 4

-ANELLO ASTE

STEP 6

-CLIP (20 pezzi)

-CORDONE (10 pezzi)

-BOBINA (x 10 pezzi)

STEP 7

-ASSIEMAGGIO STEP 5 E STEP 6

-CORONA SUPERIORE

STEP 8 (FINE)

-ANELLO SUPERIORE

-VITE (x 3 pezzi)

BASE REATTORE ARC MK1

REACTOR BASE COMPONENTS:

-PIATTAFORMA

-RIDUZIONE

-TUBO BASE

-BIG VITE

-DISCO SCRITTE

-SCRITTE

COLORS USED:

-Grey

-Black

ASSEMBLY STEP TO STEP:

STEP 1 (CLUTCH ASSEMBLY)

-DISCO CON SCRITTE

-RIDUZIONE

STEP 2 (SCREWED MORE INSTALLATION)

-PIATTAFORMA

-BIG VITE

-TUBO BASE

STEP 3

If you want to put up with my work and help me design more:

https://www.patreon.com/c/Mc2_project3D

This project gave me a lot of satisfaction.

Available for any questions.

Good Print from MC2 PROJECT 3D
