A1 & A1-mini Removable Purge Bucket - Sloped Remixed by The Other Lucas

Remixed by

The Other Lucas

3D Printer>3D Printer Accessories

IP Report

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

H2D

0.16mm layer, 3 walls, 15% infill

Designer

3.1 h

1 plate

Open in Bambu Studio

Boost

Released

Description

PLEASE NOTE THAT THIS DESIGN NOW HAS A DEDICATED VERSION FOR THE A1 MINI as well as the A1

The A1 bin is slightly wider, to accommodate the bed side of the A1's purge extractor.

The A1-mini version is 13mm thinner and can actually be used for both printers if that is your preference, though the wider one will only work on the larger A1.

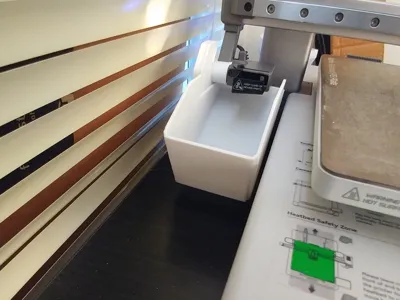

This is a remix of the excellent purge bin made by dubios. I modified this so that the filament poop falls down and forward so that the nugget can be easily scooped out during printing. I also made it slightly thicker so that it is sturdier during printing.

I imported the STL file into sketchup and made my changes and then exported it to the printer.

The bin is still 'hot swappable' thanks to dubios' excellent carriage design. I made this because I hate the rattle of the filament poop in the basket during printing and I don't have any TPU filament, so I designed this as an alternative to using a soft material in the bin.

I have also added a TPU mat file for each of the versions if you want to put a mat inside the bin.

I hope you find these designs useful.

Comment & Rating (12)

@Miro1337

What I'd love to see is a tpu inlay for this. duios42's bucket system is amazing, but the walls are a bit flimsy for my taste. I'd love to combine your very beautiful and sturdy design with his tpu layer, but lack the cad experience for it.

The designer has replied

@TheOtherLucas

Thank you! I appreciate the kind words. hmm, a tpu layer? shouldn't be hard to do, considering that TPU is basically just a mat, I can figure out the area of the inner surface and give you the final dimensions of a tpu pad that would fit perfectly if you like - or you can cut some material. I'll get back to you shortly with that data.

@TheOtherLucas

I have made an inlay for you. unfortunately I don't have any tpu filament so was unable to test it, but you can find it here; https://makerworld.com/en/models/612672 I hope it works out, let me know if there is anything I can fix or improve, and I'll be happy to make changes.
