Obi-Wan Kenobi Lightsaber Ep.4 (1/1 Hero Prop Copy by Axel Dreher

Axel Dreher

Props & Cosplays>Other Props & Cosplays

IP Report

Print Profile(2)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

H2D

0.16mm layer, 2 walls, 15% infill

Designer

8.3 h

6 plates

4.9(97)

Lightsaber 0.16mm layer, 2 walls, 15% infill, A1 mini

9.1 h

6 plates

4.8(15)

Open in Bambu Studio

Boost

757

1403

157

186

1.2 k

580

Released

Description

…May the 4 be with You!

Hello fans and friends of the Lightsaber,

After much research,

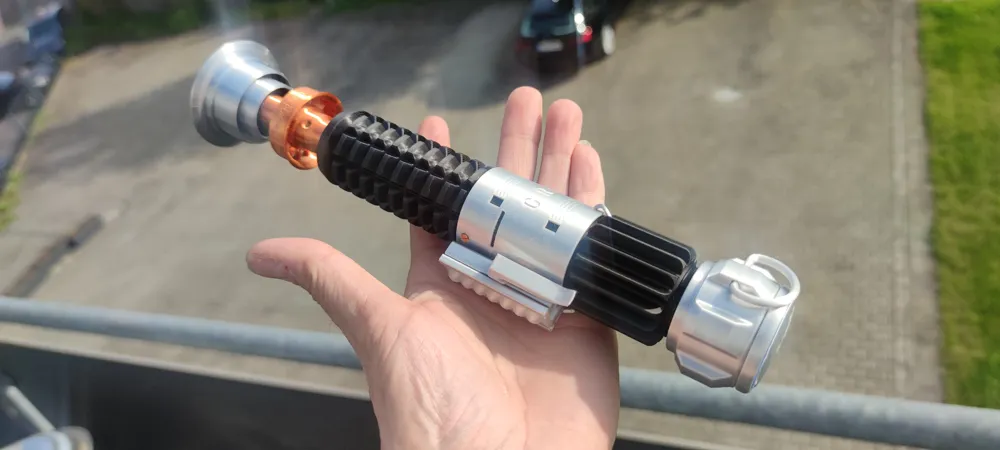

I have now provided my construction of the Obi-Wan Kenobi Lightsaber from "A New Hope".
I hope I can make one or two people happy with this!

...if you want you can increase the weight of the lightsaber with an 8mm threaded rod (24cm long) and a few 8mm nuts!

...and if you like it, I would be happy about a like!
Believe me, there is a lot of work involved.

Documentation (1)

Assembly Guide (1)

Anleitung_397fc9a1-70de-4caa-8c5c-aebffa25e15b.pdf

Comment & Rating (157)

@nickramsey57

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

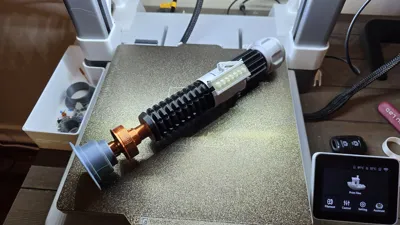

Very nice design and prints extremelyt well. All parts fitted with no fettling. (But I do calibrate everything including skew etc.) One odd bit - the black spacer that holds the optional 6mm bolt is not mentioned or shown at all in the instructions and the thread on the black handle has no matching threaded piece for so no idea why it has a thread. Printed with : Silver - Giantarm Silver Silk PLA Copper - Bambu Copper Silk PLA Dark Silver - Ziro Silver PETG Blue - MKOEM Blue Silk PLA Black - Bambu PLA-CF

@ds_BaRF

I'm not the designer but I think the thread is because the original parts that were used to make the lightsaber are just pieces of existing hardware and this model is made very realistic :) That's why there is "Graflex" on the side for example. The black bolt part goes in the back just before the cap (you can just see it in the exploded view of the model)

@Nunya

Replying to @ds_BaRF :

actually this is a REMIX of the files that were available on thingiverse a few years ago. the parts are identical to those. I have printed that one. its pretty slimey to pass this off as his creation when its clearly not

@Cadman1963

Boosted

Turned out amazing. had a few minor issues with some of the small parts not sticking to the bed but fixed those with a brim when reprinting. Also threaded piece broke at the head when screwing in but that’s because I didn’t have a tap. (What size thread is it by the way). Still I’m super impressed and currently printing the stand 🙂

The designer has replied

@AxelDreher

It's an M8 thread 😉👍

Show original

@Cadman1963

Boosted

Thanks but not the rod for weight. I’m talking about the tap you used for the lever screw on the side near the transparent piece as in this pic

@MyOldLandy

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

Superb print, thanks for sharing.

@AxelDreher

looks awesome 😉👍

@fabilatius

Boosted

Very nice 👍

The designer has replied

@AxelDreher

You forgot the support in the handle. 😉

@alaskanspawn

great model with nice detail!

@Descensus13

Boosted

where did you find the model for the kyber chamber?

@alaskanspawn

Replying to @Descensus13 :

https://makerworld.com/en/models/580231?from=search#profileId-501076

@Limo74

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

Sehr schön gedruckt und toll, dass eine Anleitung zum Zusammenbau beiliegt.

(Edited)

@AxelDreher

Freut mich dass es Dir gefällt! 😉 Ja die Anleitungen sind leider manchmal echt eine Qual. Ich sitze gerade an der Anleitung für das Obi-Wan Lichtschwert mit Kristall Kammer!!! 🙈🥴 Das hält wahnsinnig auf aber hilft nachher auf jeden Fall beim Zusammenbau. 👌

@modell3ddruck

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

Excellent design 😃

Show original

@MauCamargo

Print Profile

0.16mm layer, 2 walls, 15% infill

great design! super happy how it turned out!

@Jake72

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

very nice print.

@user_1370259816

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

perfection. love the attention to detail, I went with the bronze for the sink nob but I love that you have it in blue! also I went with one color of silver cause that's all I have currently. thanks!
