Platform 9 3/4 led lamp by TechDino

TechDino

Household>Decor

IP Report

Print Profile(1)

All

X1 Carbon

P1S

P1P

X1E

H2D

0.2mm layer, 2 walls, 15% infill

Designer

9.2 h

3 plates

5.0(2)

Open in Bambu Studio

Boost

Released

Description

You need these leds for it:

https://www.amazon.de/dp/B07C1PQMNC?psc=1&ref=ppx_yo2ov_dt_b_product_details

This battery holder:

https://www.amazon.de/dp/B07MQ9DNP6?psc=1&ref=ppx_yo2ov_dt_b_product_details

this battery:

https://amzn.eu/d/eHQB3qD

and this switch:

https://www.amazon.de/dp/B0BD39FPRQ?psc=1&ref=ppx_yo2ov_dt_b_product_details

Step 1:
Glue the lamp to the lamp holder so that the holes are directly above each other.

Step 2:

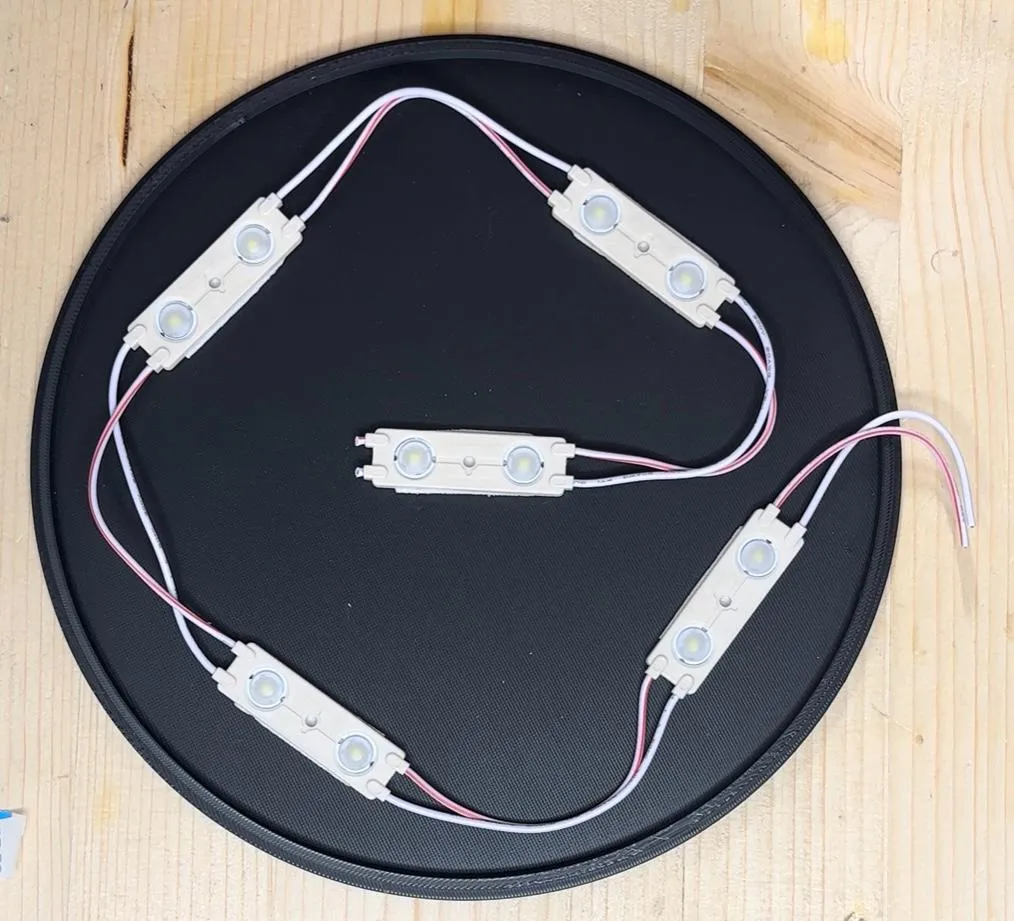

You take 5 Led lamps and cut the cable and lead the cable through the hole down to the battery

Step 3:
Push the switch into the side of the battery compartment.

Step 4:
solder one cable from the Led lamps to the switch and the other cable to the battery holder. Finally, connect one cable to the switch and the battery holder.

Step 5:
Finally, glue the rear panel in place.

you can see the assembly at tiktok

https://vm.tiktok.com/ZGeHAy8Mg/

Comment & Rating (10)

@bruno.zahnd

Könnten Sie mir den Schritt 4 ein Bild zukommen lassen. Video geht nicht

The designer has replied

@TechDino

du brauchst also eine genaue anleitung, welches kabel du womit verbinden sollst, richtig? Ich kann dir gleich mal fotos schicken, welches kabel mit welchem verbunden wird.

@TechDino

https://vm.tiktok.com/ZGegLAJNC/

@pierce329

Print Profile

0.2mm layer, 2 walls, 15% infill

I rest this print a few times and the first layer would not go down right. Thought maybe I had a clogged nozzle. I moved on to a few other designs that are similar and they all worked fine, so my nozzle is fine.
