Anti spill cup holder

Anti spill cup holder

Boost
845
1415
125
GIF
GIF

Print Profile(7)

All
A1 mini
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D

Headrest Strong - 0.2mm layer, 4 walls, 25% infill
Headrest Strong - 0.2mm layer, 4 walls, 25% infill
Designer
1.9 h
1 plate
4.7(39)

Stronger free standing - 0.2mm layer, 3 walls, 15% infill
Stronger free standing - 0.2mm layer, 3 walls, 15% infill
Designer
3.2 h
1 plate
5.0(2)

Can adapter - 0.2mm layer, 2 walls, 15% infill
Can adapter - 0.2mm layer, 2 walls, 15% infill
Designer
4.7 h
2 plates
4.9(9)

Free standing & headrest - 0.2mm layer, 2 walls, 15% infill
Free standing & headrest - 0.2mm layer, 2 walls, 15% infill
Designer
4.2 h
2 plates
4.7(14)
Click to see more

Open in Bambu Studio
Boost
845
1415
125
64
976
525
Released

Description

Warning, don't leave with load continuously if you print with pla! Go for 3 walls if PLA.

My test of 2 walls pla and 1kg load failed after 7 days.



🚗 Keep Your Drinks Secure on the Road! 🚗



Introducing the Anti-Spill Car Cup Holder – your solution to mess-free driving. With its sleek design and unmatched stability, this 3D printed holder ensures your drinks stay put, even on bumpy rides. Say goodbye to spills and hello to smooth travels with our compact and durable solution.

Enjoy every sip, worry-free!



Fits a normal fast-food-cup (80mm in diameter).



Now four versions!

  • Stand alone (to put on floor mat or seat)
  • For hanging on headrest
  • Modular (2-any) version!
    • Recommend you use the crossbeams and bolts, but the pins work.
  • Handlebar version
    • Gimbal is same as the modular but only one fastener point, you can use either

There is two versions for stand alone and headrest, one stronger thicker and one normal that prints faster.



Now with optional handlebar fastener!

  • 26mm and 22mm handlebar
  • needs m3 bolt and nut x 2



There is even an adapter for cans (it fits alla versions)!

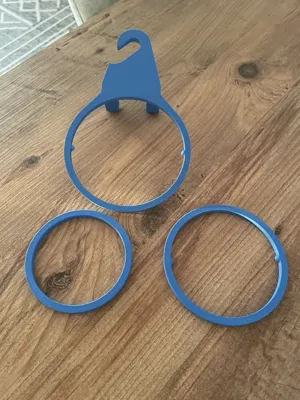

Assembly of modular version

Follow the image, you cant go wrong. If you want the handle, add it before your put on the gimbals.

Why do I call it modular? Well, because you can build it bigger! For example like this:





use on your own risk, always drive safe.

Comment & Rating (125)

(0/5000)

Boosted
Standing Version is working very well for my father's walker. Thank you a lot. He can now take his drinks by himself.
The designer has replied
14
Reply
wow, didn't even think about that use case. Glad it works!
1
Reply
If you notice any problems with the thin legs there is now a stronger version uploaded.
2
Reply
Boosted
Replying to @christofer.jh :
Hey Christofer, thank you for letting me know. I will print the stronger version. So far the standard version has withstood any load. Thank you again.
1
Reply
Print Profile
Free standing & headrest - 0.2mm layer, 2 walls, 15% infill
Strength Issue:I’m so sorry, but just printed this and when I put it together, it snapped. could you make the arms and the connections thicker and thereby stronger?
0
Reply
Sad to see, might be some layer adhesion problems together with the thin legs. :( I'm printing a significantly sturdier version right now. Will upload as soon as I have verified it works as expected.
1
Reply
I have uploaded a stronger version now, thanks for feedback!
2
Reply
Replying to @christofer.jh :
I will give it a shot and get back to you. thanks very much
1
Reply
Print Profile
Can adapter - 0.2mm layer, 2 walls, 15% infill
It seemed to do good until it started to bend and the connectors started to fail. Great idea though could use some improvement.
(Edited)
2
Reply
petg or pla? there is another printpeofile with more walls. but petg still recommended
(Edited)
0
Reply
Replying to @christofer.jh :
pla
0
Reply
Replying to @christofer.jh :
Seemed like a great design really but the joints just gave out. Should I try a different type of filament? I haven't considered it.
0
Reply
Print Profile
Headrest Strong - 0.2mm layer, 4 walls, 25% infill

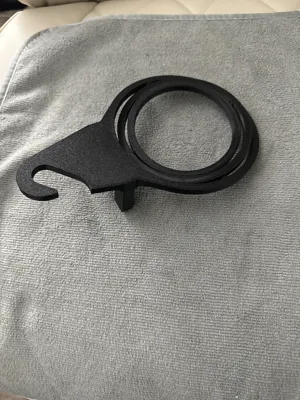

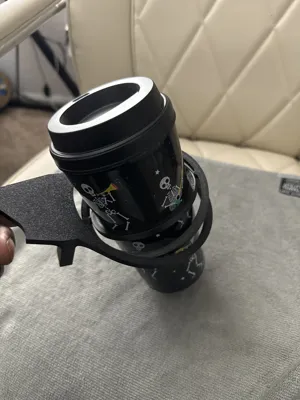

I didn't think that it was going to work as well as it did. I tested it out to see how it would perform and to my surprise it didn't spill my cup of water in the car.
1
Reply
nice! it's even better if the cups top is closer further down!
1
Reply
Replying to @christofer.jh :
Thanks for the feedback! I will push it further down when I use it. It also resists against the heat in my car no warping issues. (PETG) Filament
1
Reply
Clipped the cup holder to my hammock. No more spilled drinks! Thanks for your design and creativity!
The designer has replied
2
Reply
looking good!
0
Reply
when I put the cup, it was broken:(
The designer has replied
0
Reply
what did you fill your cup with?! I have not seen that kind of failure
0
Reply
I used PLA actually
0
Reply
Print Profile
Headrest Strong - 0.2mm layer, 4 walls, 25% infill
Printed in ABS, the result is excellent, testing is still pending
Show original
1
Reply
Print Profile
Can adapter - 0.2mm layer, 2 walls, 15% infill
workes well, thanks!
1
Reply
Print Profile
Headrest Strong - 0.2mm layer, 4 walls, 25% infill
works really well. nice design!
1
Reply
Print Profile
Headrest Strong - 0.2mm layer, 4 walls, 25% infill
Pretty good
Show original
