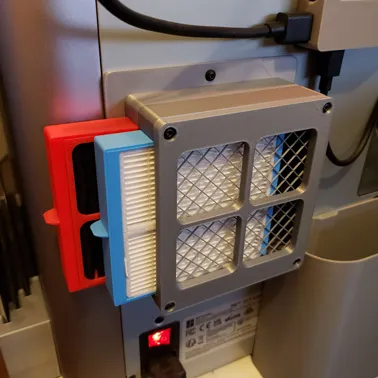

Replaceable HEPA/Carbon Charcoal Filters for Bambu X1C/P1S Chamber Exhaust
Stackable Chamber Exhaust port filter housing for either HEPA or Carbon Charcoal filters.

> Housing mounted to printer using existing threaded holes on the printer, using x4 M3x6mm button cap screws.
> Mesh Layer and Top mounted to Housing using x4 M3x6mm button cap screws.
> Filter Cartridge slides in from the side.
> Optional Housing with modification for use on printers that have the AMS Hub installed are included

> Optional TPU gaskets are included
> Optional Additional Filter Housing can be added to use multiple filters, this is fitted between the Housing and the Mesh Layer using x4 M3x25mm button cap screws.
*Please use multiple filters with caution. Using both may be too flow restrictive on the chamber exhaust fan. Using less filter materials may be in order.

Use recommendations:
- Use top glass riser to increase airflow
- Set the chamber fan to 70% or higher.
HEPA Filters:
(https://amzn.to/49Uu6vF)
Cut-to-Fit Carbon Pad for Air Filters Charcoal Sheet
(https://amzn.to/4bd4iw1)

Screws:
x4 Qty M3x6mm Button Cap screws to mount Housing to printer (https://amzn.to/44hnBlr)
x4 Qty M3x6mm Button Cap screws to secure Top and Mesh layer to Housing (https://amzn.to/44hnBlr)
If optional second filter housing is used:
x4 Qty M3x25mm Button Cap screws to secure optional second filter housing, Top, and Mesh layer to Housing (https://amzn.to/44hnBlr)

Material:
Silver - IIIDMAX PLA+ (https://amzn.to/4dhLtK4)
Light Blue -IIIDMAX PLA+ (https://amzn.to/4deSoUc)
Red - Hatchbox (https://amzn.to/3Ukwbvc)

- Design Update - 4.12.24 -
- Included an optional filter tray addition to use both filters simultaneously. *Please use multiple filters with caution. Using both may be too flow restrictive on the chamber exhaust fan. Using less filter materials may be in order.
- Increased the diameter of the holes in the Top, and Mesh parts to allow the M3 screws through.
- Added optional TPU gasket files. Thanks @wiczdesigns for the suggestions.





- Design Update - 4.11.24 -
I have added main housing to accommodate printers that have the AMS Hub installed.
Thanks to user @redborder for the suggestion and reference photos.


- Design Update - 4.9.24 -
I have added a filter box and lid for use with Carbon/Charcoal Filter Material, to extend the carbon filtering from the chamber exhaust.
