PUZZLE BOX / CYLINDER MAZE with rose by LuckyShot

LuckyShot

Household>Decor

IP Report

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

H2D

0.2mm layer, 2 walls, 8% infill

9.6 h

1 plate

3.8(5)

Open in Bambu Studio

Boost

158

282

Released

Description

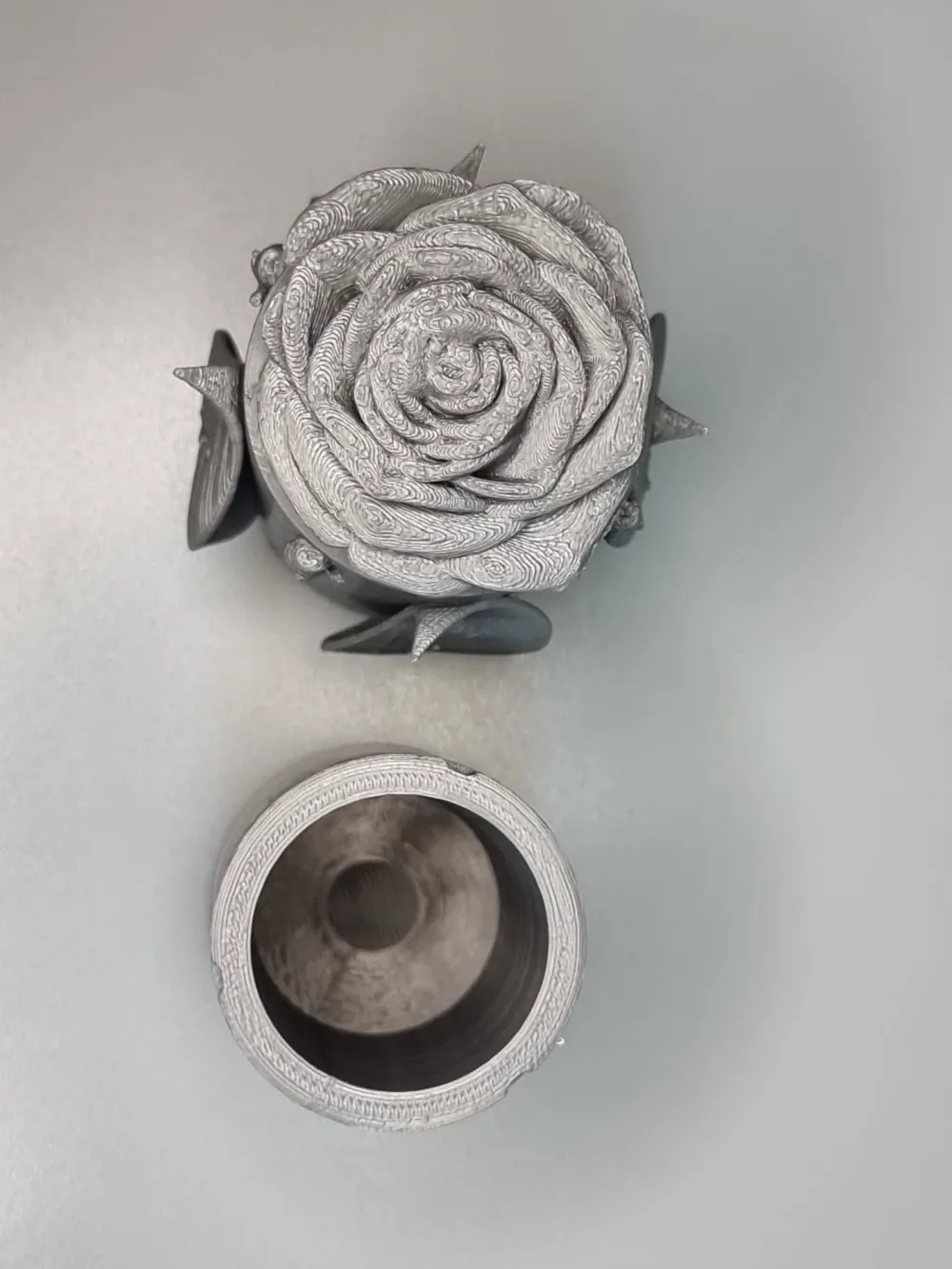

Cylinder box with hard maze that can be scaled up or down. You can hide what ever you want. There is even a box with ring holder and enough space inside to put some rose petals for the special occasion.
You can hide a message, money, jewelry to make it more interesting for the person receiving it more interesting :D
You can even hide the Card Pin :D

with 5% infill and tree support touching built plate/

Comment & Rating (11)

@user_30574016

Print Profile

0.2mm layer, 2 walls, 8% infill

Other Issues:the maze does not fit into the rose part. also one side did not have supports so it has flaws see pictures below.

@UoAoE3D

Hi, I think you're using wet filament (or it could be a printing temperature issue) that's what I can see in Image and its the reason of the flaws On the other hand, the fitment issue is most likely caused by irregular flow rate were printed parts will expand and/or shrink. Is it a BambuLab filament? if not you need to calibrate the flow rate for that brand of filament. I think that latest firmware for Bambu A1 have the option to auto calibrate the filament but I have not tried it yet.

@undednubz

I agree there is a fitment issue, freshly opened refill roll, will not fit. I'm going to try reprinting just the inner maze 1% smaller. Will let you know how it goes.

@undednubz

Replying to @undednubz :

Ok I printed the inner at 99.3% scale of the outside and it fits perfectly. To be clear I only scaled the X and Y axis not the Z axis for height. I am going to print another outer shell at 100.7% to fit the first 100% inner.

@wer57

Print Profile

0.2mm layer, 2 walls, 8% infill

The roses on the side didn't really attach to the sides, and the supports made it even harder to keep the side roses. The pattern was also a lot larger than I first thought it would be. The top rose is beautiful, and the maze isn't too difficult. I would recommend 2 colors at the least when printing.

@wer57

I'm re-printing as I type. some of the supports did NOT generate in good places. However, that also leads me to another issue. How do you remove the supports from inside the tube? My attempt caused it to snap, leaving the top stuck up inside.
