Description

Summary

Those designs are different types of nozzles and a cork for seal guns.
You can chose nozzle sizes between 2 and 5 mm. I like the 2mm for delicate works.
All models can be printed without support and need no post treatment.
For a smooth result use 0.4 layer thickness. The walls are designed to be to layers thick.

Edit: After being asked in comment i added 2 models with 1mm holes: "1mm.STL" and "1mm_thin_walls.STL". The first one uses the exact same design with 0.8mm walls but it seemed like a precise work requiring 1mm holes would be wasted by 1.6mm of plastic. So the second model "thin walls" uses 0.4 mm walls. High pressure might break it so bee cautious and don't hesitate to give feedback on those models.





Boost Me (for free)

If you feel like it you can boost this model. If will help others to discover it and give me some credit to buy filament.

Comment & Rating (100)

(0/5000)

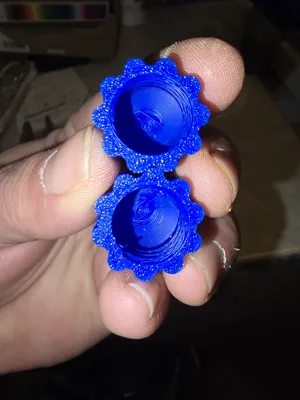

I've now printed it twice with two different, dry PLA filaments Unfortunately, both prints exhibited an unclean finish In the first attempt, the tip of the lid even broke off In the second attempt, the top of the lid is again unclean
Show original
1
Reply
Print Profile
0.2mm layer, 3 walls 3mm nozzle
Helped me out today! 😄
0
Reply
Print Profile
0.2mm layer, 3 walls closed cap
Nothing to add, nothing to take away, it fits perfectly A truly ideal design
Show original
0
Reply
Print Profile
0.2mm layer, 3 walls closed cap
Perfect fit!
0
Reply
Print Profile
0.2mm layer, 3 walls 2mm nozzle
came out great
0
Reply
Print Profile
0.2mm layer, 3 walls 5mm nozzle
Does the job nicely. Need to scale down VERY slightly for a tighter fit.
0
Reply
Boosted
Print Profile
0.2mm layer, 3 walls closed cap
useful print! great job
0
Reply
it's a perfect fit! AmazonBasics PETG.
0
Reply
Print Profile
0.2mm layer, 3 walls closed cap
0
Reply
Are those airtight, there seems to be cracks at the top?
(Edited)
0
Reply
Print Profile
0.2mm layer, 3 walls closed cap
0
