Collapsing Katana 天鎖斬月 (BLEACH -Tensa Zangetsu)

This is a telescopic sword inspired by the sword "天鎖斬月" used by Kurosaki Ichigo in the Japanese manga "BLEACH".

This is a telescopic katana that is printed in parts and then assembled. You can choose to print different colors and strengths for different parts.
The handle is capped to facilitate future maintenance and blade replacement.However, the disadvantage of this is that the printing time will increase.
If you are sure that you can print an all-in-one print, you can refer to my previous telescopic knife work Reverse Blade Sword mini:
https://makerworld.com/en/models/114630

Notice
It is recommended to use PLA+、PETG for printing.
If your filament has insufficient strength, please increase the fill overlap to more than 40%.

Assembly instructions:
1. Place the blades in order.

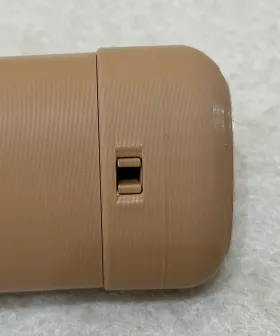

2. Close the handle cover.

3. Insert two pins to secure.

4. fixation of chains
Glue is required to secure the chain to the cover of the handle.

Remark:
1. If the pin is too loose, you can apply removable glue, such as Styrofoam, to the tip of the latch to facilitate removal during future repairs.
2. Since the flow rate of each brand of filament will vary, the pin may be too thick or too thin. If you encounter this problem, you can adjust the Z height of the pin and print the two pin parts separately.
3. If it is difficult to align the exit hole when the pin is inserted into the tool holder, you can use a blade to push in the direction of the hole to facilitate alignment of the exit hole.

Ten Lock Slashing Moon

bleach

tensa zangetsu

Comment & Rating (958)

@esbenjensen2

Print Profile

Chain version, single color, 0.2mm layer, 2 walls, 12% infill

did not go Well

@user_1185305948

Same

@Sensible_Sigma

Boosted

why?

@Koratei

Boosted

Print Profile

Chainless version, single color, 0.2mm layer, 2 walls, 12% infill

Love the blade. Translucent PERG prints very nicely.

@ElonMckenna

Print Profile

Chain version, multicolour, 0.2mm layer, 2 walls, 12% infill

love this model! I'm not sure if the blade is extending all the way. I used silk filaments so maybe it expanded and caused that

@2k3msp

I haven't gotten any of mine to extend all the way either. I still can't get the seams dialed in amd I'm pretty sure that's what's hanging up.

@BlessedNoob

Replying to @2k3msp :

Have you figured out the seam issue? I have mine "back" and still seems like it doesn't extend all the way. If I swing it pretty hard it will extend 95%

@2k3msp

Replying to @BlessedNoob :

I know "random" will leave dots all over it, so that's not an option. I used "aligned" and they are slightly offset, which helps. I think the seam itself is just too thick, so it messes with thr tolerances.

@brad133

Print Profile

0.2mm layer, 2 walls, 12% infill

saves so much time

@C1b0rgPrinter

hey!! I just printed the handle and I’m super confused. what is the tower in the back for? I now have a lot of discarded filament and I don’t know what the tower is for. please help me

The designer has replied

@mail.iou

https://wiki.bambulab.com/en/software/bambu-studio/parameter/prime-tower

@user_1967447905

Multicolor printing will create a wipe tower It will print the previous color when it needs to change colors Then it will print

Show original

@user_3891717708

yup . its kind of waist to me, i stop mid if job 2 much time, 2 much material, recomend go single color

@user_525796790

Print Profile

Chain version, single color, 0.2mm layer, 2 walls, 12% infill

Im not joking when I say this thing was SICK so awesome and fun. Made a couple for my friends and they had a blast. The peices rarley get caught and everything prints astonishingly.... probably spelled that wrong. Anyways the only down side is if you print the chain version the chain will hit you and it might hurt just an FYI.

@alenbec

Great model! I printed a multicolor version, and my son is loving it! I also designed a sliding safety guard that prevents the blade from extending, making it easier to carry around in collapsed state. If anyone is interested here's the link: https://makerworld.com/en/models/1109113

@user_3480176909

very nice👌

@joooy

Print Profile

Chainless version, single color, 0.2mm layer, 2 walls, 12% infill

Perfect! Print with Elegoo PLA+ and A1 mini 🎉

Show original

@lele_maker

Print Profile

Chain version, single color, 0.2mm layer, 2 walls, 12% infill

I like this model, i print it without the chain

(Edited)

@trujiptv

Did you make this with PLA

Show original

@lele_maker

Replying to @trujiptv :

no, petg

@Varthas

is it normal that ive got this much of pop in one print?

@T_Bros

yes
