Description

灵感来源于:Spinning Filament Swatch Display - Lifts Swatches 来自 Brad - FTBT 3D - MakerWorld,但我的Voron0.2不能打印他因为他太大了,考虑到可能有别的朋友像我一样没有大尺寸3D打印机,于是我设计了这款Spinning Filament Swatch Display-Mini,但它没有办法容纳下所有的bambu色卡。

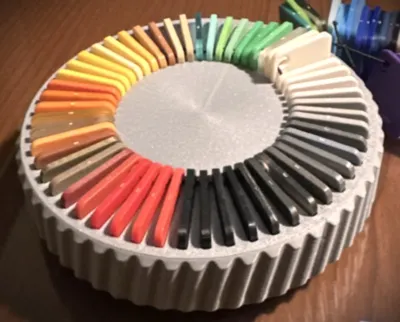

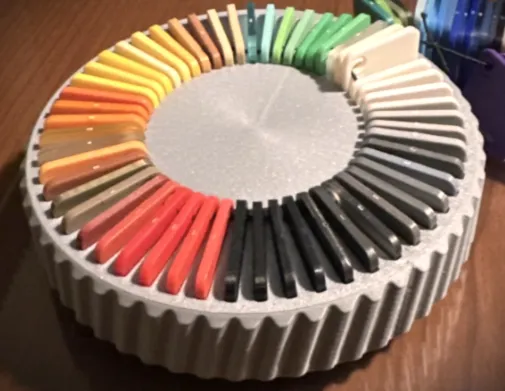

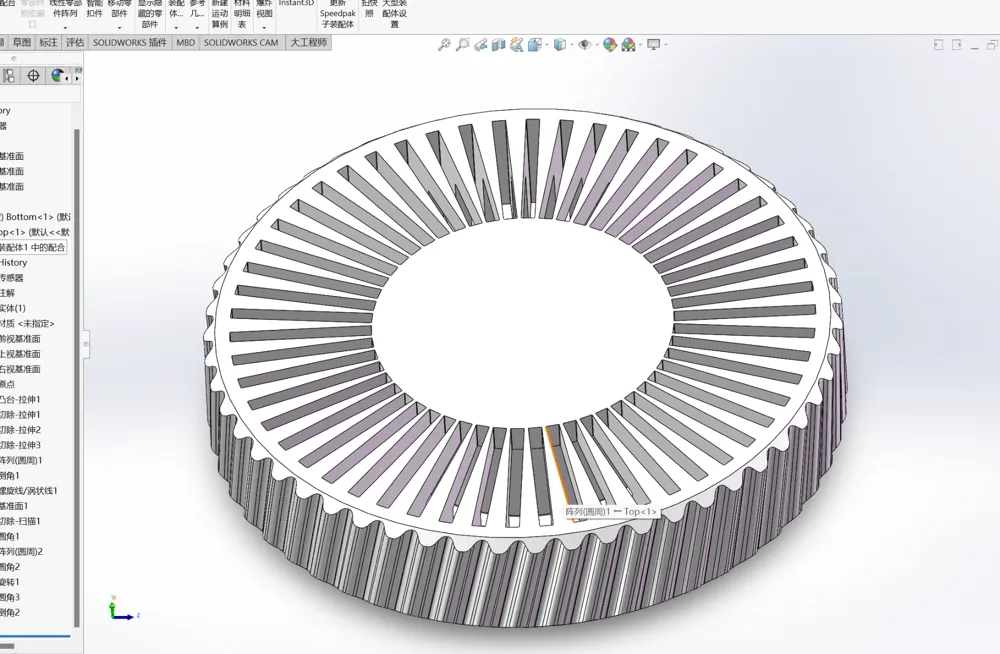

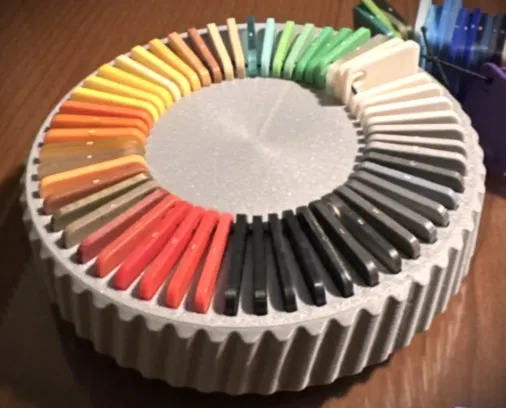

The inspiration comes from: 纺丝色板显示器 - 升降机色板 来自 Brad - FTBT 3D - MakerWorld --- Spinning Filament Swatch Display - Lifts Swatches 来自 Brad - FTBT 3D - MakerWorld, but my Voron0.2 can't print it because it's too big. Considering that there might be other friends like me who don't have a large 3D printer, so I designed this Spinning Filament Swatch Display-Mini, but it can't hold all the Bambu Lab filaent swatch.



打印设置:

  • 顶层高度:0.20mm
  • 底层高度:自适应或 0.10mm(用于平滑斜坡)
  • 顶面和底面:同心
  • 倒置打印顶部
  • 使用Arachne墙体生成器以获得最佳效果
  • 按照设计,它只会顺时针转动

为了得到最好的表现:

  • 如果需要,用 220 粒度的砂纸将坡道打磨光滑
  • 在底部贴防滑贴,这样底座就不会在转动顶部时旋转



Print Settings:

  • Top Layer Height: 0.20mm
  • Bottom Layer Height: adaptive or 0.10mm (for smooth ramp)
  • Top & Bottom Surface: Concentric
  • Print top upside down
  • Use Arachne wall generator for best results
  • As designed it will only turn clockwise, mirror base to turn counterclockwise

For best turning:

  • Sand the ramp smooth with 220 grit sandpaper if needed
  • Put rubber feet on the bottom so the base won't spin while turning the top
