Description

Disk magnets: 8 pieces, Ø8mm x 2mm
Tip: Use “Octagram Spiral” on Prusa slicer as bottom fill pattern on lid for unique effect
Customizable files in STL and STEP file format
STEP for CAD customization
STL for boolean customization in for example blender

For more of mt 3D models, visit my makerworld profile: https://makerworld.com/en/@Jallim

Comment & Rating (21)

@user_1556907102

Boosted

Print Profile

Bottom, 0.2mm layer, 2 walls, 15% infill

printed real nice but I have found the unit is not level on the ends. Magnets hold it at the middle but can't connect on the ends. Still love the case, just maybe one half didn't come out a bit warped. is that my print or file? idk.

@user_3000085956

Boosted

That's mild warping. You can try to utilise the low temperature tolerance of PLA to fix it by clamping the part flat (it helps to also add a paper shim to actually bend it a bit the opposite way) and heating it over 55C with an ordinary hair dryer - it helped in my case.

@user_1556907102

Boosted

Replying to @user_3000085956 :

good idea. I will try that.

@user_1556907102

Boosted

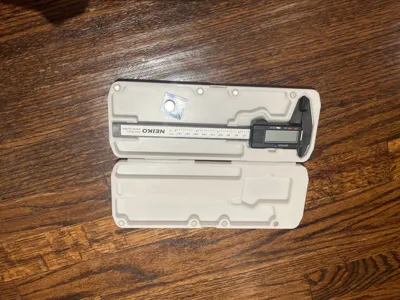

Love the Caliper Case. Just needed to Extend the X-Axis in Bambu Studio by 4mm (Turned off Scaling) to fit my Harbor Freight NEIKO Caliper. I was able to use a length of 14 gauge electrical wire that I stripped of its insulation as a hinge wire. Fit perfect.

(Edited)

@user_1193536677

my caliper is a bit too long. how can i extend it a bit? what did you use for the hinges?

(Edited)

The designer has replied

@Jallim

You could do it in for example blender or any cad software. Easiest way might be to split in middle, extend and fill the gap.

@user_1193536677

Replying to @Jallim :

thank you!

@user_1556907102

Boosted

I used a piece of stripped 14 gauge electrical wire cut to length and it slid right in the holes for the hinge.

@user_727581449

Boosted

What did you use for hinge pins??

The designer has replied

@Jallim

1.75mm filament

@user_1556907102

Boosted

I used a stripped piece of 14 gauge electrical wire and it slid right in. And looks like it's just gonna stay in there and hinges nicely.

@user_717142600

Print Profile

Lid, 0.2mm layer, 2 walls, 15% infill

amazing print.

@user_4049001151

Print Profile

Bottom, 0.2mm layer, 2 walls, 15% infill

Great design, would be even better if there was a small fixed space for holding the battery.

@SvenLi.

Print Profile

Lid, 0.2mm layer, 2 walls, 15% infill

The top settings are just right

Show original

@Jtlrwells

Boosted

Print Profile

Bottom, 0.2mm layer, 2 walls, 15% infill

An excellent model and print. Didn't fit my model of calipers though. No fault of the designer.

@user_3074352602

Print Profile

Lid, 0.2mm layer, 2 walls, 15% infill

need slight modifications to work with my calipers but overall excellent case!

@N_Insbrok

Print Profile

Bottom, 0.2mm layer, 2 walls, 15% infill

(Edited)

@N_Insbrok

Just to clarify, changed to 5 stars as print profile worked great. Needed to buy super glue (It would be nice if the magnets were press fit), and no suggestion on what you used for hinges, so I have found my own solution.
