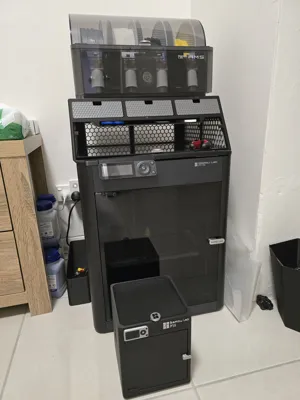

Introducing the P1P & P1S 3 Drawer storage unit with working door.

The grey door print profile is for the P1P unit and the clear door print profile is for the P1S unit.

Under the top lid is 128.5mm x 130mm by 27mm deep.

Each of the 3 drawers' inner diameter is 114mm x 129mm by 36.8mm deep.

The 2 door hinges top and bottom need to be in the right orientation it's easy to tell if they are not the hinge will hit the side of the model and not fully open if this is the case reverse them. Install the hinges first then slide the door into them leave a little gap so it doesn't hit the sides shut the door and you can adjust it side to side to even the gap door fits tight so no need to glue or anything it will not move around on you. I have added both door and hinge together and separated if you want to give the door that (glass look) the file is in raw files and the P1S version. I have printed the door in transparent in one of these models you can see in the picture. If you want that look, I printed it with 12 walls 0 infill and 0 top layers.

Hope you all like and Happy Printing

Thanks for looking.

For the AMS storage unit to sit on top https://makerworld.com/en/models/1087333#profileId-1080291
