Here is a collection of handy attachments for the Dum-E desk helper. All are simple to connect to the wrist, requiring only a single M3x10mm countersunk screw to secure. I aim to publish more adapters and attachments as time goes on. Let me know if there's anything in particular you would like to see made available.



Included are the following

Phone stand

Business card holder

Elastic band powered gripper

Logitech c920 Webcam clamp

Lamp attachment



Required for assembly

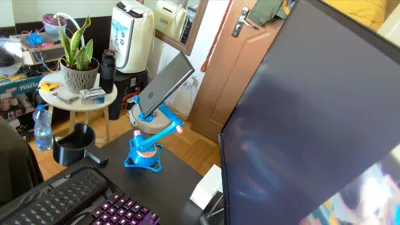

Phone stand

Print stand parts 1x Backing and Bottom. Recommend 20-30% infill for both. No supports.

Screws required: 2 M3x10mm countersunk screws.



Business card holder

Print card holder parts 1x left arm, right arm, backing and base. Recommend 20-30% infill for each. No supports.

Screws required:

2x M2.5x8mm countersunk screws.

2x M3x10mm countersunk screws.



Webcam mount for Logitech C920

Print webcam mount parts A and B. Recommend 20-30% infill for both. No supports.

Screws required:

2x M3x10mm countersunk screws.



Gripper attachment

Parts to print:

Gripper left x 1

Gripper right x 1

Gripper frame x 1

Gripper connecting arm x 8

Recommend 30% infill, no supports.

Screws required:

16x M3x8mm countersunk screws.

1x small elastic band (if you want it to function) This slots into groves on the sides of the arms.



Desk Lamp Attachment

Parts to print:

1xLamp attachment

1xBambulab LED lamp Kit 001

Optional 2x M3x5mm screws

Print at 15-20% infill



Coming soon:

  • Stationary holder.
  • Helping hands for electronics soldering.





Bill of Materials

Maker’s Supply Kits and Parts
Buy Now
Download BOM

Comment & Rating (161)

(0/5000)

Desk Lamp Attachment is great!
The designer has replied
1
Reply
Glad you like it, thanks for the make 🙂
1
Reply
Replying to @NoycePrints :
I am already testing new attachments. I'll send you my prototype :)
1
Reply
Are these the attachments for the lamp?
0
Reply
The print profile is no longer public
perfekt
2
Reply
Hello, may I ask if the font and pattern on your arm are multi-color printed or hand-painted?
Show original
0
Reply
Replying to @user_1517307917 :
multicolor
1
Reply
So cool! Thank you for showing the pictures! Will probably print it!
0
Reply
How could you do that to me? I made one for a colleague, now I've got requests for 7 more. Am I the only one to have trouble locating m3*15 screws? Suggestions, if you are open for it: - Wall mountable (Screw slots in base would probably suffice) - a weight for the base (it tips over, when too far extended, under weight) - hand vise attachment (smaller version of: https://makerworld.com/en/models/31455?from=search#profileId-28008) Anyway, thanks a lot for that great Model <3
(Edited)
The designer has replied
2
Reply
haha sorry about that 😉 the weight idea is a great suggestion, I'll try and incorporate it into a future update. A wall/ desk mount base is coming with screw locating holes soon for the attachments update.
0
Reply
theres a ball vise on printables that uses a space to just add some concrete or rocks/nuts etc as weight, just an idea to look at
0
Reply
Quite hard finding M3 screws where I am. M4 not as common either, but of course M5 is plenty!
0
Reply
The print profile is no longer public
Looks really awesome. I have already tried all the extensions. I’m going to print a whole army :)
1
Reply
Awesome haha, more extensions to come 😉
1
Reply
Print Profile
0.16mm layer, 2 walls, 15% infill
Nice print
0
Reply
Boosted
Print Profile
0.16mm layer, 2 walls, 15% infill
perfetti!
0
Reply

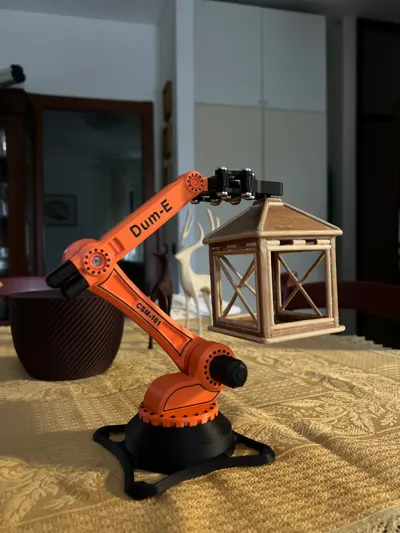

I have assembled the gripper and the lamp Both function perfectly
