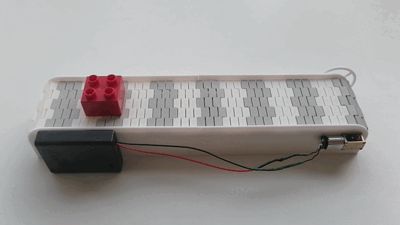

A fully functional Conveyor belt. No external Parts are needed.

Mini Conveyor Belt: (L15cm x W5cm x H3.5cm)
(If you have problems with the pins or the connectors → Scale them down to Y=98-99%)

Easy to assemble
Very variable. You can attach the wheel to each side or even attach 4 wheels to all corners.
Fully functional
Fully 3d printed

New Conveyor Belt:
(If you have problems with the pins or the connectors → Scale them down to Y=98-99%)

Easier to assemble than the old version with more stability
Very variable. You can attach the wheel to each side or even attach 4 wheels to all corners.
Fully functional
Fully 3d printed
30 cm long in the standard version (For 30cm you need 84x chain links.)
15 cm Extension + the chainlinks (multiplicable)

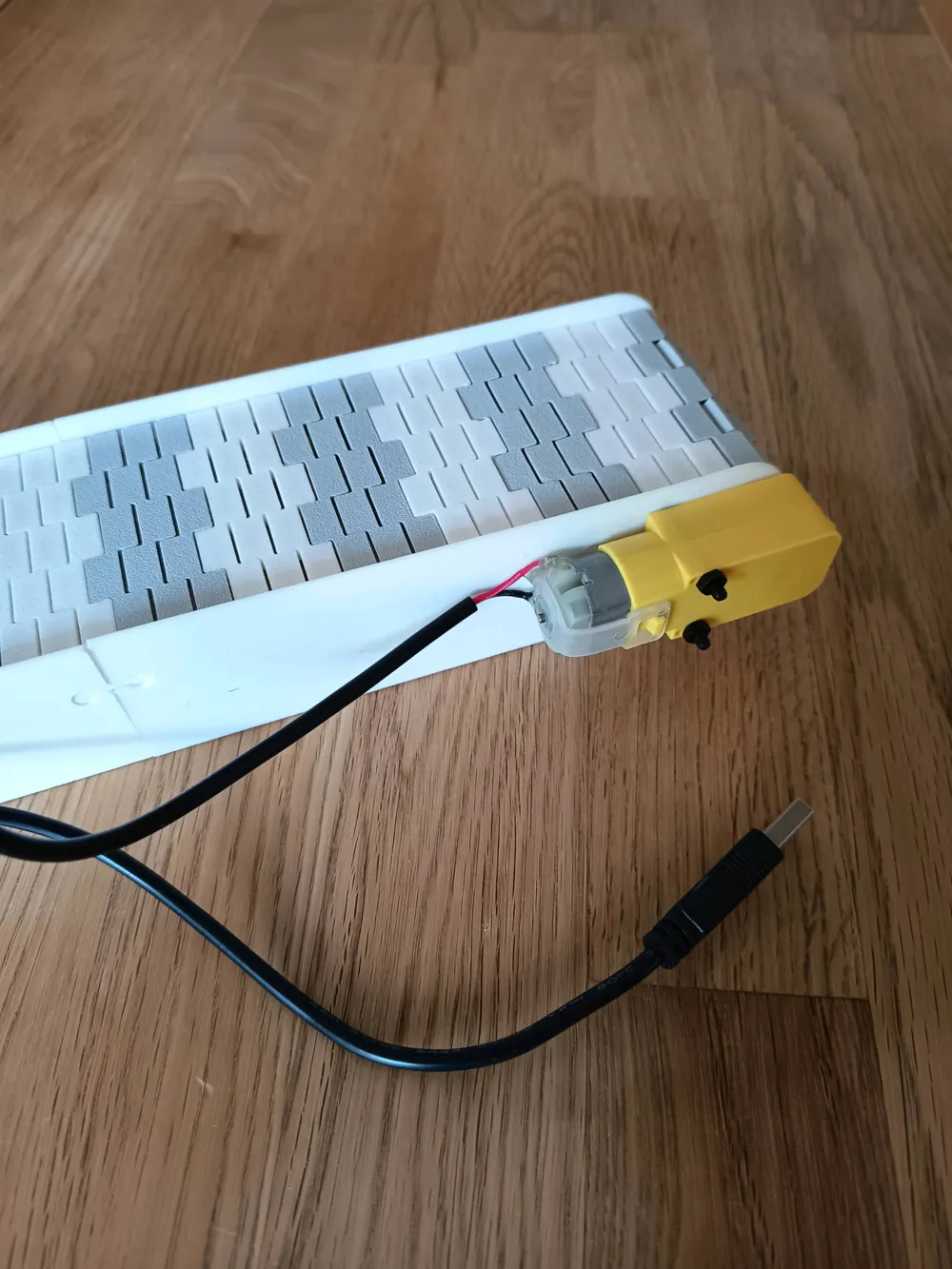

Gear Motor Upgrade
Bill of Materials:
Motor: https://eu.store.bambulab.com/products/n20-single-shaft-worm-gear-motor
Cable: https://eu.store.bambulab.com/products/50mm-ph2-0-to-sh1-0-conversion-wire
Battery-Case: https://eu.store.bambulab.com/products/battery-case-with-ph2-0-connector
Alternate for battery-case: https://eu.store.bambulab.com/products/usb-a-power-cable-with-ph2-0-connector

Old Conveyor Belt: (Still as download available)

Very variable. You can attach the wheel to each side or even attach 4 wheels to all corners.
Fully functional
Fully 3d printed
30 cm long (For 30cm you need 84x chain links.)
15 cm Extension + the chainlinks (multiplicable)
Added new chain links, which are easier to assemble (Plate 09 + 10)
Gear Motor Upgrade
Bill of Materials:
Motor: https://eu.store.bambulab.com/products/n20-single-shaft-worm-gear-motor
Cable: https://eu.store.bambulab.com/products/50mm-ph2-0-to-sh1-0-conversion-wire
Battery-Case: https://eu.store.bambulab.com/products/battery-case-with-ph2-0-connector
Alternate for battery-case: https://eu.store.bambulab.com/products/usb-a-power-cable-with-ph2-0-connector

Assembling:

New instructions will follow shortly

Documentation (1)

Assembly Guide (1)

Conveyor belt assembly.pdf

Bill of Materials

Maker’s Supply Kits and Parts

N20 Single Shaft Worm Gear Motor 25rpm (1PCS) - LA008

B-LA008

7.49 USD

× 1

50mm PH2.0 to SH1.0 Conversion Wire (2PCS) - XC004

B-XC004

0.89 USD

× 1

AAA Battery Case with PH2.0 Connector (1PCS) - IA004

B-IA004

1.99 USD

× 1

USB-A Power Cable with PH2.0 Connector (1PCS) - IC001

B-IC001

1.99 USD

× 1

Bambu Filaments

Ivory White

A01-W2-1.75-1000-SPLFREE

19.99 USD

× 1

Ash Gray

A01-D3-1.75-1000-SPLFREE

19.99 USD

× 1

Buy Now

Download BOM

Comment & Rating (79)

@KiJaKo

Boosted

Is it possible to get CAD files? Because i want to make a version for A1 mini, when the bed moves in the back end position, it triggers a mechanism that always moves the belt for a few cm. I think it would be pretty nice because you don't need a motor anymore, but i don't want to make a completely new model.

The designer has replied

@Knispel

That is a really cool idea. I only drew very little. I simply mirrored and duplicated most of it. I'll see what I can export with my free version of Fusion 360.

(Edited)

@Knispel

I have added a .step file to the download area. Good luck with your project.

@KiJaKo

Boosted

Replying to @Knispel :

Thanks, I've got here the first update: I have finished the most of the CAD work and printed out the first prototype, but one piece failed it's function. But I think it should be finished on friday, because I am in the school till friday and can't work on it.

@user_2316991225

Very cool!

@user_1698878703

Printed very well on my A1 mini. The new chain links are very easy to assemble. It would be really nice if you can provide a half length/width model for those who just want to try the concept but not spend too much time and filament printing it.

The designer has replied

@Knispel

That's a really good idea. It's now on my to-do list. But it will take some time. Thank you for the feedback.

@Knispel

I have added a mini conveyor belt (L15cm x W4.8cm x H3.5cm)

@user_1698878703

Replying to @Knispel :

That's so cute! Since it's only 15cm long now, maybe the side panels can be made into one piece instead? It can fit the plate of A1 mini. No need to join two pieces together.

@j4velin

Boosted

Great print, my kids love it

@SteamojiMT

Boosted

Print Profile

New Conveyor Belt (30cm) + Extension (15cm)

super nice, I used it for my p1s poop dispenser

@mike_o

Boosted

For the "Gear motor upgrade" version, what screws are you using/do you suggest for holding the motor in place? The motor specs appear to show a 1.5mm hole and a width of 10mm, so the screw would need to be smaller than 1.5mm (m1.4) and longer than 10mm (12-15mm). Any suggestions?

The designer has replied

@Knispel

I used the screws that came with the BambuLab motor LA008 >> 1.5 mm x 5.4mm

@Knispel

Maybe the pictures will help you. The screw may be up to 10mm long.

(Edited)

@mike_o

Boosted

Replying to @Knispel :

Interesting and good to know. Mine didn't come with any screws (that's why I asked). I'll have to re-check the box & packing material, but they're so small they could have easily fallen out and nobody would notice.

@user_4276874514

this is crap not worth 16 hours DO NOT PRINT

The designer has replied

@Knispel

That's your third unobjective comment. Do you have anything useful to say, that I can improve the model, or are you just trolling?

(Edited)

@user_4276874514

Replying to @Knispel :

nothing fits to get her that is my problem

@Knispel

Replying to @user_4276874514 :

I am sorry to read that. The conveyor belt is very difficult to assemble. I would agree to that. I published new chain links that are easier to assemble. But if you look to the comments, you can see a few pictures from other people where the conveyor belt ist assembled. Thank you for deleting your bad rating. If you need help or larger tolerances, just tell me. I try to help where I can.

(Edited)

@TEXAS_GUY

Print Profile

New Conveyor Belt (30cm) + Extension (15cm)

it brok

@Knispel

Sorry to hear. Where and how is it broke?

@TEXAS_GUY

Replying to @Knispel :

the conectonis points snapped

@Knispel

Replying to @TEXAS_GUY :

This also happened to me once when I disambled the conveyor belt.

@bolanosg.juan

Boosted

love it. i find that using tape for assembly makes it a lot easier. Any chance you have a roller that can accept a small servo motor ?

The designer has replied

@Knispel

Thank you for the boost and dor the tip with the tape for assembly. I will create a small adapter for using it with a servo motor. Give me just a few days time for it. >> You are mean a servo motor like it will be used for 3d printing (z-axis)?
